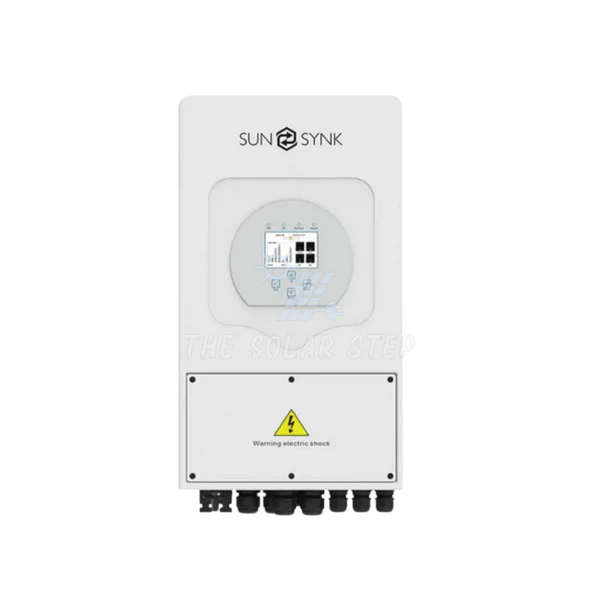

SunSynk 8.8KVA/ 8000W Hybrid Inverter 48V / Dual MPPT + WiFi

SunSynk 8.8KVA/ 8000W Hybrid Inverter 48V / Dual MPPT + WiFi

Description:

The SunSynk 8.8KVA Hybrid Inverter is a versatile and high-efficiency power management solution, designed for off-grid, grid-tie, and hybrid solar energy systems. It optimizes energy usage by managing power from solar panels, the grid, and generators, ensuring efficient energy storage and distribution.

With dual MPPT trackers, a maximum PV input of 10,400W, and 48V battery compatibility, this inverter delivers stable and reliable power for residential and commercial applications. It also features WiFi connectivity for real-time monitoring and control via a mobile app.

Key Features:

• 8.8KVA / 8000W Hybrid Inverter Ideal for off-grid, hybrid, and grid-tie systems.
• Dual MPPT Solar Controllers Supports up to 10,400W PV input for efficient solar conversion.
• Battery Compatibility Works with Lead-Acid and Lithium-ion (Li-ion) batteries.
• Automatic UPS Function Seamless switch to backup power during outages.
• Configurable Charging Modes Customizable battery, solar, and generator charging priorities.
• Time-of-Use Function Optimizes energy consumption based on peak and off-peak rates.
• Smart Load Management Reduces dependency on the grid and optimizes battery performance.
• Overload & Short-Circuit Protection Ensures system reliability and safety.
• IP65 Protection Dustproof and waterproof for indoor and outdoor installation.
• WiFi Monitoring Remote tracking of system performance via the SunSynk app.
• Wall-Mounted Design Space-saving and easy to install.

Technical Specifications:

Solar Input (PV Charging)

• Maximum PV Power: 10,400W
• Rated DC Power: 8,000W
• Maximum DC Voltage: 500V
• MPPT Voltage Range: 125V - 425V
• Start-Up Voltage: 150V
• MPPT Input Lines: 2+2

Battery Specifications

• Battery Type: Lead-Acid / Lithium-Ion
• Battery Voltage: 48V

AC Output & Grid Interaction

• Rated AC/DC & Reserve Power: 8,800W
• Maximum AC Power: 8,000W
• Peak Power (Off-Grid): 1.5x Rated Power (for 10s)
• AC Output Voltage Range: 230V AC
• Off-Grid Output Frequency: 45-55Hz / 55-65Hz
• AC Voltage Tolerance: 180V - 270V AC / 230V ±2%

Communication & Monitoring

• Battery Communication Protocols: RS485 / CANBUS
• WiFi Connectivity: Yes (Included WiFi Dongle)

Physical & Environmental

• Protection Rating: IP65 (Weatherproof)
• Mounting Style: Wall-Mounted
• Color Finish: Powder Coated (Cream / Siemens Grey)
• Dimensions (L x W x H): 670mm x 420mm x 233mm
• Weight: 32kg

What's in the Box:

• 1 x SunSynk 8.8KVA Hybrid Inverter
• 1 x WiFi Monitoring Dongle
• 1 x User Manual

Installation & Warranty:

• 5-Year Manufacturer Warranty
• Professional Installation Required Must be installed by a qualified electrical wireman or master electrician.
• Valid Certificate of Compliance (COC) Required Installation must comply with SANS 10142 standards.
• Warranty Claims Must include installation photos, a valid COC, and proof of a qualified installer.
