SUNSYNK 8kW Bundle
Sold

SUNSYNK 8kW Bundle

10 were available / new
Indicative market price: R140,000.00
R85,000.00
39% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Returns
Warranty Type: Manufacturer Limited Product Warranty Money-Back Guarantee: 7 Days: Unused and Unopened packages only

Product details

Condition
New
Location
South Africa
Input Voltage
48V DC
Type
Pure Sine Wave
Bob Shop ID
592673485

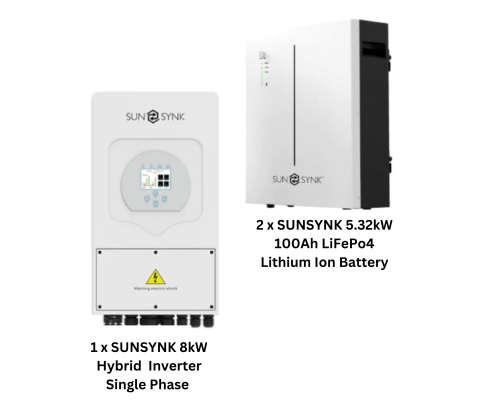

  • SUNSYNK 8kW Hybrid Parity Inverter (1 Phase) SUNSYNK-8K- SG01LP1
  • 2 x SUNSYNK 5kW 100Ah LiFePo4 Lithium Ion Battery SUN-BATT-5.32
    Full product installation and certification included.

Specifications

SUNSYNK 8kW Hybrid Parity Inverter ( 1 Phase)

  • SUNSYNK 8kW Hybrid Parity Inverter (1 Phase) SUNSYNK-8K- SG01LP1
  • Model SUNSYNK-8K- SG01LP1
  • The Synsynk Hybrid Parity Inverter is a Highly Efficient Power Management Tool.
  • Manages Power Flow from multiple sources such as Solar, Main Electrical Grids & Generator, then effectively storing & releasing electric power as the utilities require.
  • Easy & Simple to Understand Display.
  • Wi-Fi & GSM monitoring supported.
  • Equipped with Visual power flow screen.
  • Built-In 2 strings of MPP trackers.
  • Smart settable 3-stage MPPT charging optimized battery performance.
  • Auxiliary load function.
  • Parallel/multi invert function grid-tied & off-grid.
  • Grid Type: Split Phase, 2/3 Phase, Single Phase
  • Protection Degree: IP65
  • Noise Level: <30dB
  • Maximum Charge & Discharge Current: 190A
  • Battery Charging Strategy: Self-Adaptation to BMS
  • Maximum DC Input Power: 10400W
  • MPPT Range: 125-425V
  • Start-up Voltage: 150V
  • AC Output & UPS Power: 8000W
  • Maximum AC Power: 8800W
  • AC Output Rated Current: 33.4A/35A
  • Maximum AC Output Current: 38.3A/40A
  • Maximum Efficiency: 97.60%
  • MPPT Efficiency: 96.50%
  • Battery Type: Lead-acid or Lithium-ion (Not Included Sold Separately)
  • Battery Voltage Range: 40-60V
  • Communication with BMS: CAN/RS485
  • Fan Cooling
  • Operation Temperature: -25°C to 60°C
  • Installation Type: Wall Mounted.
  • Maximum Altitude: 4000m
  • Weight: 32Kg
  • Dimensions (L x W x H): 670 x 420 x 233 mm
  • Refer To Brochure For Detailed Product Specifications.
  • 10 Year Limited Product Warranty.

SUNSYNK 5kW 100Ah LiFePo4 Lithium Ion Battery

  • Cell Type - Lithium Ferro Phosphate (LifePO4 or LFP)
  • Nominal Operating Voltage - 51.2V
  • Nominal Capacity - 100Ah / 5.12kWh
  • Depth of Discharge (DoD) - 100%
  • Usable Capacity - 5.12kWh
  • Packing - 1P16S
  • IP Rating - IP40
  • Minimum Operating Voltage - 44.8V
  • Maximum Operating Voltage - 57.6V
  • Standard Charging Current - 50A
  • Continuous Charging Current - 50A
  • Standard Discharging Current - 50A
  • Continuous Discharging Current - 100A (1C, 25 C 2 C)
  • Pulse Discharging Current - 200A (2C, 30S, 25 C 2 C SOC 40%)
  • 10 Year Limited Product Warranty.
