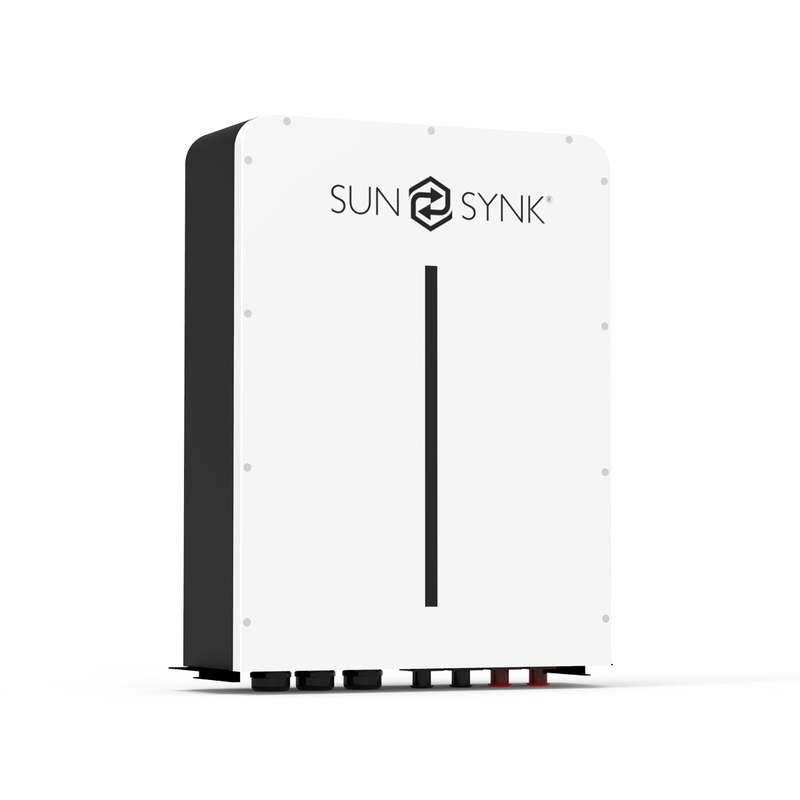

Sunsynk Battery LFP Wall Mount 5.12kWh 51.2V IP65

Sunsynk Battery LFP Wall Mount 5.12kWh 51.2V IP65

10 available / new
R25,930.26
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
SS-BAT-05-WM-LFP-IP65
Bob Shop ID
620367935


The series is especially suitable for applications of high power, limited installation space, restricted load-bearing and long life cycle. The battery has a built-in management system, which can manage and monitor cell information, including voltage, current and temperature. What's more, BMS can balance cell charging and discharging to extend cycle life.

Multiple batteries can connect in parallel to expand capacity and power for larger capacity and longer power supporting duration requirements.



Battery ChemistryLiFePO4
Capacity (Ah)100
ScalabilityMax 32 pcs in parallel (163.8kWh)
Nominal Voltage51.2
Operating Voltage43.2 - 57.6
Energy (kWh)5.12
Usable Energy (kWh) [1]4.61
Charge / Discharge Current (A)Recommend [2]
Max [2]
Peak [2 mins, 25°C]
50
100
150
Recommend Depth of Discharge90%
Dimension (w/h/d) mm440 x 640 x 140
Weight Approximate (kg)50
Master LED Indicator5 LED (20%-100%)
3 LED (working, alarming, protecting)
IP Rating of EnclosureIP65
Working TemperatureCharge: 0°C - 55°C
Discharge: -20°C - 55°C
Storage Temperature0°C - 35°C
Humidity5% - 95%
Altitude2000m
Cycle Life6000 (25±2°C, 0.5C, 70%EOL)
InstallationWall Mounted or 19-inch standard cabinet
Communication PortCAN2.0, RS485
Warranty Period [3]5 years
Life Cycle Power During Warranty Period [3]16MWh@70%EOL
CertificationIEC62619, CE, UN38.3



[1] DC Usable Energy, test conditions: 90% DOD, 0.5C charge & discharge at 25°C. System usable energy may vary due to system configuration parameters.
[2] The current is affected by temperature and SOC.
[3] The warranty is due whichever reached first of warranty period or life cycle power.



Sunsynk_IP65 Battery
