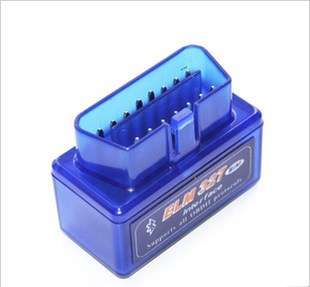

This ELM327 suport TORQUE software for Android system cell phone,OBDscope software for Symbian system cell phone,PPC(Windows Mobile) system cell phone,ScanMaster-ELM for PC etc.
Project Bluetooth password: 1234
Software Version: V2.1
Features:
0.Automatic
1. ISO9141-3 (5 baud init, 10.4Kbaud)
2. ISO14230-4 (5 baud init, 10.4 Kbaud)
3. ISO15765-4 CAN (11bit ID, 500 Kbaud)
4. ISO15765-4 CAN (29bit ID, 500 Kbaud)
5. ISO15765-4 CAN (11bit ID, 250 Kbaud)
6. ISO15765-4 CAN (29bit ID, 250 Kbaud)
7. KWP2000 5 10.4 Kbaud
*default settings(user adjustable)
1.Works with all OBD-II compliant vehicles
2.Wireless (Bluetooth) 5~10 meter
3.Software included for Palm, PDA,Mobile
4.Software included for Windows PC
5.Software included for Windows Smartphone
Functions:
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data, including:
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13.Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17.Fuel System status
18.Fuel Pressure
19.Many others...
For your information:
For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.

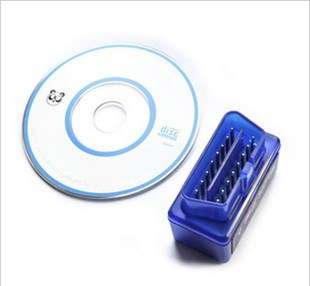

Software Included:
Scantool_net113win (Full Version)
EasyOBDII V2.2 (Full Version)
OBD2Spy (Demo Version)
ScanMaster-ELM (Demo Version)
wOBDCRAZY (Demo Version)
TORQUE (Android system cell phone)
OBDscope software (Symbian system cell phone)
This hardware can match many other software still! But most are not free.
The ELM327 supports Multi-Brand Cars, but it doesn't work with all cars, and also we cannot test the car one by one. You can buy one for test.
