No Harddrives.

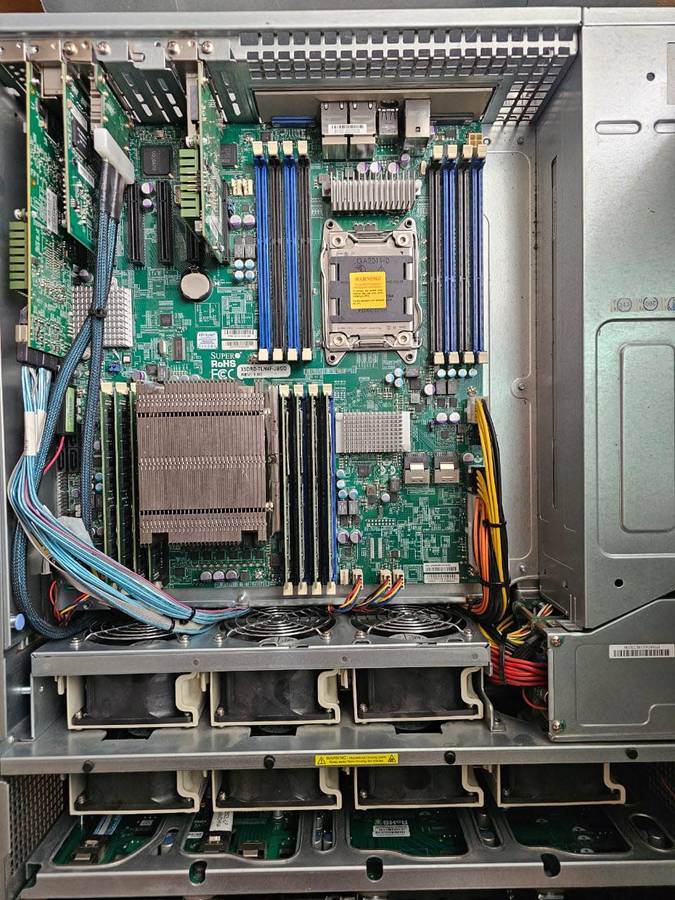

Motherboard:

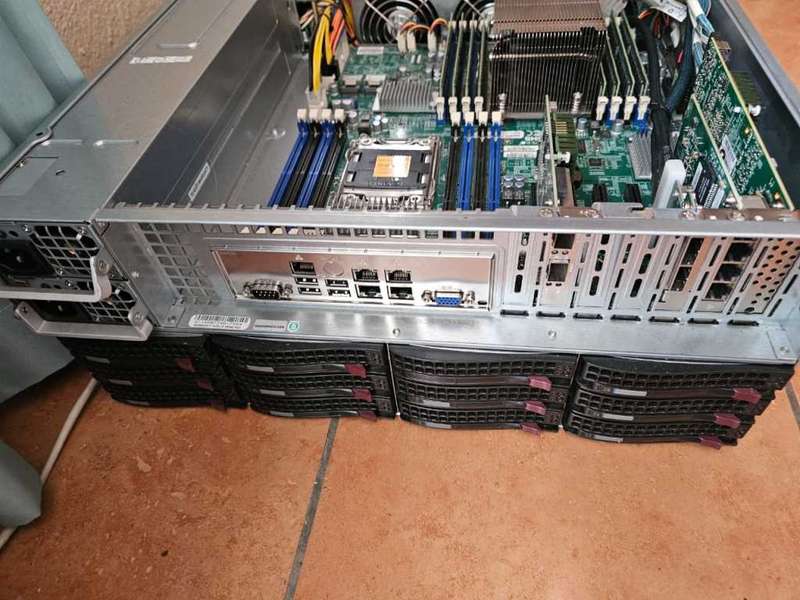

The 6047R-E1CR36L is a high-end storage system comprised of two main subsystems: the SC847BE1C-R1K28LPB 4U/rackmount chassis and the X9DRD-EF dual processor serverboard
Supermicro X9DRD-7LN4F(-JBOD)/X9DRD-EF

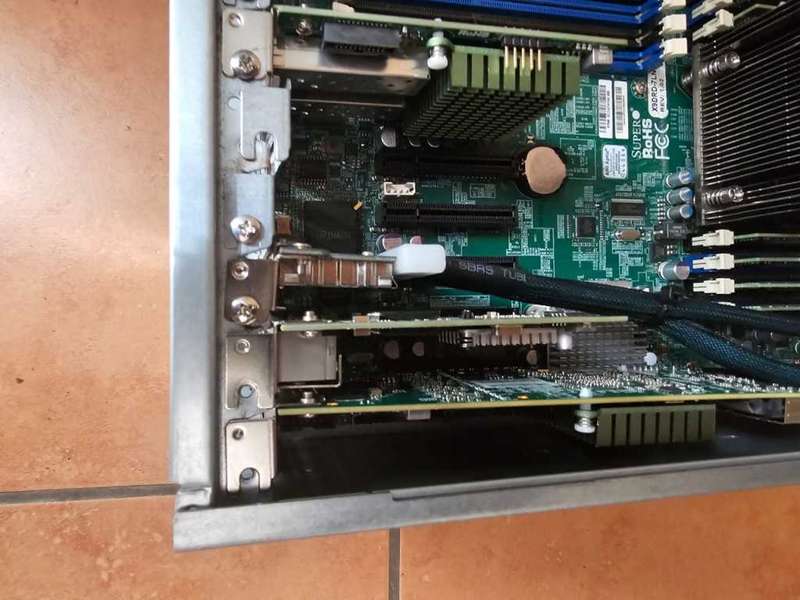

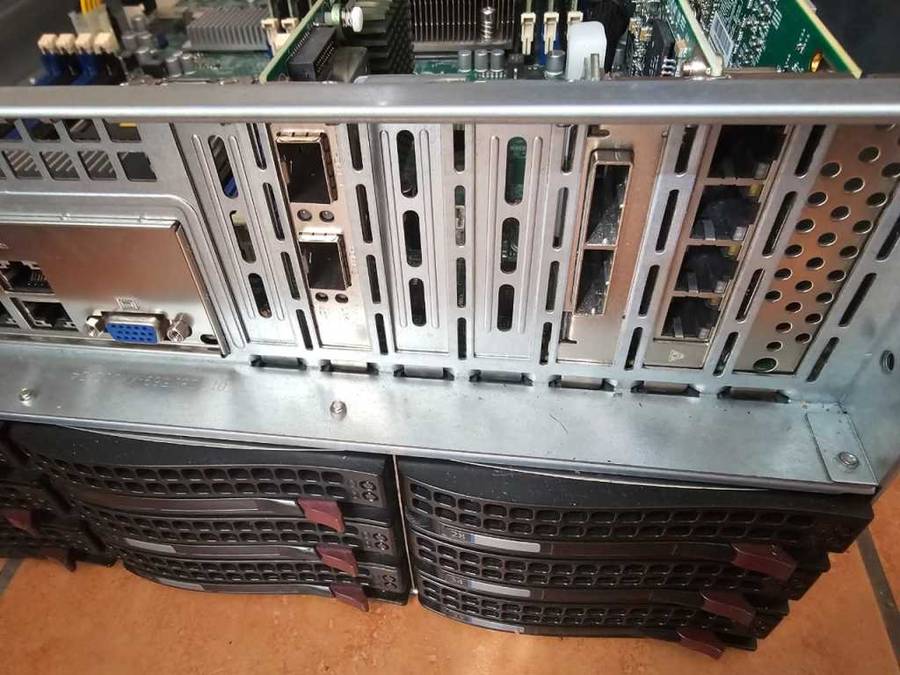

6 X PCI-E 3.0 x8 slots
CPU:
2,50 gigahertz Intel Xeon E5-2609 v2
256 kilobyte primary memory cache
1 megabyte secondary memory cache
10 megabyte tertiary memory cache
64-bit ready
Multi-core (4 total)
Not hyper-threaded
Single Or Dual IntelĀ® Xeon E5-2600 (v2) Series Processors
Memory:
63,97 Gigabytes Usable Installed Memory
16 DIMM slots that can support up to 1 TB of Load Reduced (LRDIMM), 512 GB of Registered (RDIMM) or 128 GB of Unbuffered (UDIMM) ECC/ Non-ECC DDR3-800/1066/1333/1600/1866 memory. Two CPU's needed.
Network:

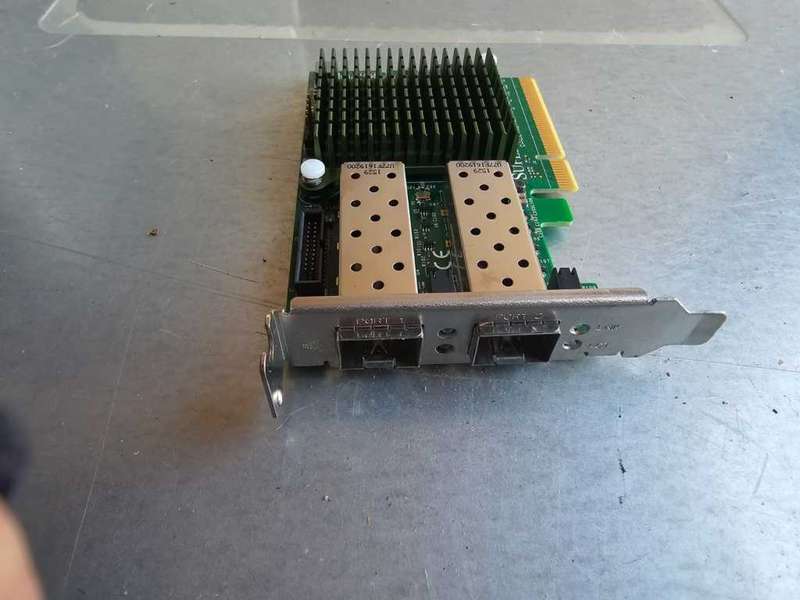

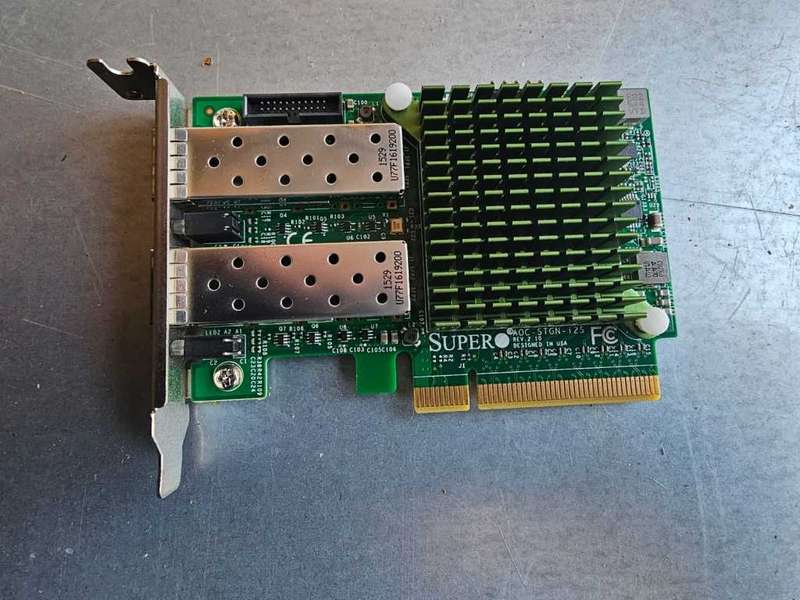

2 X Intel(R) 82599 10 Gigabit Dual Port Network Connections

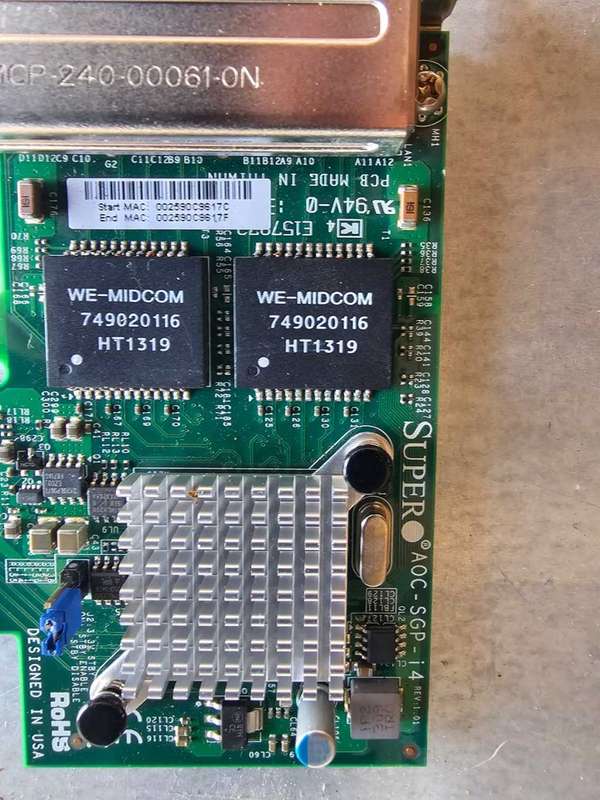

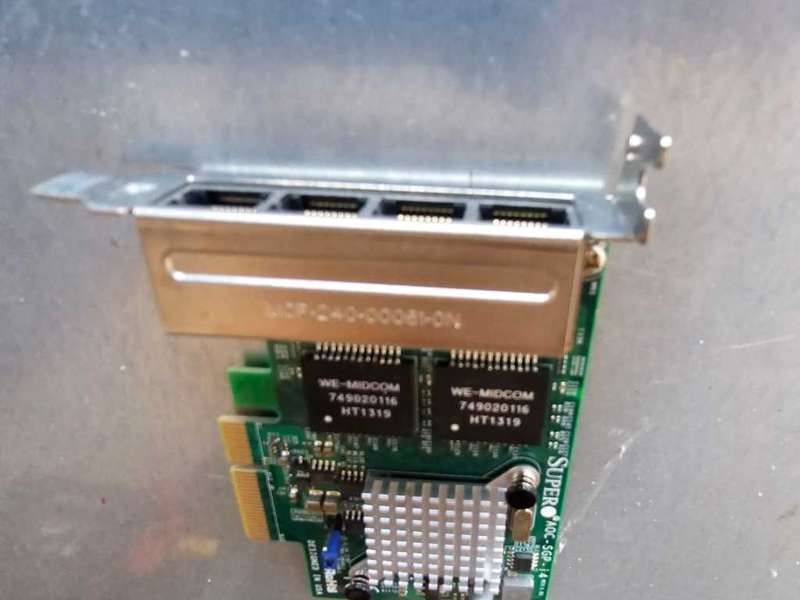

4 X Intel(R) I350 Gigabit Network Connections
Storage:
An AOC-S3008L-L8E disk controller is installed in the system to provide x8 lane
SAS3/SATA3 connectivity to all 36 drive bays.

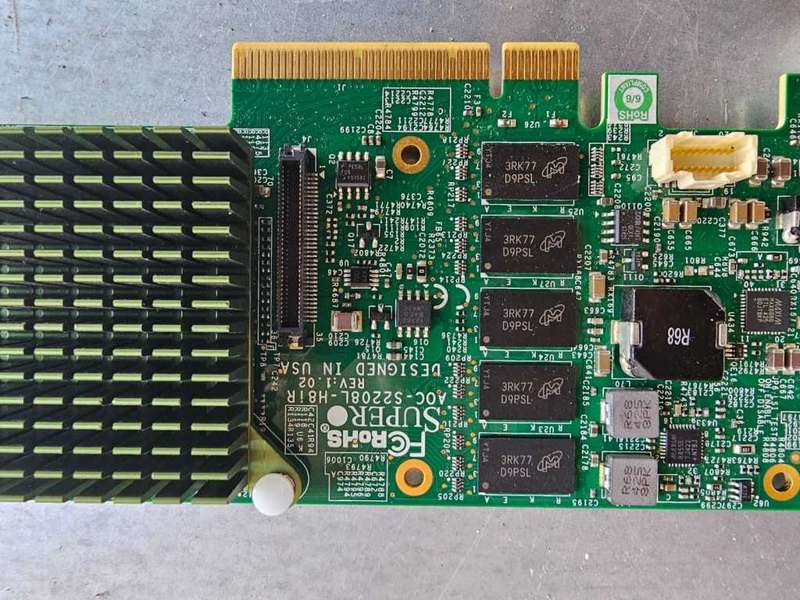

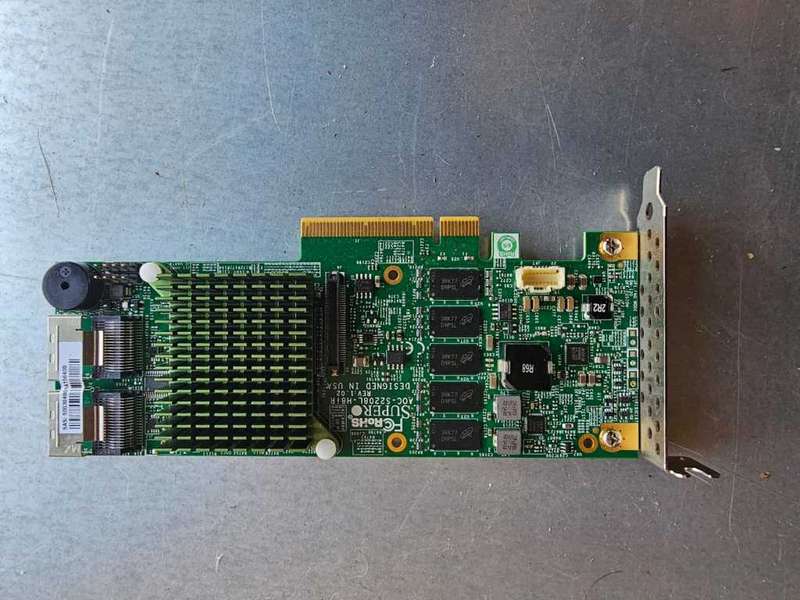

AOC-S2208L-H8iR Supermicro Add On RAID controller.
RAID 0, 1, 5, 6, 10, 50, 60
Product Specs:
https://www.artisantg.com/info/Supermicro_AOC_S2208L_H8iR_Manual_2018111511167.pdf

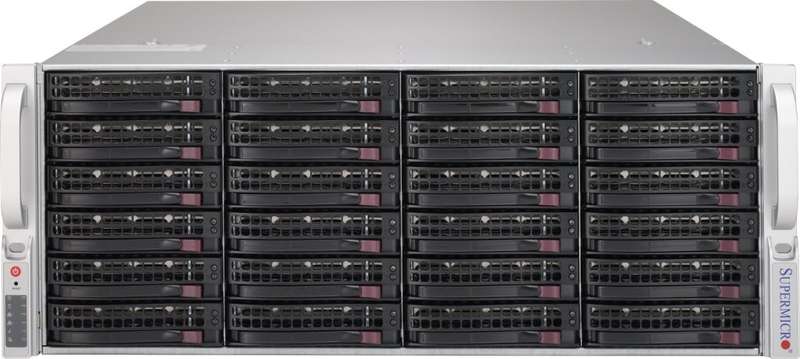

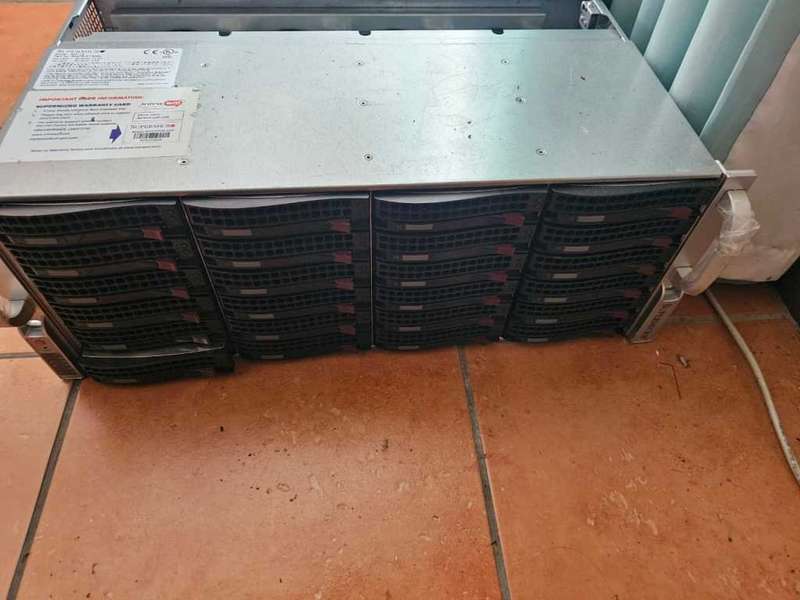

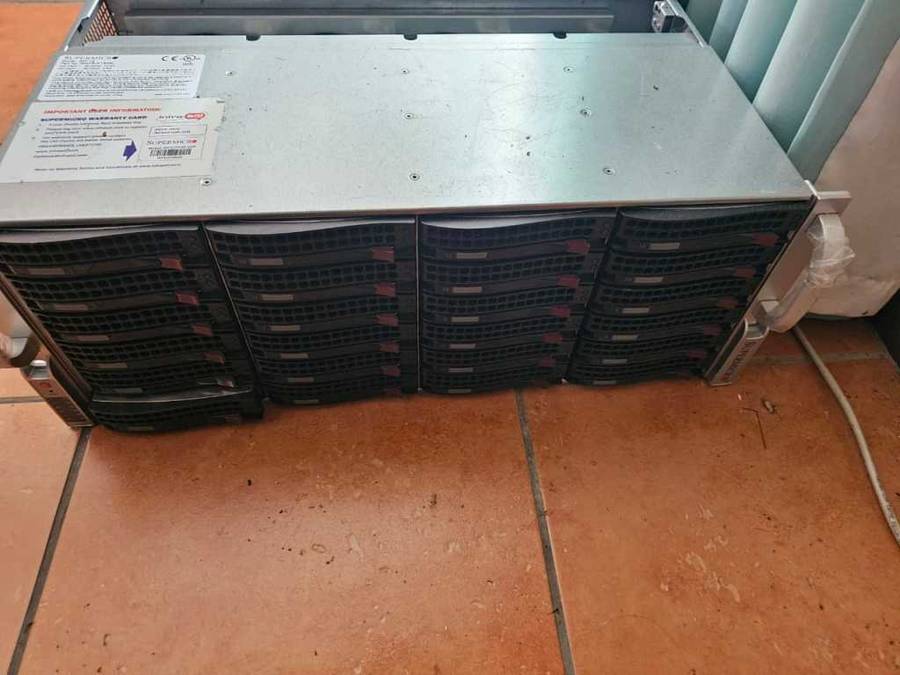

36 X Total Drive Bays

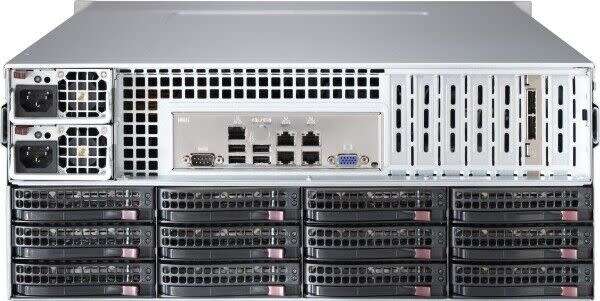

24 In Front, 12 In Rear
All SAS/SATA Bays are Hot-Swappable
All Drive Caddies are present.
No Harddrives.
Power:
2 X 1280W Redundant Power supplies.
WARNING: Plug in both power supplies else the server will give pre boot error beep.
Product Specs:
https://www.supermicro.com/manuals/superserver/4U/MNL-6047R-E1CR36L.pdf
