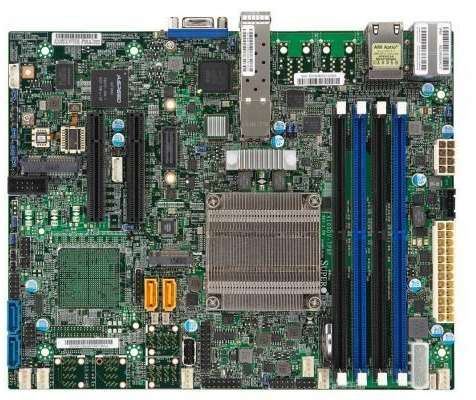

SuperMicro X10SDV-2C-TP4F Motherboard, SoC Pentium D1508 2.2GHz Dual Core, 4x DIMM ECC-REG, Dual LAN with 10G SFP+ from D-1500 SoC, Aspeed AST2400 bmc Graphics, 4x SATA3 (6Gbps) Port SATA, 2x 1GbE LAN ports, 1x RJ45 dedicated IPMI LAN Port, 5x USB 2.0 ports (4 headers / 1 Type-A), 2x USB 3.0 ports (2 rear), 1x VGA Port, 1x Com Port, 2x PCI-e 3.0 x8, M.2 PCI-e 3.0 x 4
Overview:
Intel Pentium processor D1508, Single socket FCBGA 1667; 2-Core, 4 Threads, 25W
Up to 128GB ECC RDIMM DDR4 1866MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
2 PCI-E 3.0 x8, Mini PCI-E (mSATA support), M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280/22110
2 10G SFP+ and 2 GbE LAN
4 SATA3 (6Gbps) ports via SoC
2 USB 3.0 ports (rear), 5 USB 2.0 ports (4 via headers, 1 Type A)
2 SuperDOM, 1 COM, TPM 2.0 header, GPIO and SMbus headers
12V DC Input and ATX Power Source
Specifications:
Product Code MBD-X10SDV-2C-TP4F
Product SKUs
MBD-X10SDV-2C-TP4F X10SDV-2C-TP4F
Physical Stats
Form Factor Flex ATX
Dimensions 9.0" x 7.25" (22.86cm x 18.42cm)
Processor/Cache
CPU Intel Pentium Processor D1508.
Socket FCBGA1667 supported, CPU TDP support 25W
Cores / Cache 2 cores, 4 threads / 3MB cache
System Memory
Memory Capacity 128GB Registered ECC RDIMM, DDR4-2133MHz64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots
Memory Type 1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes 4GB, 8GB, 16GB, 32GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset System on Chip
SATA SoC controller for 4 SATA3 (6 Gbps) ports, RAID 0,1,5,10
RSTe
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controllers Dual LAN with 10G SFP+ from D-1500 SoC
Dual LAN with 1GbE with Intel I210
Graphics Aspeed AST2400 BMC
Input / Output
SATA 4 SATA3 (6Gbps) port
LAN 2 10G SFP+ LAN ports
2 1GbE LAN ports
1 RJ45 Dedicated IPMI LAN port
USB 5 USB 2.0 ports (4 headers, 1 Type A)
2 USB 3.0 ports (2 rear)
Video Output 1 VGA port
Serial Port / Header 1 COM Port (1 header)
TPM TPM Header
Expansion Slots
PCI-E 2 PCI-E 3.0 x8
M.2 PCI-E 3.0x4, M Key 2242/2280/22110, Mini-PCI-E with mSATA support
M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2242/2280/22110
Key: M-Key
System BIOS
BIOS Type 128Mb SPI Flash with AMI BIOS
BIOS Features PCI 3.0
ACPI 5.0
USB Keyboard support
SMBIOS 2.8
UEFI 2.4
RTC (Real Time Clock) Wakeup
Management
Software Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor 5, Watchdog
Power Configurations ACPI Power Management
ATX Power connector
+12V DC Power Input
Control of power-on for recovery from AC power loss
CPU thermal trip support for processor protection
M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL
PC Health Monitoring
Voltage +1.8V, +12V, +3.3V, +5V, 1.2V (VDIMM), Chassis intrusion header, System level control, VBAT
FAN 6x 4-pin fan headers (up to 6 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, System level control
Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
LED CPU / System Overheat LED
Other Features 12V DC or ATX Power Source, Chassis intrusion detection, Chassis intrusion header, RoHS
Operating Environment
Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
