Surge Protective Device 2P 1000V Surge Protective Device 2P 1000V Surge Protective Device 2P 1000V Surge Protective Device 2P 1000V
Surge Protective Device 2P 1000V Surge Protective Device 2P 1000V Surge Protective Device 2P 1000V Surge Protective Device 2P 1000V
Sold

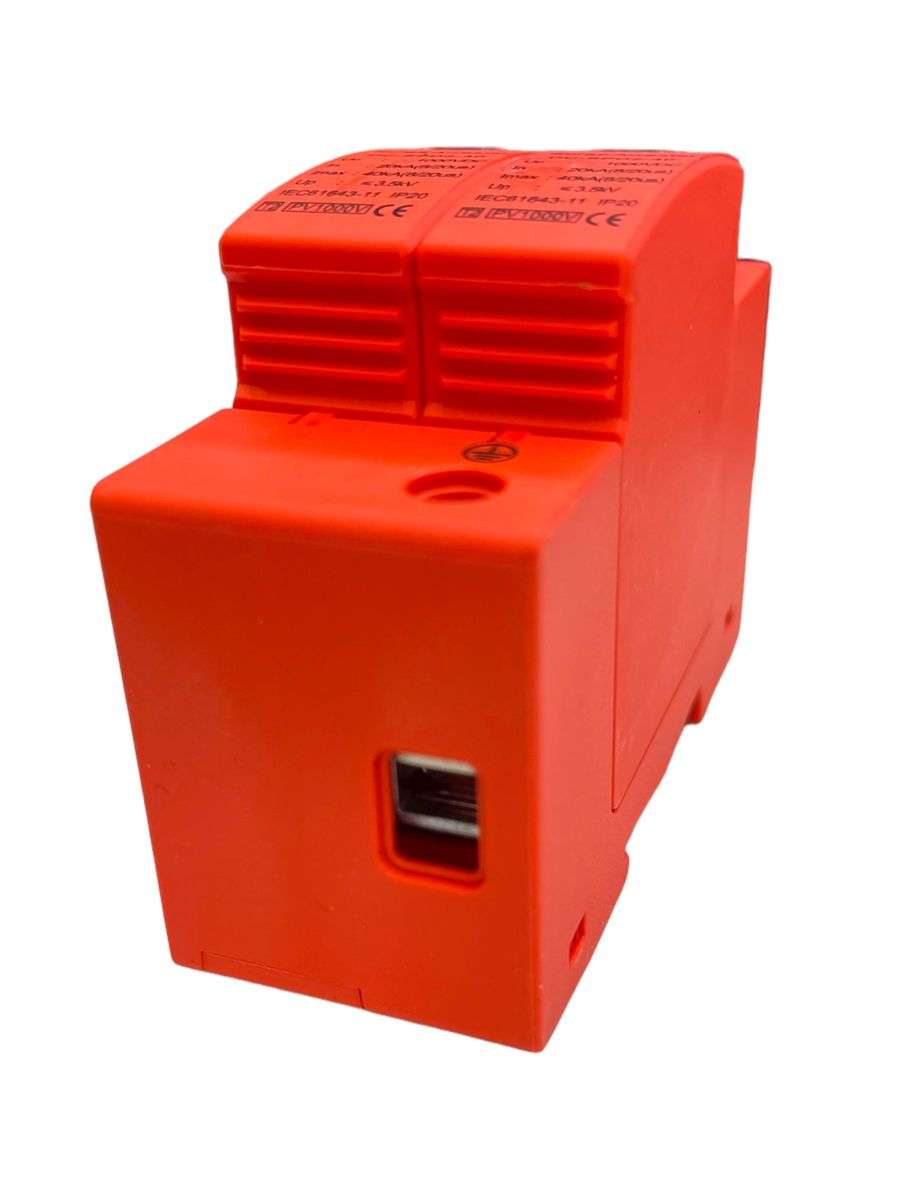

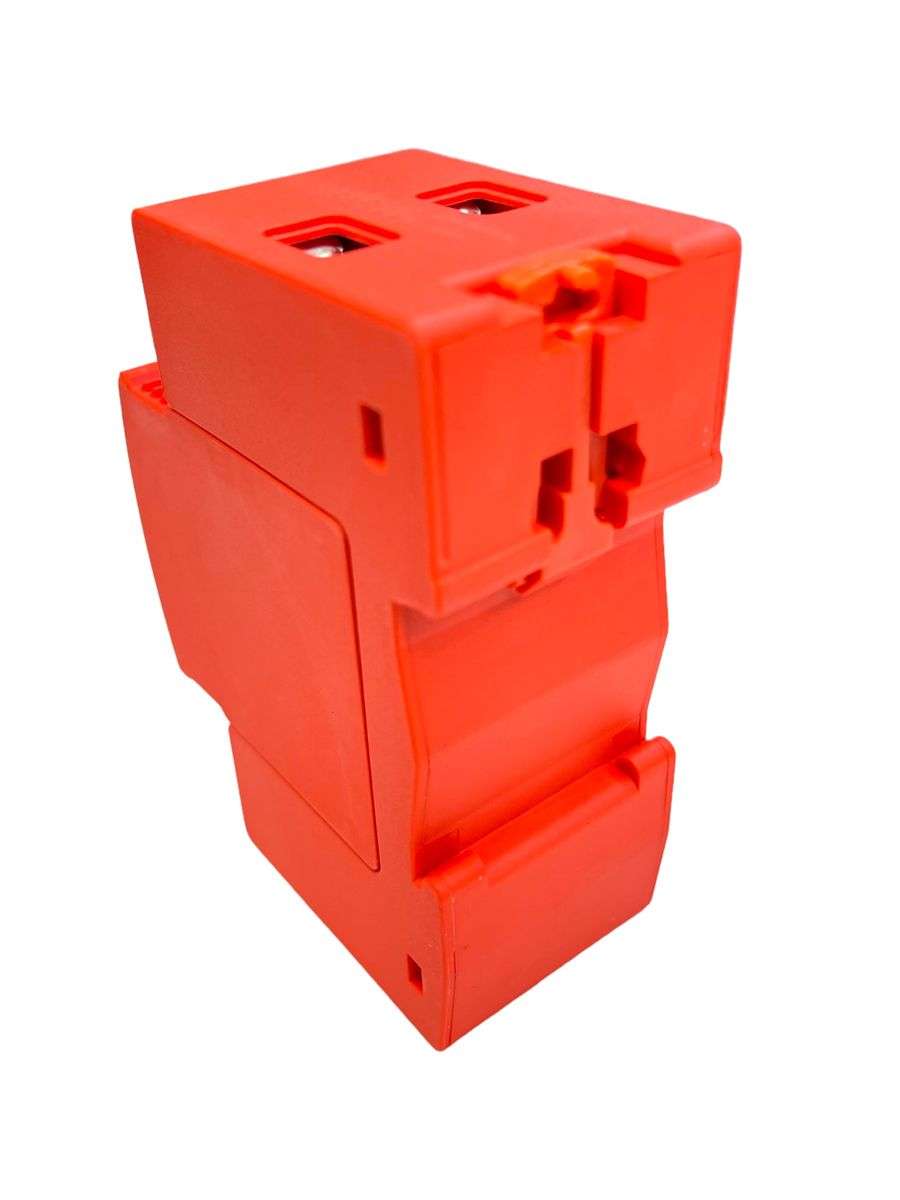

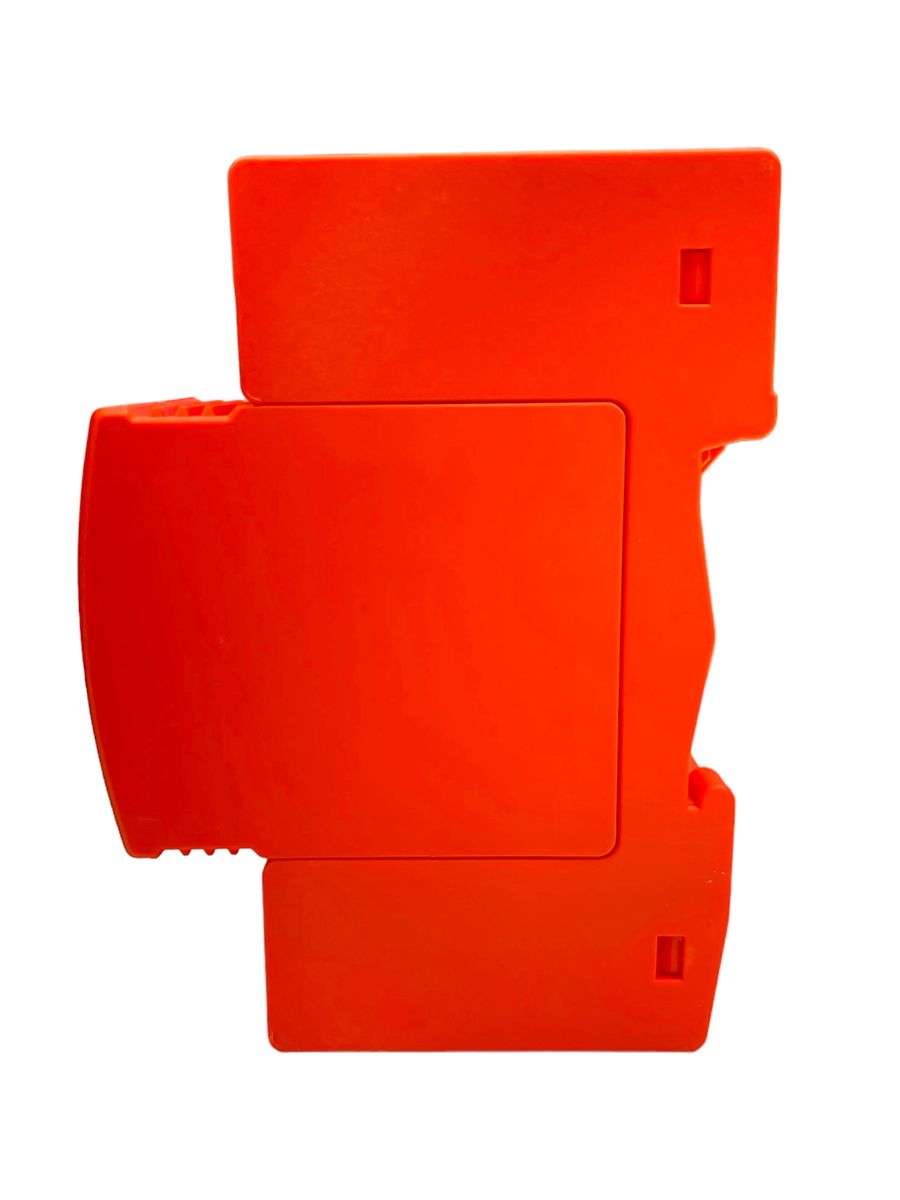

Surge Protective Device 2P 1000V

New 10 were available
Indicative market price: R650.00
R199.00
69% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Get it now, pay later

Product details

Condition
New
Location
South Africa
Customer ratings:
Bob Shop ID
589814271

PV1000

Maximum PV Voltage Ucpv: Less or equal 1000V

Short-Circuit Current rating Iscpv: 200A

Nominal discharge current : 20kA

MAXIMUM DISCHARGE CURRENT : 40KA

Voltage protection level Up: less or equal 4KV

Response time tA: 25ns

Range of operating temperatures (Tu): -140/+80 degree

Operating stage/ fault indication: green / red

Number of ports: 1

Cross-sectional area(min) : 1.5mm square meter solid / flexible

Cross-sectional area (max) : 35 mm square meter stranded / 25 mm square meter flexible

For mounting on : 35 mm DIN rail acc. to EN 60715

Enclosure material: thermoplastic

Place of installation: IndOor installation

Degree of protection: IP20

Capacity: 3 module(s), DIN 43880

Approvals: CE

Type of remote signaling contact: changeover contact

AC Switching capacity: 250V / 0.5A

DC Switching capacity: 250V / 0.1 A ; 125 V / 0.2 A ; 75V / 0.5A

Cross-sectional area for remote signalling terminals: max. 1.5 mm square meter solid / flexible

What's in the box
1 X Surge Protective Device 2P 1000V
