Product details

Condition
New
Location
South Africa
Customer ratings:
Product code
CSO07 / Andowl Q-KG510 Surge Protector 2-Pole DIN Rail DC 1000V 40KA SPD SURGE PROTECTOR
Bob Shop ID
599925949





 2Pole DIN Rail DC 1000v Surge Protector

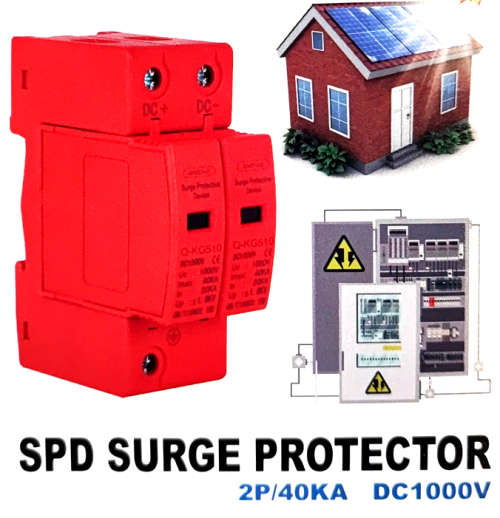

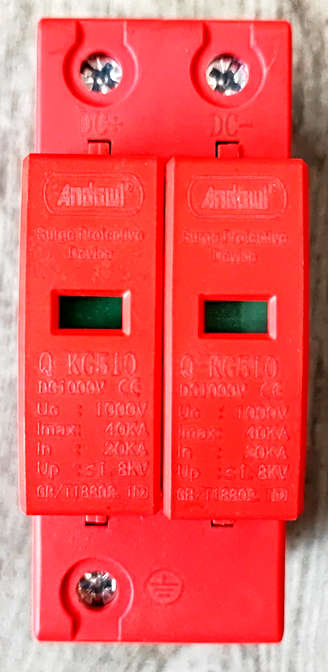

Surge Protector 2-Pole DIN Rail DC 1000V 40KA SPD SURGE PROTECTOR









Maximum PV Voltage Ucpv: Less or equal 1000V
Short-Circuit Current rating Iscpv: 200A
Nominal discharge current : 20kA
MAXIMUM DISCHARGE CURRENT : 40KA
Voltage protection level Up: less or equal 4KV
Response time tA: 25ns
Range of operating temperatures (Tu): -140/+80 degree
Operating stage/ fault indication: green / red
Number of ports: 1
Cross-sectional area(min) : 1.5mm square meter solid / flexible
Cross-sectional area (max) : 35 mm square meter stranded / 25 mm square meter flexible
For mounting on : 35 mm DIN rail acc. to EN 60715
Enclosure material: thermoplastic
Place of installation: IndOor installation
Degree of protection: IP20
Capacity: 3 module(s), DIN 43880
AC Switching capacity: 250V / 0.5A
DC Switching capacity: 250V / 0.1 A ; 125 V / 0.2 A ; 75V / 0.5A

What's in the box
1 X Surge Protective Device 2P 1000V
