Sold

Surge Protector 2-Pole DIN Rail DC 1000V 40KA SPD SURGE PROTECTOR

New 2 were available
Indicative market price: R499.00
R20.00 minimum increment
R290.00
Shipping
Free shipping is available from TradeRouteAuctions for all orders above R5,990.00, using one of our trusted couriers.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Returns
Money-Back Guarantee: 7 Days: IF FAULTY

Product details

Condition
New
Location
South Africa
Product code
CSO07 / Andowl Q-KG510 Surge Protector 2-Pole DIN Rail DC 1000V 40KA SPD SURGE PROTECTOR
Bob Shop ID
633372668

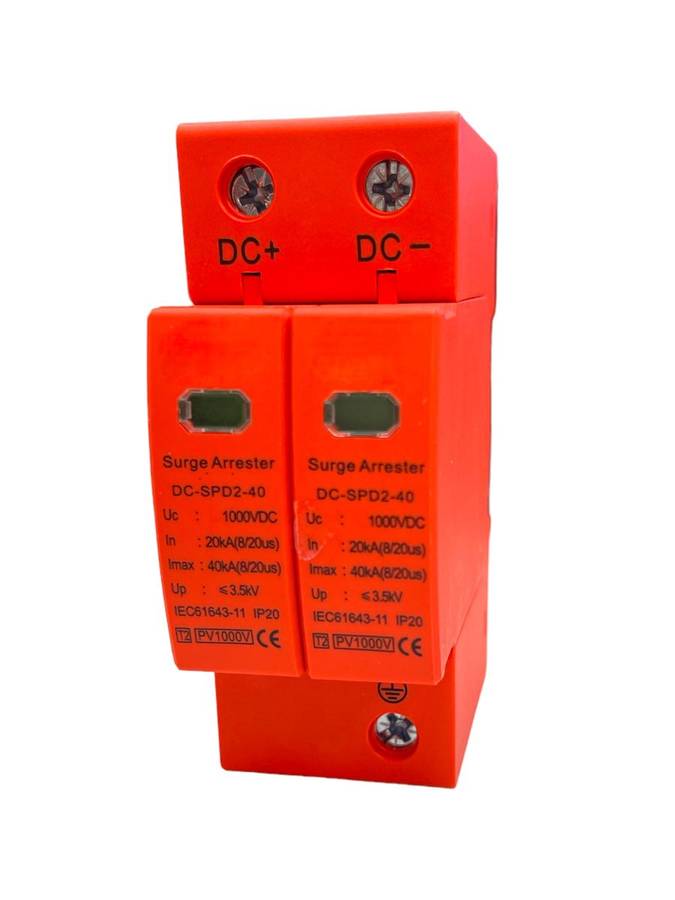

 2Pole DIN Rail DC 1000v Surge Protector

Surge Protector 2-Pole DIN Rail DC 1000V 40KA SPD SURGE PROTECTOR









Maximum PV Voltage Ucpv: Less or equal 1000V
Short-Circuit Current rating Iscpv: 200A
Nominal discharge current : 20kA
MAXIMUM DISCHARGE CURRENT : 40KA
Voltage protection level Up: less or equal 4KV
Response time tA: 25ns
Range of operating temperatures (Tu): -140/+80 degree
Operating stage/ fault indication: green / red
Number of ports: 1
Cross-sectional area(min) : 1.5mm square meter solid / flexible
Cross-sectional area (max) : 35 mm square meter stranded / 25 mm square meter flexible
For mounting on : 35 mm DIN rail acc. to EN 60715
Enclosure material: thermoplastic
Place of installation: IndOor installation
Degree of protection: IP20
Capacity: 3 module(s), DIN 43880
AC Switching capacity: 250V / 0.5A
DC Switching capacity: 250V / 0.1 A ; 125 V / 0.2 A ; 75V / 0.5A

What's in the box
1 X Surge Protective Device 2P 1000V
