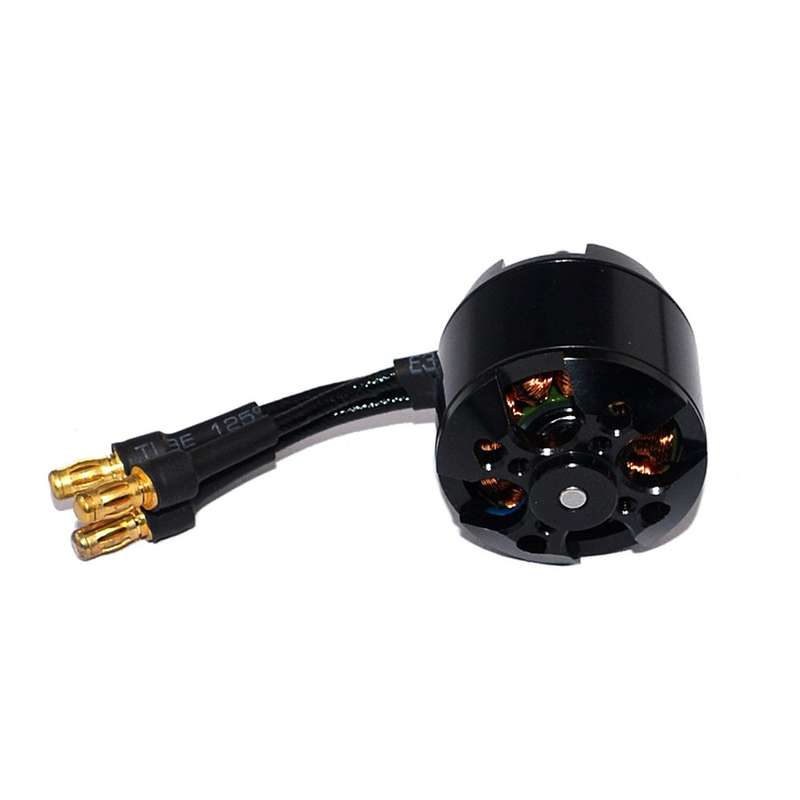

SURPASS Hobby C2830 750KV/850KV/1000KV/1300KV Outrunner Brushless Motor for RC Airpla... (KV: 750KV)

SELECTED OPTION:
KV: 750KV

Description:
Brand Name:?SURPASS Hobby?
Item Name:?C2830 Motor
KV:?750KV, 850KV, 1000KV, 1300KV?(optional)?
Color: Black Connector: 3.5mm Application: Suitable for RC Airplane Fixed-wing EDF Ducted Fan Unit

Specifications:

Model	KV	Max Watts(W)	Voltage Range(V)	Max Current(A)	Rotor Poles	No load Current(A)	Resistance(??)	Motor Size(mm)	Stator Size(mm)	Weight(g)	Prop(Inch)
?C2830-09?	?1300?	300	7~12	25	14	1.2	0.085	¯??28x30	¯??22x12	57	9*6/10*5/10*6
C2830-12	1000	260	7~15	21	14	0.9	0.152	¯??28x30	¯??22x12	57	9*4.5/10*6/10*5
C2830-14	850	240	7~15	19	14	0.6	0.189	¯??28x30	¯??22x12	57	11*5.5/9*6/10*4
C2830-15	750	230	7~15	18	14	0.6	0.221	¯??28x30	¯??22x12	57	11*5.5/10*7

Features:
-?14Pole 12Slot Hi-torque Motor Design. - CNC Machined 6061 T6 Billet Aluminum Heatsink Can. -?High Purity Copper Windings Maximizes Efficiency. -?High RPM ABEC5 Oversized Bearings. -?Precision balanced rotor, smoothness for best reliability and maximum RPM. -?Stator - Super Thin (0.2mm) Laminations. -?Precision Engineered for Maximum Energy Conversion.
-?The outer rotor dynamic balance is controlled within 10mg, ensuring no abnormal noise, no jitter, and smooth running.
-?The motor adopts waterproof design and related waterproof technology, which has a certain anti-corrosion function, and runs normally in the rain.

Package Included:
1x?SURPASS Hobby C2830 Outrunner Brushless Motor
1x Accessories

?
