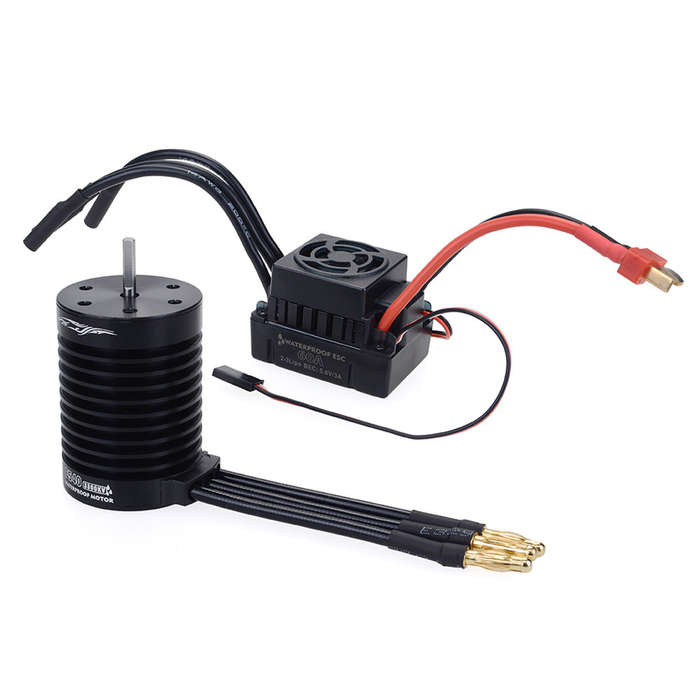

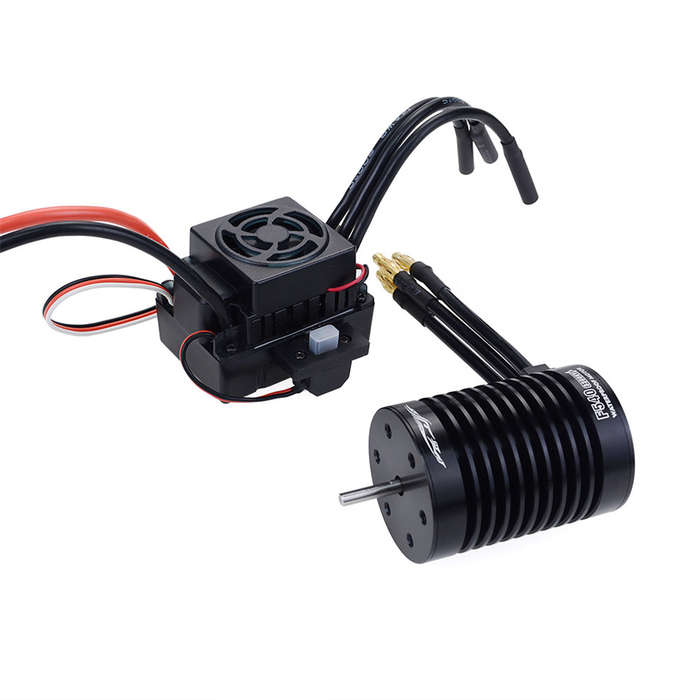

Surpass Hobby Waterproof F540 V2 Sensorless Brushless Motor with 60A ESC for 1/10 RC... (KV: 3300KV)

New

12 were available

R907.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3915

92.60 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

606995510

SELECTED OPTION:
KV: 3300KV

Description:
Item Brand:Surpass Hobby
Item Number:F540 V2(F540/9T, F540/12T)+60A
Item Name:RC car motor +esc set
Material:Metal and plastic
Color:Black

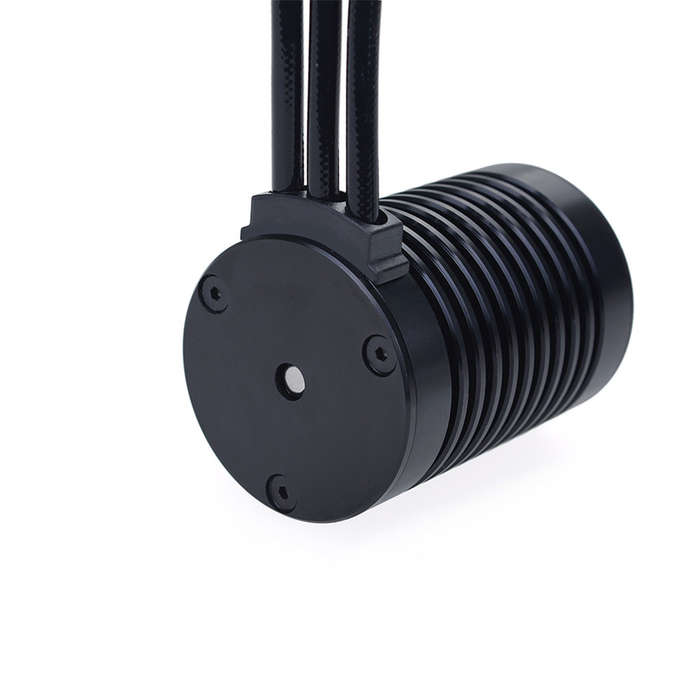

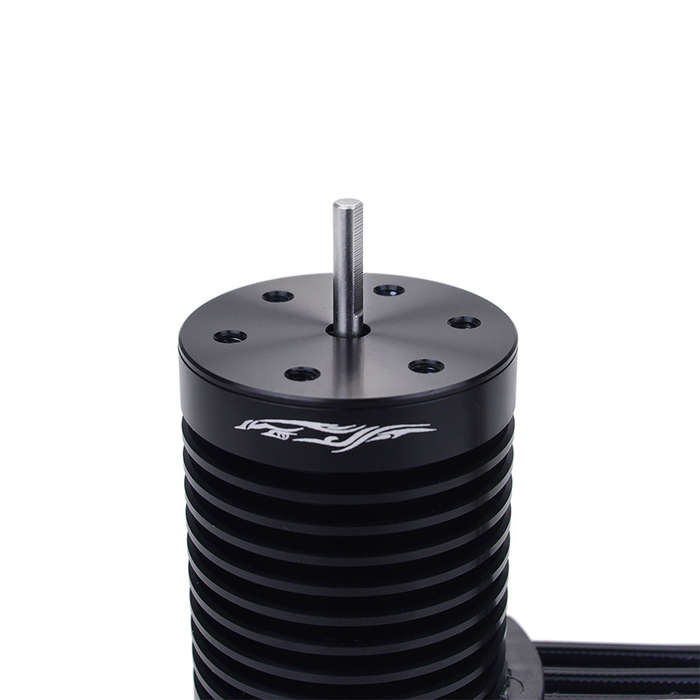

The Size of the Motor:Length 50mm,diameter 36mm,shaft diameter is 3.175mm,length of extended shaft is 15mm
The Size of the ESC:51.5*38.5*38.5mm
The Weight of the Motor/ESC:About 125g/76g
Recommendating Program Card:product id:
Fit For:1/10 brushless rc cars

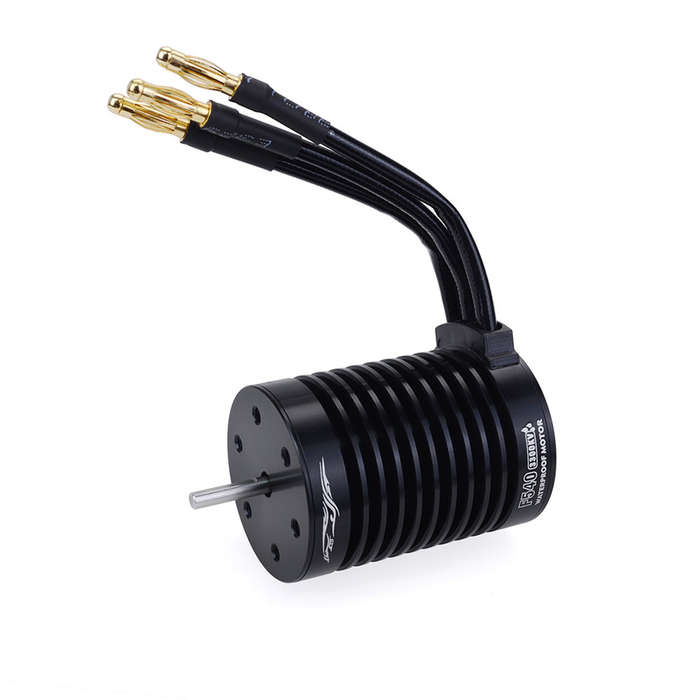

The Specification of the Motor:
KV:4370KV/3300KV
Watts:800
Max Voltage:<12V/<17V
Max Amps:66A/47A
Rotor Poles:4
IO:3.2A/1.9A
Resistance:0.0185/0.0285
Max RPM:50000
Connector:4.0mm gold

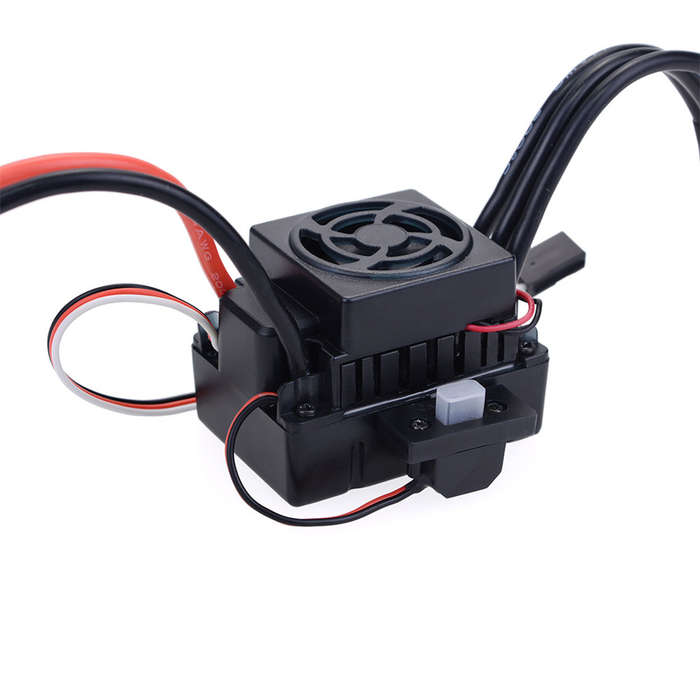

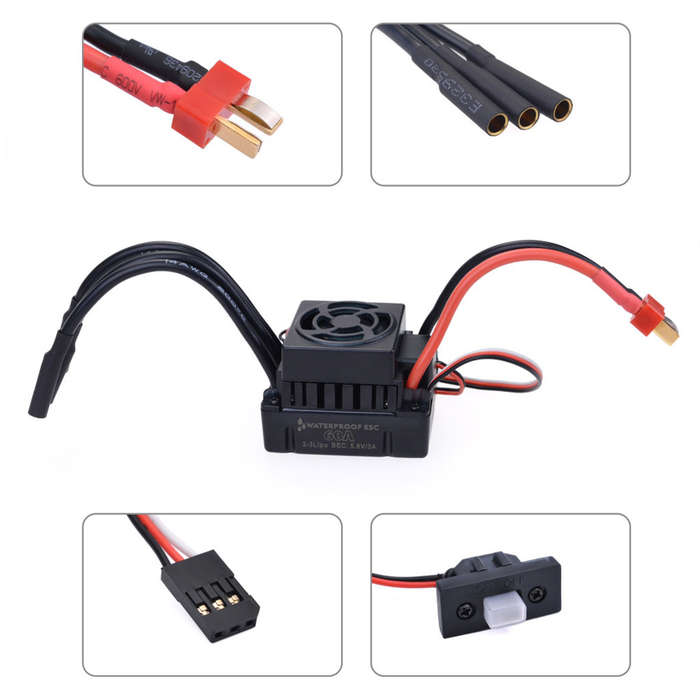

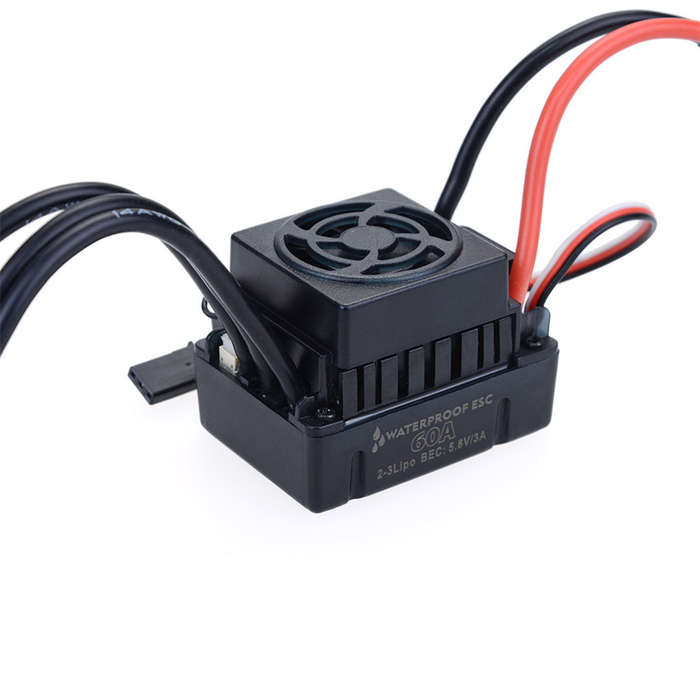

The Specification of the ESC:
Cont.Current:60A
Burst Current:360A
Motor Type:Sensorless Brushless Motor
For 6s Lipo or 6 cells NiMH
1.On-road 3660-size or smaller motor with the kv <4300
2.Off-road/buggy/monster?3660-size or smaller motor with the kv <3300
For 3s lipo or 9 cells NiMH
1.On-road 3660-size or smaller motor with the kv <3300
2.Off-road/buggy/monster?3660-size or smaller motor with the kv <2600
Suitable Car:1/10 car
Resistance:0.0007ohm
Battery:2-3 cells lipo/4-9 cells NiMH
BEC Output:5.8V3A(switch mode)
For the esc manual,please

Features: 4 Pole 12 Slot Hi-torque Motor Design CNC Machined 6061 T6 Billet Aluminum Heatsink Can High Purity Copper Windings Maximizes Efficiency High RPM ABEC5 Oversized Bearings Universal fit,fits all 1/10 brushless cars-multi-mounting system for M3 screws Precision balanced rotor,smoothness for best reliability and maximum RPM Stator - Super Thin (0.35mm) Laminations Removable/Replaceable Rotor Precision Engineered for Maximum Energy Conversion
? Package?included:

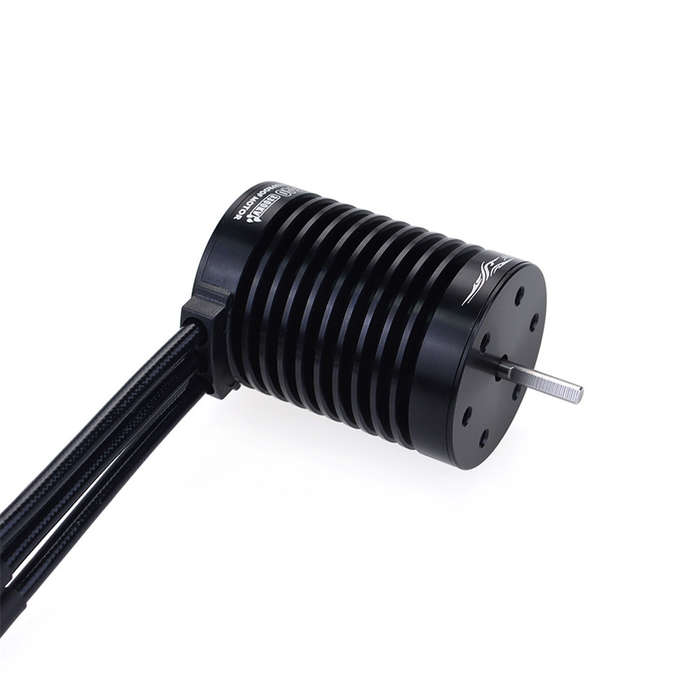

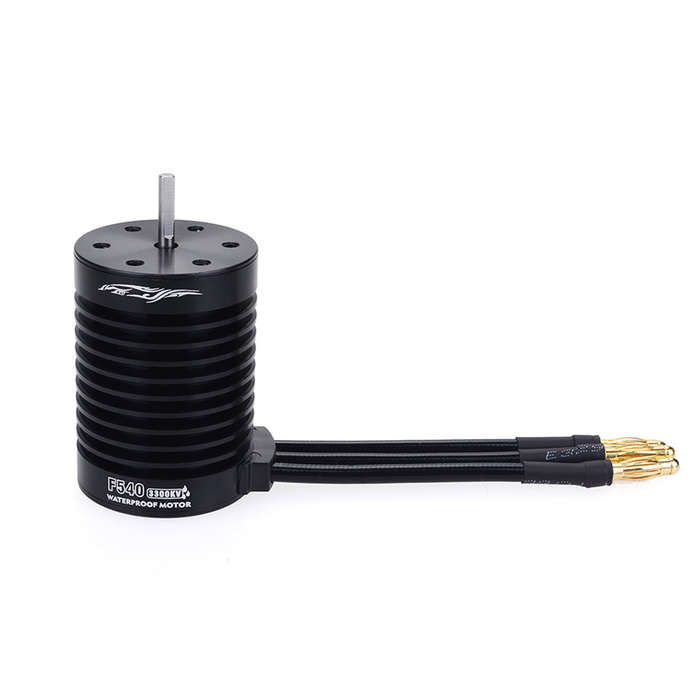

1X F540 V2 Brushless Motor

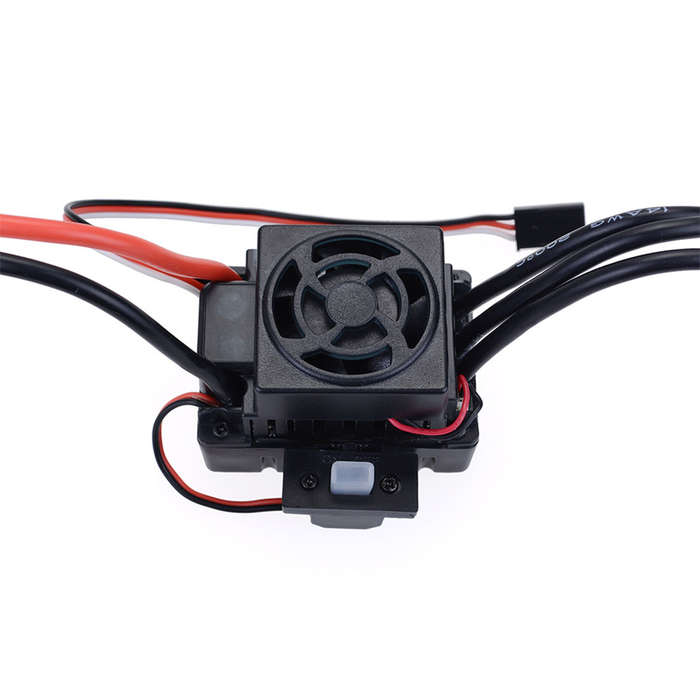

1X 60A ESC
1X Manual
