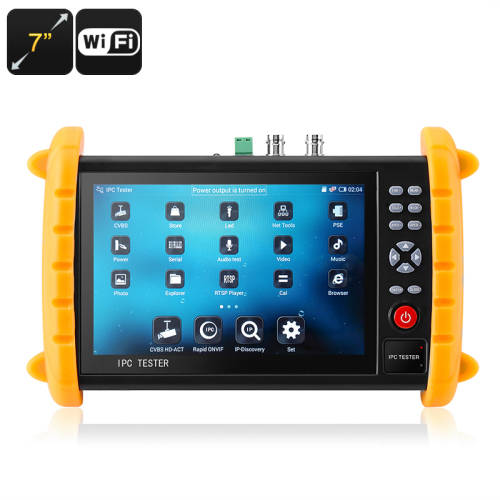

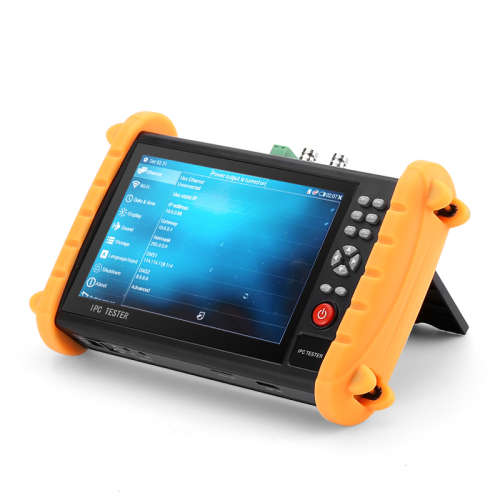

Surveillance Camera Tester
Please check shipping information before placing an order
Due to the popularity of this item there may at times be possible that the supplier is out of stock. Kindly "ask seller a question" before placing an order and i will check availability with my supplier. Thank you :)
The supplier is currently out of stock, available again 25/12/2017
Key Features...

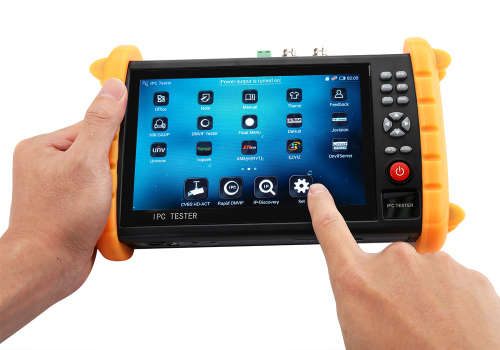

7 Inch touch screen with 1280x800 resolutions makes this a crystal clear display to aid with your camera setup
12Vold 2Amp output and a 5000mAh battery offers a temporary power supply for camera testing
IP Scan, detection, ping test, port flashing and cable testing functions for all your fault finding needs
Bright IPS screen is suitable for use in any light
Manufacturer Specifications
General
Display: 7-inch Capacitive touchscreen
Resolution: 1280x800
Network port: 10/100M auto adjust, RJ45
WIFI : Built in WIFI 802.11 b/g/n, speed: 150Mbit (receive wireless camera image)
IP camera type: ONVIF
Video test: 1 channel BNC Input & 1 channel Output, NTSC/PAL (Auto adapt)
Functions: Support Analog camera and IP camera image zoom/move, Snapshots, Video record, Record playback, Image Screenshots, Record, save, view and record playback
HDMI output: 1 channel HDMI output support 1920x1080
12V/2Apower output: Output DC12V/2A power for camera
5V power output: 5V 2A power output as a mobile phone Power bank
PoE power output: 48V PoE power output (Max power 24)
Audio test: 1 channel audio signal input, test sound, 1 channel audio signal to connect headphone
Video Signal Generator: Output one channel PAL/NTSC color bar video signal for testing monitor or video cable. (red, green, blue, white and black color)
UTP Cable tester: Test UTP cable connection status and display in the screen
Data monitor: Captures and analyzes the command data from controlling device also can send hexadecimal
Network test: IP address scan, link scan, Ping test, Quickly search the connection IP camera and other device IP address
Cable scan: Search the cable by the audio signal
PoE test: Measurement POE switch or PSE power supply voltage and cable connection status
Other Functions: Built in video level meter, Analog and digital video signal output, IP address scan, Ping test, Port flashing, Cabletest, Digital Multi-meter, Optical power meter and TDR cable tester, Network bandwidth testing
Mico SD card slot: up to 64GB
External power supply: DC 12V 2A

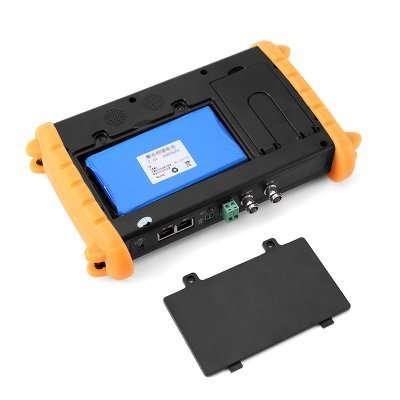

Battery: Removable 5000mAh 7.4V Lithium polymer battery
Directly provide PoE power to IP Camera 5V 2A power output
Working time: 7-10 hours

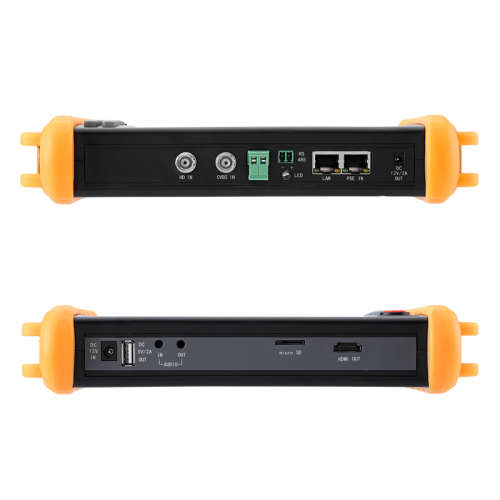

Ports
DC IN 12V
USB 5V/2A OUT
Audio in
Audio out
Mico SD card slot (max 64GB)
HDMI out
CAMERA HD IN
CVBS IN
DC24V OUT
RS485
RJ45
PSE IN
DC 12V/2A OUT
Dimensions
Main Product Dimensions: 250x155x50 mm (L x W x D)
Main Product Weight: 932g

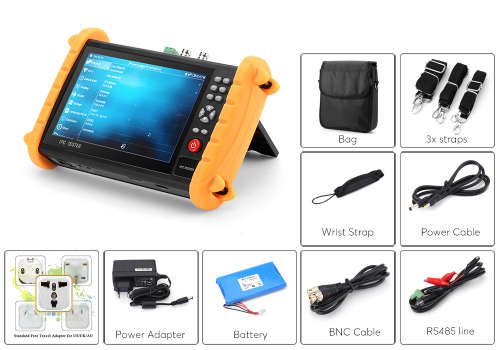

Package Contents
Host
Power Supply
Power Supply Cable
RS485 Cable
BNC Cable
Cloth Bag
4x Straps
