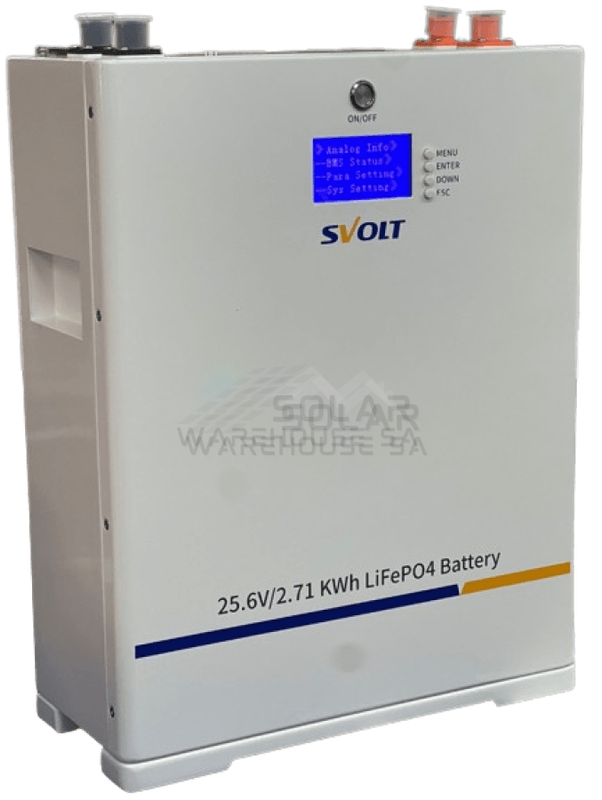

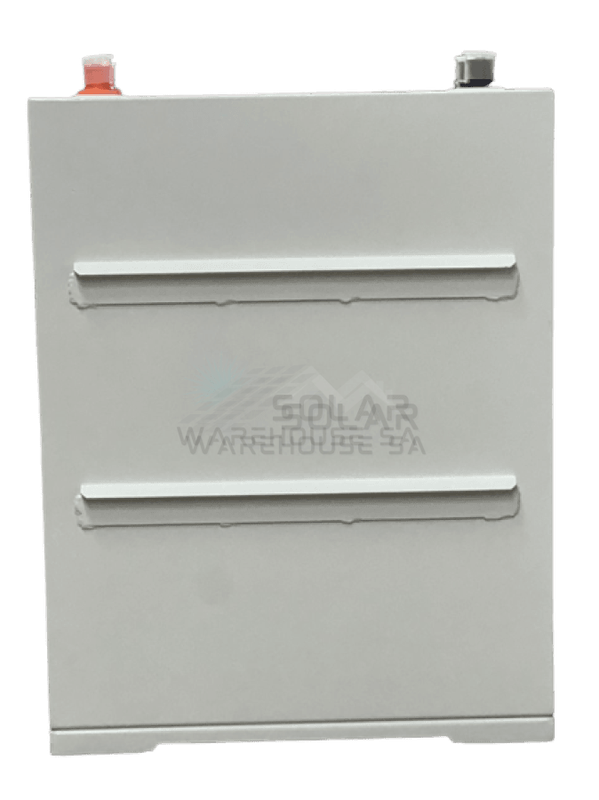

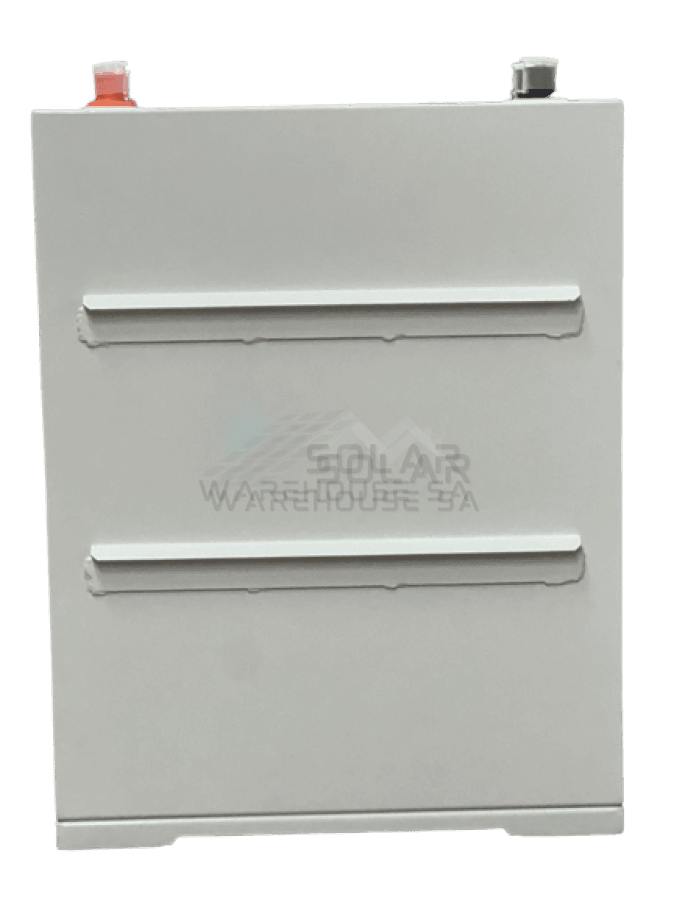

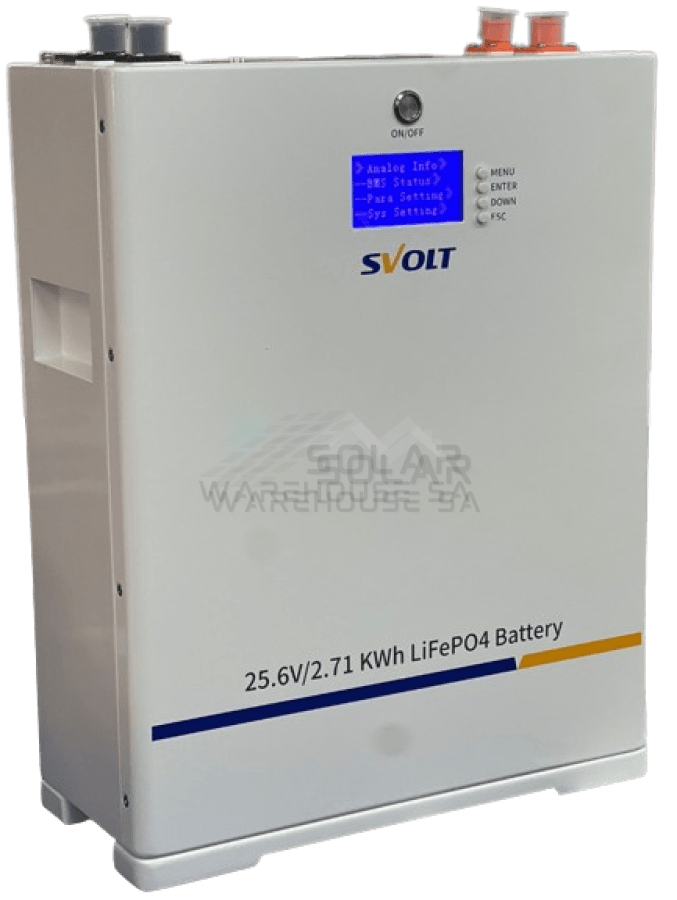

The SVOLT 25.6V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
Features:
- A-Grade Cell Technology
- Maintenance-free
- Environmental Friendly
- Wide Variety of Markets
- Renewable Energy
- 7 Protection Features
- Built-in Battery Management System
- Mountable
- 5-year Warranty
Battery Specifications:
- Energy: 2.71kWh
- Battery Type-Chemistry: LiFePO4
- Nominal Voltage: 25.6V
- Nominal Capacity: 106Ah
- Energy Density: 2713.6Wh
- Terminal Type: Fast Plug In & Plug Out
- Case Material: SPCC
- BMS Built-in: Yes
- LCD Screen
- Internal Resistance: - Efficiency - Round Trip: >99%
- Self Discharge per Month: - Max Parallel Connectors: 16Pcs
- Series Connections: Not Allowed
- Cycle Life(0.2C, 25 C @ 80% DOD): >6000 Cycles
- Discharge Temperature: -20 C to 65 C
- Charge Temperature: 0 C to 50 C
- Storage Temperature: -10 C to 30 C
- Voltage Window: 21.6V - 29.2V
- Recommended Charge Voltage: 28.8 0.20V
- Max Charge Voltage: 29.2 0.20V
- Recommended Charge Current: 50A
- Max Continuous Charge Current: 100A
- Recommended Discharge Voltage: 22.4 0.20V
- Max Discharging Voltage: 21.6 0.20V
- Max Continuous Discharge Current: 100A
- Peak Discharge Current: 150A
- Dimensions: L47 x W35 x H15.5 (cm)
- Weight: 28kgs

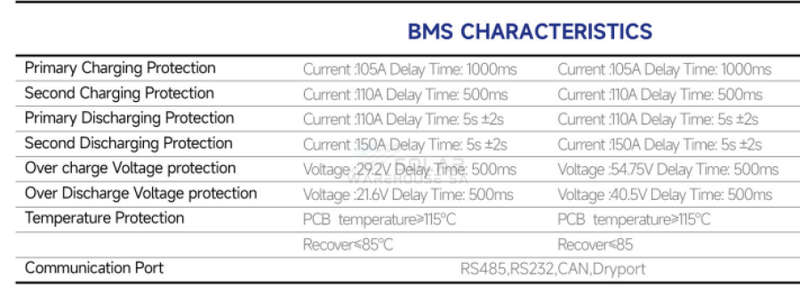

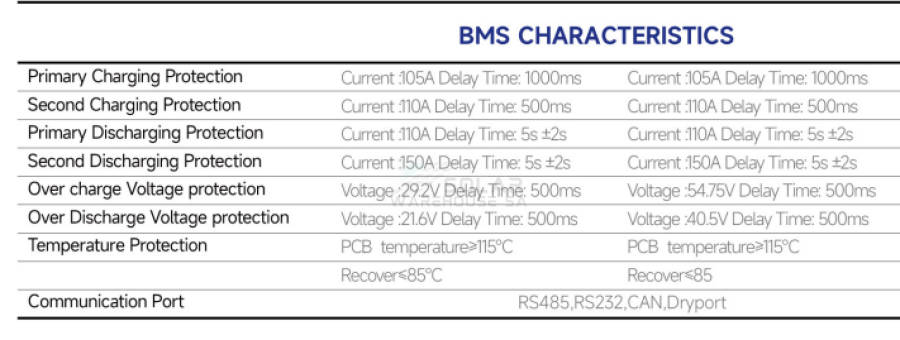

BMS Characteristics:
- Primary Charging Protection: (Current: 106A) (Delay Time:1000ms)
- Secondary Charging Protection: (Current: 110A) (Delay Time:500ms)
- Primary Discharging Protection: (Current: 110A) (Delay Time: 5s 2s)
- Secondary Discharging Protection: (Current: 150A) (Delay Time: 5s 2s)
- Over Charge Voltage Protection: (Voltage: 29.2V) (Delay Time:500ms)
- Over Discharge Voltage Protection: (Voltage: 21.6V) (Delay Time:500ms)
- Temperature Protection: (PCB Temperature: 115 C) (Recover: 85 C)
- Communication Port: Major RS485, RS232,CAN,Dryport
What's in the box
1 x SVOLT 25.6V 106Ah Lithium Battery
1 x Red (Positive) Battery Cable
1 x Black (Negative) Battery Cable
1 x Ethernet cable
1 x Manual
Series connections
Cycle life (0.2C, 25C@80% DOD) >6000 Cycles
Max continuous charge current 100A
Recommend Discharge voltage 22.40.20V
Max Discharging Voltage 21.60.20V
Max Continuous Discharge current 100A
Peak Discharge Current 150A
Size:
470 x 350 x 155
28kg
What's In the Box:
- 1 x SVOLT 24V 106Ah 2.71 kWh A-Grade Lithium Battery
- 1 x Red (Positive) Battery Cable
- 1 x Black (Negative) Battery Cable
- 1 x Manual
5 Years Warranty
10 Years Service Warranty
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
