Rising state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
This allows superior performance, capacity, and reliability.
Features
A-Grade Cell Technology
Maintenance-free
Environmental Friendly
Wide Variety of Markets
Renewable Energy
7 Protection Features
Built-in Battery Management System
Mountable
5-year Warranty

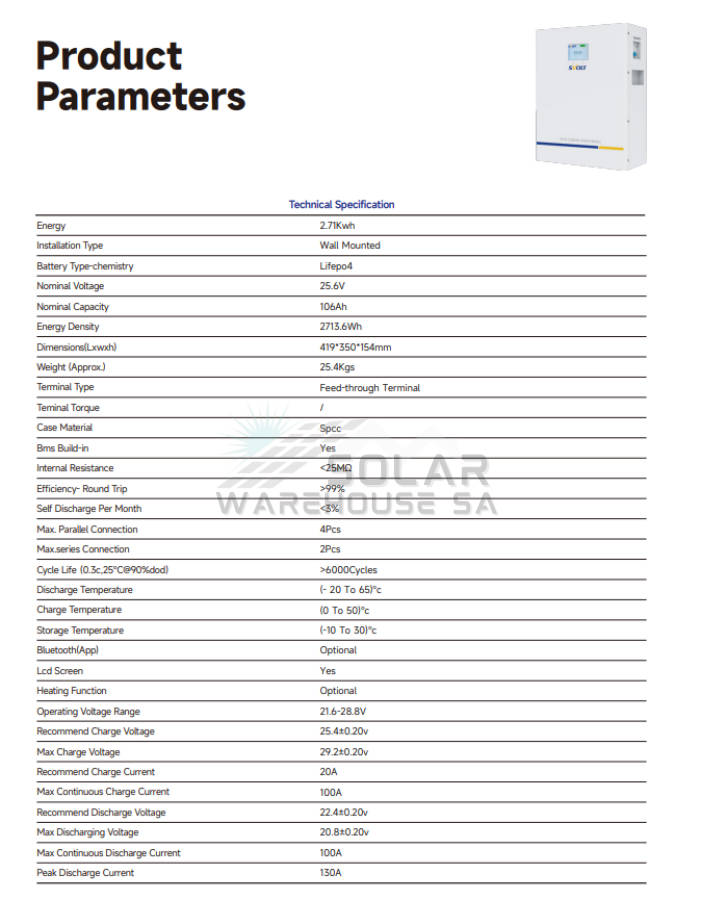

Specifications
Energy: 2.71 kWh
Installation Type: Wall Mounted
Battery Type-Chemistry: Lifepo4
Nominal Voltage: 25.6V
Nominal Capacity: 106Ah
Energy Density: 2713.6 Wh
Dimensions (LxWxH): 419 x 350 x 154 mm
Weight (Approx.): 25.4 Kgs
Terminal Type: Feed-through Terminal
Case Material: SPCC
BMS Built-in: Yes
Internal Resistance: <25 m
Efficiency- Round Trip: >99%
Self Discharge Per Month: <3%
Max. Parallel Connection: 4 Pcs
Max. Series Connection: 2 Pcs
Cycle Life (0.3c, 25 @ 90% DOD): >6000 Cycles
Discharge Temperature: (-20 to 65)°C
Charge Temperature: (0 to 50)°C
Storage Temperature: (-10 to 30)°C
LCD Screen: Yes
Heating Function: Optional
Electrical Parameters
Operating Voltage Range: 21.6-28.8V
Recommend Charge Voltage: 25.4±0.20V
Max Charge Voltage: 29.2±0.20V
Recommend Charge Current: 20A
Max Continuous Charge Current: 100A
Recommend Discharge Voltage: 22.4±0.20V
Max Discharging Voltage: 20.8±0.20V
Max Continuous Discharge Current: 100A
Peak Discharge Current: 130A
Dimensions (LxWxH): 419 x 350 x 154 mm
Weight (Approx.): 25.4 Kgs
What's In the Box:

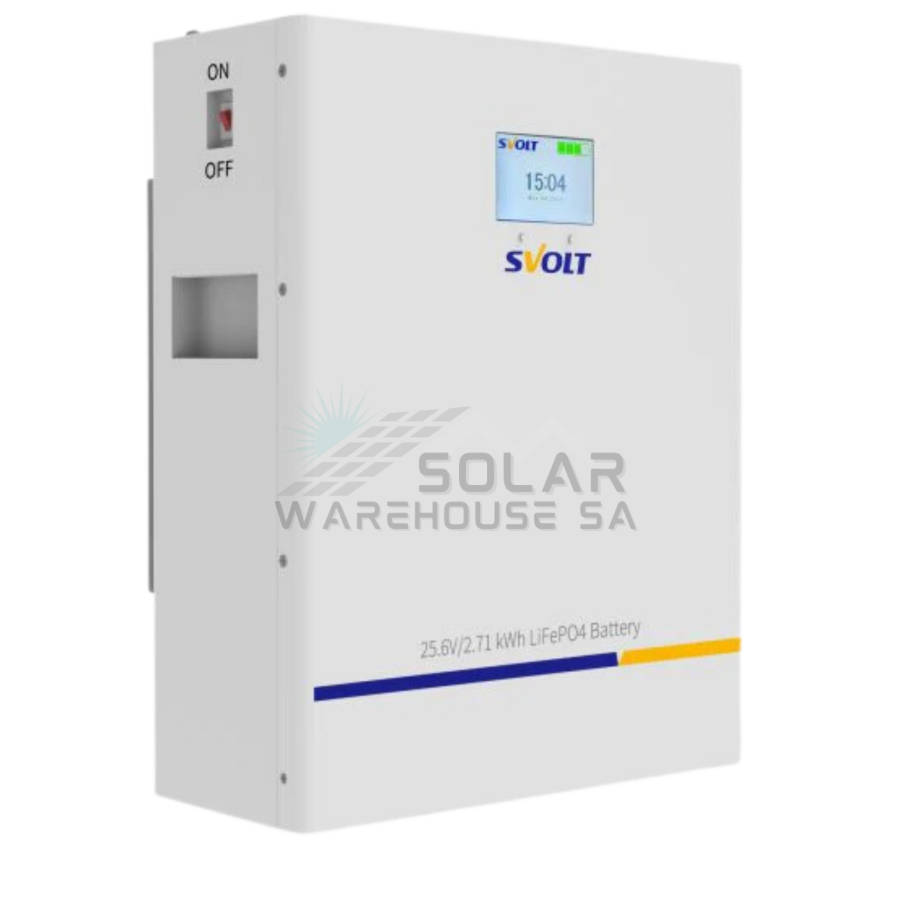

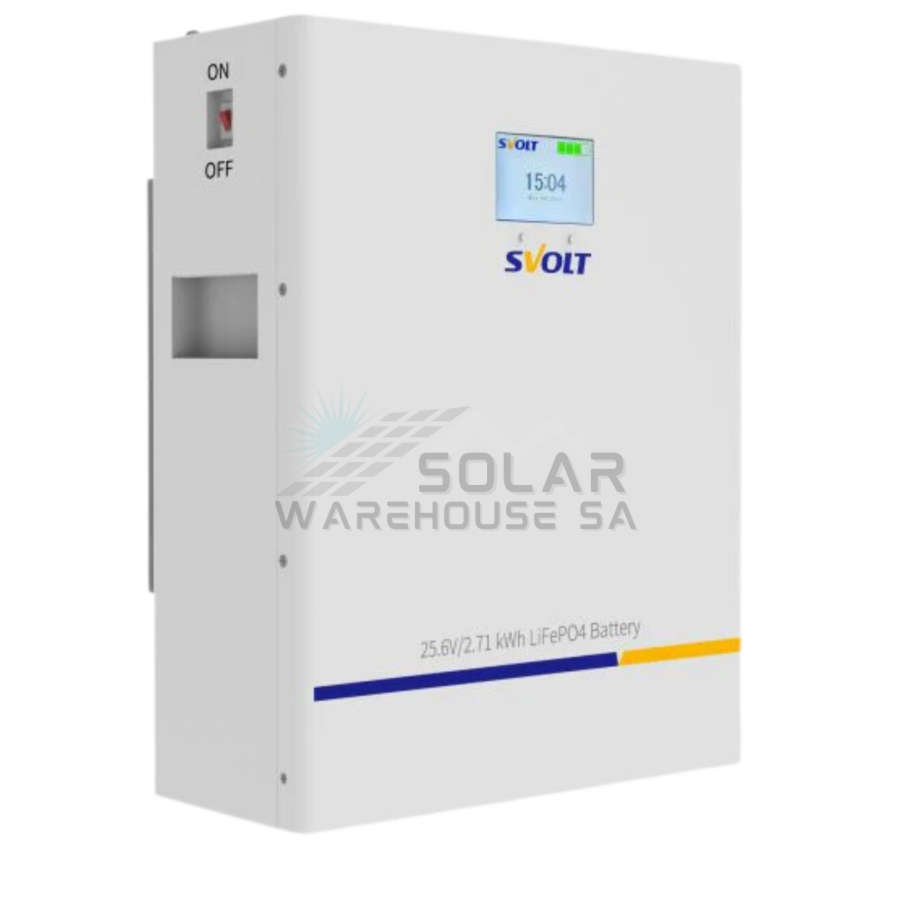

- 1 x SVOLT 24V 106Ah 2.71 kWh A-Grade Lithium Battery
- 1 x Red (Positive) Battery Cable
- 1 x Black (Negative) Battery Cable
- 1 x Manual
5 Years Warranty
10 Years Service Warranty
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
