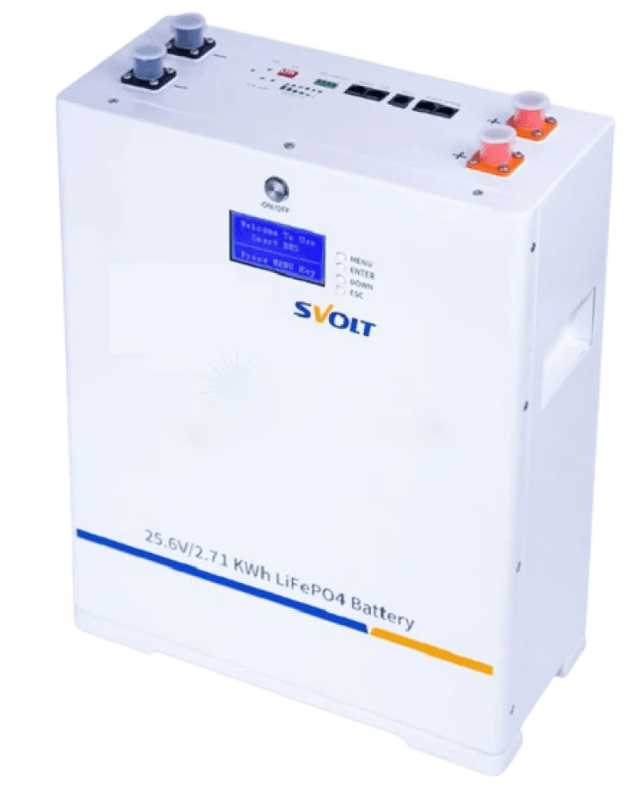

SVOLT 24V 106AH 2.71 KWH LITHIUM BATTERY

The SVOLT 25.6V 106Ah Lithium Battery is manufactured by a world-leading manufacturer SVOLT using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power  cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.

Features:
- A-Grade Cell Technology
- Maintenance-free
- Environmental Friendly
- Wide Variety of Markets
- Renewable Energy
- 7 Protection Features
- Built-in Battery Management System
- Mountable
- 5-year Warranty

Battery Specifications:
- Energy: 2.71kWh
- Battery Type-Chemistry: LiFePO4
- Nominal Voltage: 25.6V
- Nominal Capacity: 106Ah
- Energy Density: 2713.6Wh
- Terminal Type: Fast Plug In & Plug Out
- Case Material: SPCC
- BMS Built-in: Yes
- LCD Screen
- Internal Resistance: - Efficiency - Round Trip: >99%
- Self Discharge per Month: - Max Parallel Connectors: 16Pcs
- Series Connections: Not Allowed
- Cycle Life(0.2C, 25 C @ 80% DOD): >6000 Cycles
- Discharge Temperature: -20 C to 65 C
- Charge Temperature: 0 C to 50 C
- Storage Temperature: -10 C to 30 C
- Voltage Window: 21.6V - 29.2V
- Recommended Charge Voltage: 28.8 0.20V
- Max Charge Voltage: 29.2 0.20V
- Recommended Charge Current: 50A
- Max Continuous Charge Current: 100A
- Recommended Discharge Voltage: 22.4 0.20V
- Max Discharging Voltage: 21.6 0.20V
- Max Continuous Discharge Current: 100A
- Peak Discharge Current: 150A
- Dimensions: L47 x W35 x H15.5 (cm)
- Weight: 28kgs

BMS Characteristics:
- Primary Charging Protection: (Current: 106A) (Delay Time:1000ms)
- Secondary Charging Protection: (Current: 110A) (Delay Time:500ms)
- Primary Discharging Protection: (Current: 110A) (Delay Time: 5s 2s)
- Secondary Discharging Protection: (Current: 150A) (Delay Time: 5s 2s)
- Over Charge Voltage Protection: (Voltage: 29.2V) (Delay Time:500ms)
- Over Discharge Voltage Protection: (Voltage: 21.6V) (Delay Time:500ms)
- Temperature Protection: (PCB Temperature: 115 C) (Recover: 85 C)
- Communication Port: Major RS485, RS232,CAN,Dryport

What's in the box
1 x SVOLT 25.6V 106Ah Lithium Battery
1 x Red (Positive) Battery Cable
1 x Black (Negative) Battery Cable
1 x Ethernet cable
1 x Manual

Battery Warranty: 5 Years

Warranty Condition:

A certified electrical wireman or master electrician with a current Department of Labor registration is required to install all inverters and batteries. Once installed, a current electrical certificate of compliance (COC) for the installation of the solar or backup system is required. The installation needs to adhere to SANS 10142 in its entirety. If a warranty claim is filed without installation images, a current COC, and documentation that the item was installed by a licensed wireman or master electrician, it may be denied and become void.
