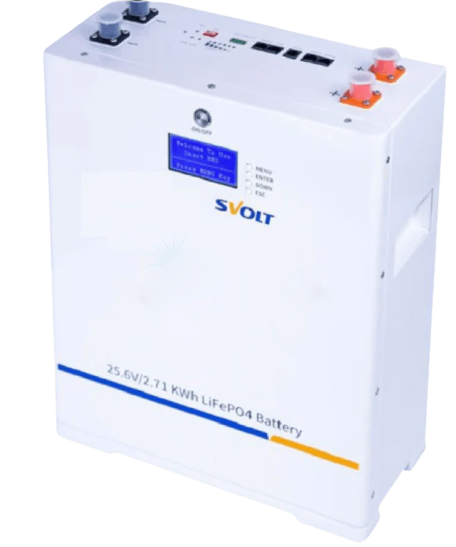

SVOLT 25.6V 106Ah 2.71 kWh A-Grade Lithium Battery
SVOLT 25.6V 106Ah 2.71 kWh A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval groups which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
Specifications:
Nominal Voltage 25.6V
Nominal Capacity 106Ah
Energy 2.71kWh
Battery type-Chemistry LiFePO4
Installation Type Wall Mounted
Energy Density
Terminal Type Fast Plug-In & Plug Out
Case Material
SPCC
BMS build-in Yes
Series connections
Cycle life (0.2C, 25C@80% DOD) >6000 Cycles
Max continuous charge current 100A
Recommend Discharge voltage 22.40.20V
Max Discharging Voltage 21.60.20V
Max Continuous Discharge current 100A
Peak Discharge Current 150A
Size:
470 x 350 x 155
28kg
What's In the Box:
- 1 x SVOLT 24V 106Ah 2.71 kWh A-Grade Lithium Battery
- 1 x Red (Positive) Battery Cable
- 1 x Black (Negative) Battery Cable
- 1 x Ethernet cable
- 1 x Manual
5 Years Warranty
10 Years Service Warranty
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
