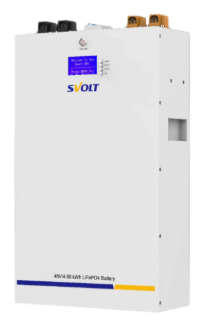

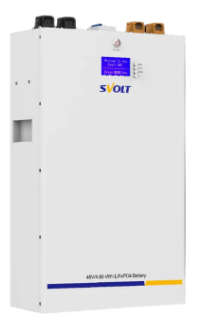

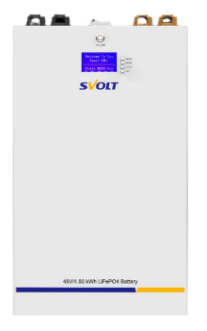

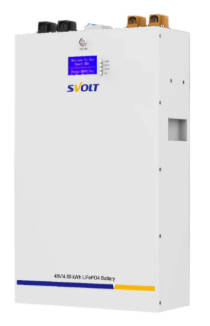

SVOLT 48V 100Ah A-Grade 4.8kWh Lithium Battery - High-Performance Energy Storage Solution
The SVOLT 48V 100Ah A-Grade Lithium Battery is a cutting-edge energy storage solution designed for superior performance, long-term reliability, and sustainability. Manufactured by the globally recognized SVOLTa leader in the battery industry in partnership with Haval Motor Groupthis 4.8kWh Lithium Battery utilizes A-Grade Battery Cells to deliver exceptional power, capacity, and efficiency.
Key Features of the SVOLT 48V 100Ah 4.8kWh Lithium Battery
Top-Tier A-Grade Lithium Technology: The SVOLT 48V 100Ah battery uses high-quality LiFePO4 (Lithium Iron Phosphate) cells, ensuring a longer lifespan, greater efficiency, and enhanced safety for residential, commercial, and industrial applications.
Maintenance-Free & Environmentally Friendly: The SVOLT 48V 100Ah A-Grade battery is designed for low-maintenance operation and is ideal for environmentally sensitive areas. Its eco-friendly design also supports recycling, contributing to sustainability efforts.
Versatile Application: Whether for solar energy storage, electric vehicles, telecommunications, medical equipment, or industrial use, the 4.8kWh Lithium Battery meets a wide range of power needs. It's a perfect choice for backup power systems, UPS, and other critical applications.
Exceptional Efficiency: With a round-trip efficiency of 99%, this Lithium Battery ensures minimal energy loss, maximizing your energy storage performance.
Scalable and Flexible: The SVOLT 48V 100Ah system can be easily expanded, with up to 16 parallel connections, allowing you to scale your energy storage capacity as needed.
Specifications of the SVOLT 48V 100Ah 4.8kWh Lithium Battery
Energy Capacity: 5.09kWh
Battery Type-Chemistry: LiFePO4 (Lithium Iron Phosphate)
Nominal Voltage: 48V
Nominal Capacity: 100Ah
Energy Density: 4.8kWh
Dimensions (LxWxH): 688 x 447 x 211mm
Weight: 49.5kg
Max. Continuous Discharge Current: 100A
Peak Discharge Current: 150A
Max. Parallel Connections: Up to 16 Modules
Self Discharge per Month: <3%
Cycle Life (at 80% DOD): 6000 cycles
Charge Voltage: 43.2V - 58.4V
Max Charge Voltage: 57.6V ± 0.20V
Charge Current: 58.4V ± 0.20V
Discharge Voltage: Max 43.2V ± 0.20V
Additional Features and Options
LCD Screen: Optional LCD display for real-time performance insights.
Heating Function: Optional heating feature for cold environments.
Voltage Window: Customizable voltage window for specific applications.
What's in the Box:
1 x SVOLT 48V 100Ah A-Grade Lithium Battery
1 x Red (Positive) Battery Cable
1 x Black (Negative) Battery Cable
1 x Ethernet Cable
1 x User Manual
1 x Wall Mount Bracket
1 x Warranty Card
Warranty: 5 Years
