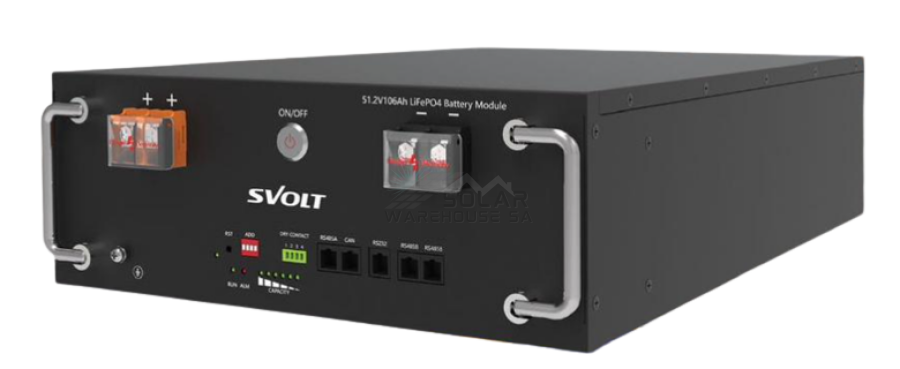

SVOLT 48V 106AH 5.09Kwh A-Grade Lithium Battery – Rack Mount

The SVOLT 48V 106AH 5.09Kwh A-Grade Lithium Battery, manufactured by SVOLT in collaboration with Haval groups, offers exceptional performance and reliability. With A-Grade battery cells and advanced technology, this maintenance-free battery is ideal for various applications, including solar and renewable energy storage, electric vehicles, industrial equipment, medical devices, telecommunications, TVs, and UPS systems. Its rack-mounted installation type and compact design make it suitable for industrial, residential, commercial, and private use.

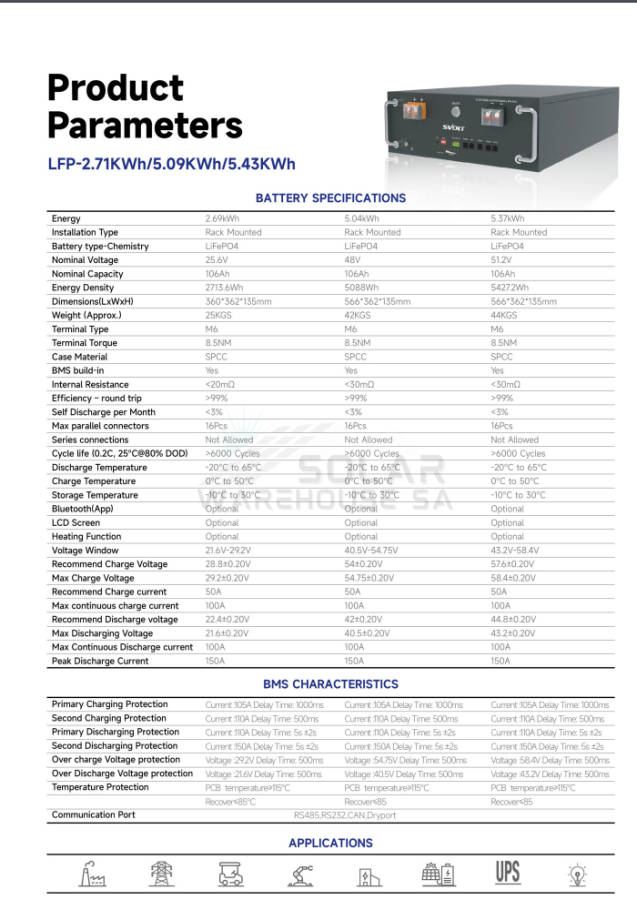

Specifications :

• Energy:5.09kWh
• Installation Type: Wall Mounted
• Battery type-Chemistry: LiFePO4
• Nominal Voltage:48V
• Nominal Capacity :106Ah
• Energy Density:5427 KWh
• Dimensions(LxWxH) :688 x 447 x 211mm
• Weight (Approx.):49.5KGS
• Terminal Type: M6
• Terminal Torque:8.5NM
• Case Material: SPCC
• BMS build-in: Yes
• Internal Resistance:<30mO
• Efficiency round trip:99%
• Self Discharge per Month:<3%
• Max parallel connectors:16Pcs
• Series connections:Not Allowed
• Cycle life (0.2C, 25°C@80% DOD) Discharge Temperature:6000 Cycles
• Charge Temperature :20° C to 65°
• Storage Temperature :0C to 50° C
• Bluetooth(App) :Optional
• LCD Screen: Optional
• Heating Function: Optional
• Voltage Window: Optional
• Recommend Charge Voltage:43.2V-58.4V
• Max Charge Voltage:57.6±0.20V
• Recommend Charge current:58.4±0.20V
• Max Discharging Voltage:43.2±0.20V
• Max Continuous Discharge Current :100A
• Peak Discharge Current:150A

Features :

• Manufactured by SVOLT in collaboration with Haval groups, known for their excellence in vehicles
• A-Grade lithium battery cells for superior performance and reliability
• Designed for environmentally sensitive areas and committed to recycling
• Widely used in industrial, residential, commercial, and private applications
• Maintenance-free construction for convenience
• Suitable for solar and renewable energy storage, electric vehicles, industrial equipment, medical devices, telecommunications, TVs, and UPS systems
• Built-in Battery Management System (BMS) for efficient monitoring and protection
• High energy efficiency with a round trip efficiency of 99%
• Low self-discharge rate of less than 3% per month
• Compact and lightweight design for easy handling
• Optional features include Bluetooth (App), LCD screen, heating function, and voltage window
• Wide temperature range of operation and storage
• Warranty: 5 years

What's In the Box :

• 1 x SVOLT 48V 106Ah 5.09kw A-Grade Lithium Battery
• 1 x Red (Positive) Battery Cable
• 1 x Black (Negative) Battery Cable
• 1 x Ethernet cable
• 1 x Manual

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
