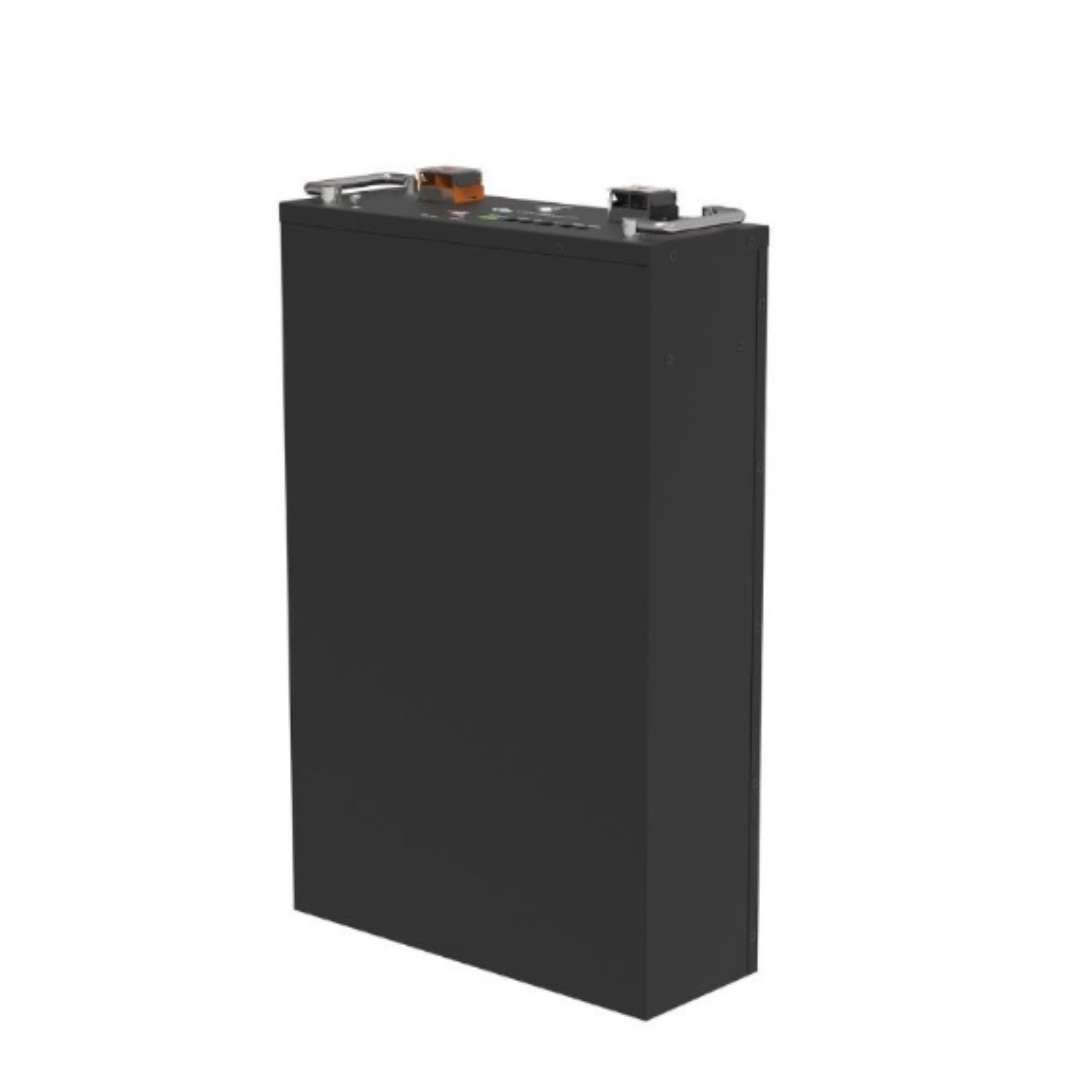

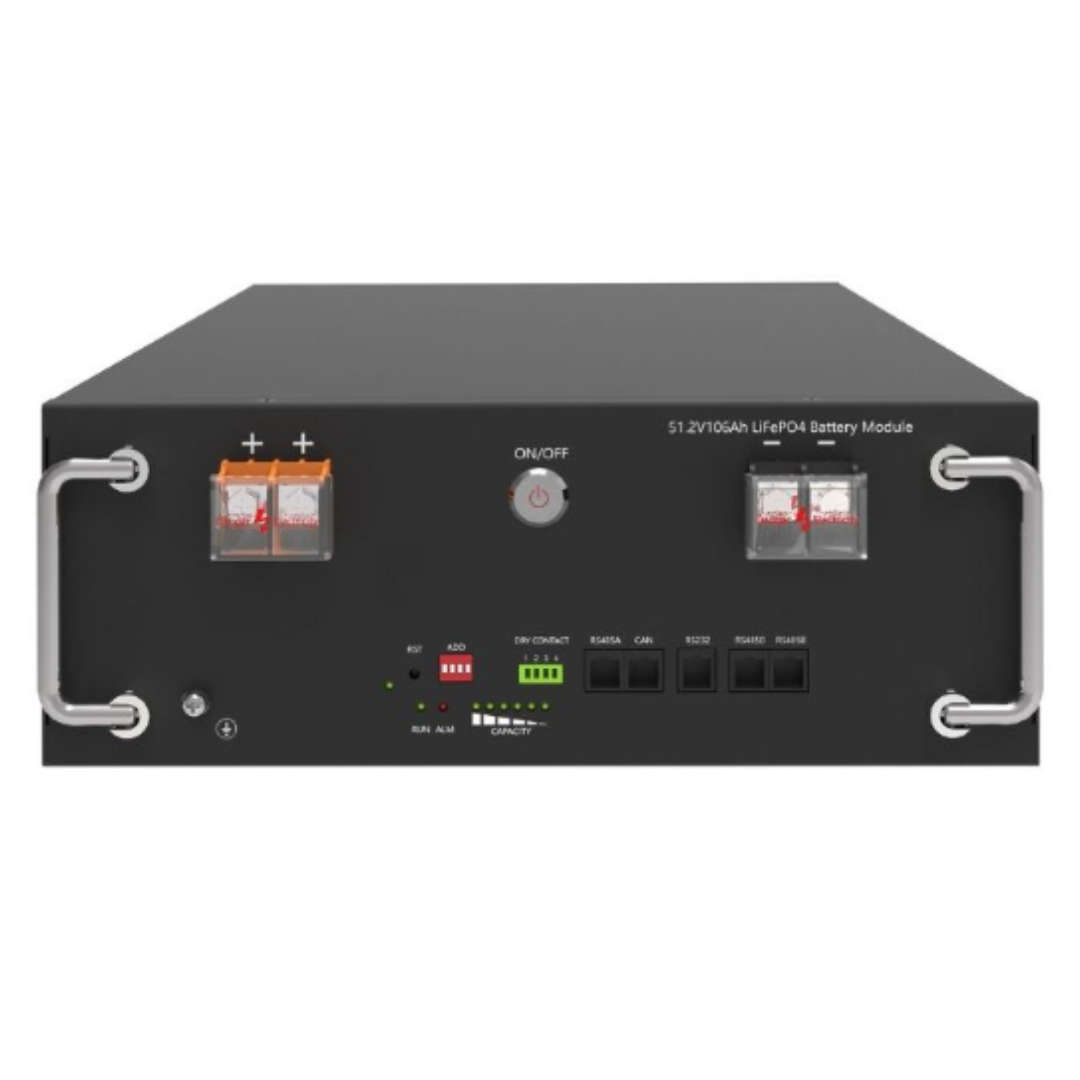

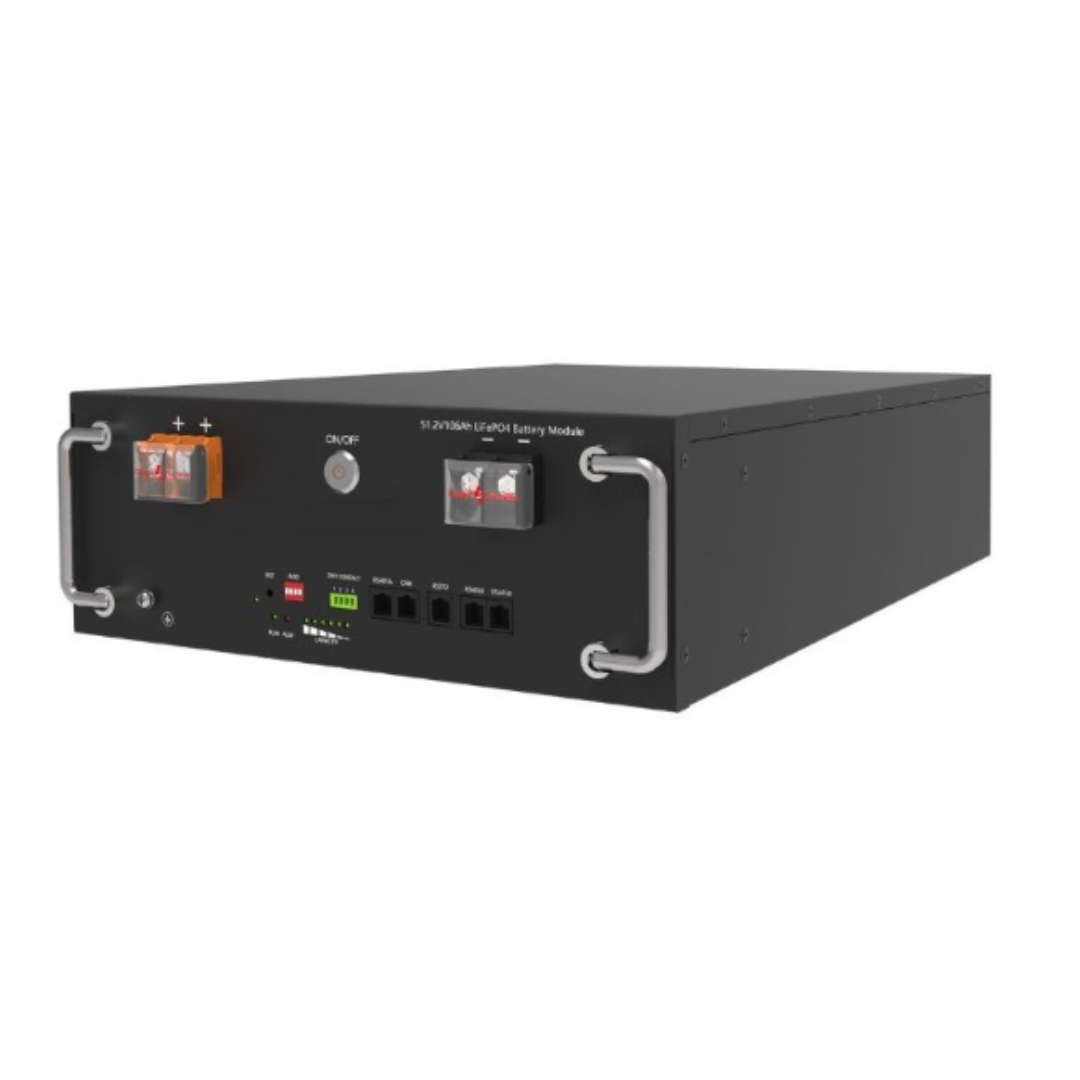

The SVolt 48V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
The SVolt 48V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets - Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
Features:
A-Grade Cell Technology
Maintenance-free
Environmental Friendly
Wide Variety of Markets
Renewable Energy
7 Protection Features
Built-in Battery Management System
Mountable
Battery Specifications:
Battery Type-Chemistry: LiFePO4
Nominal Voltage: 48V
Nominal Capacity: 106Ah
Energy Density: 5.1kWh
Terminal Type: M6
Terminal Torque: 8.5NM
Case Material: Metal
BMS Built-in: Yes
Internal Resistance: - Efficiency - Round Trip: >99.5%
Self Discharge per Month: - Max Parallel Connectors: 16Pcs
Series Connections: Not Allowed
Cycle Life(0.2C, 25 C @ 80% DOD): >4000 Cycles
Discharge Temperature: -20 C to 65 C
Charge Temperature: 0 C to 45 C
Storage Temperature: -10 C to 30 C
BMS Characteristics:
Primary Charging Protection: (Current: 80A) (Delay Time:1000ms)
Secondary Charging Protection: (Current: 100A) (Delay Time:500ms)
Primary Discharging Protection: (Current: 110A) (Delay Time: 5s 2s)
Secondary Discharging Protection: (Current: 120A) (Delay Time: 5s 2s)
Over Charge Voltage Protection: (Voltage: 58.4V) (Delay Time:500ms)
Over Discharge Voltage Protection: (Voltage: 43.2V) (Delay Time:500ms)
Temperature Protection: (Temperature: 95 C) (Recover: 85 C)
Communication Port: Major RS485,CAN/Dryport
What's in the box
1 x 48V 106Ah Lithium Battery
1 x Red (Positive) Battery Cable
1 x Black (Negative) Battery Cable
1 x Coms cable
2 x Brackets
1 x Manual
5 Years Repair Warranty
