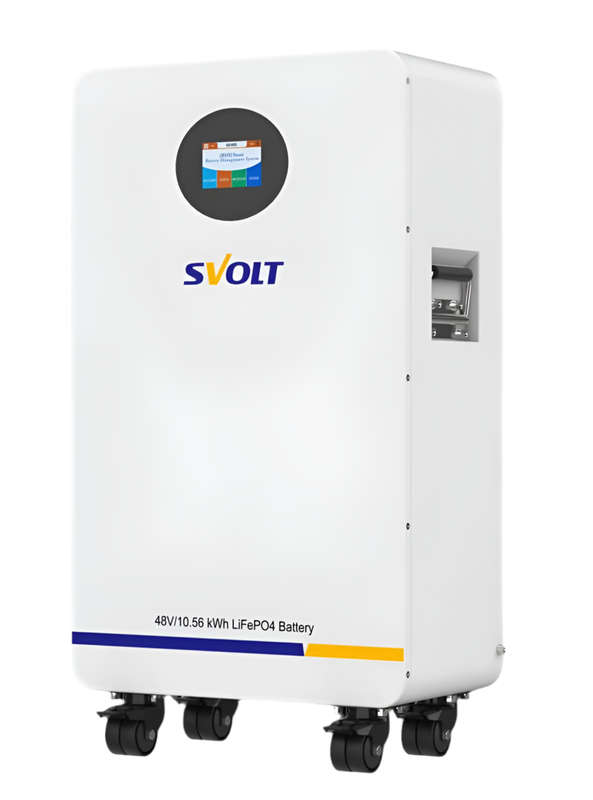

SVOLT 48V 220Ah 10.56 kWh A-Grade Wall Mount Lithium Battery
The SVolt 48V 220AH 10.56KWH Lithium Battery SCN48220 is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval Motor Group which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
The SVOLT A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
FEATURES
- A-Grade Cell Technology
- Maintenance-free
- Environmental Friendly
- Wide Variety of Markets
- Renewable Energy
- Built-in Battery Management System
- 5-year Warranty

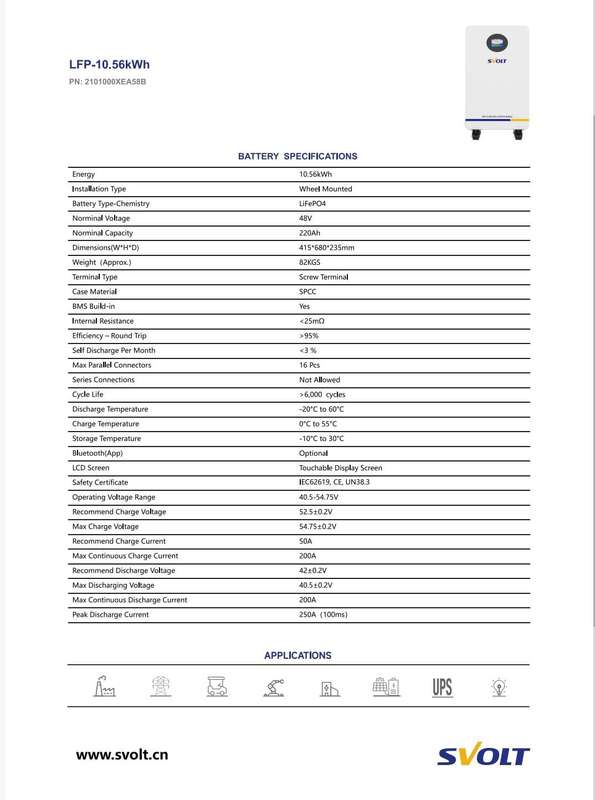

SPECIFICATIONS
- Energy: 10.56kWh
- Battery Type-Chemistry: LiFePO4
- Nominal Voltage: 48V
- Nominal Capacity: 220Ah
- Rated Energy: 10.56kWh
- Terminal Type: SCREW
- Case Material: SPCC
- BMS Built-in: Yes
- LCD Screen
- Internal Resistance: <25m
- Efficiency Round Trip: >95%
- Self Discharge per Month: <3%
- Max Parallel Connectors: 16Pcs
- Series Connections: Not Allowed
- Cycle Life: >6000 Cycles
- Discharge Temperature: -20°C to 60°C
- Charge Temperature: 0°C to 55°C
- Storage Temperature: -10°C to 30°C
- Voltage Window: 40.5V 54.75V
- Recommended Charge Voltage: 52.5 ±0.20V
- Max Charge Voltage: 54.75 ±0.20V
- Recommended Charge Current: 50A
- Max Continuous Charge Current: 200A
- Recommended Discharge Voltage: 42 ±0.20V
- Max Discharging Voltage: 40.05 ±0.20V
- Max Continuous Discharge Current: 200A
- Peak Discharge Current: 250A
- Dimensions: 415 X 680 X 235 MM
- Weight: 82KG
5 Years Warranty
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
