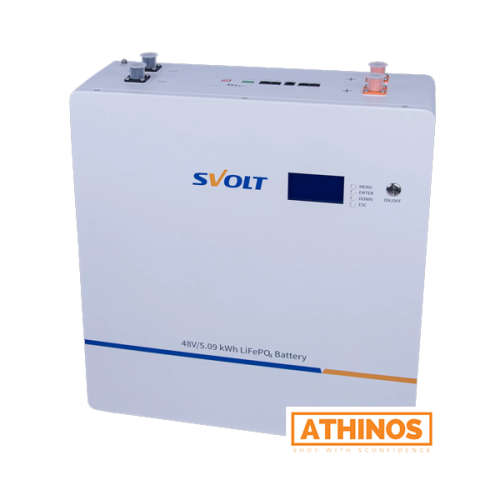

SVOLT 5.09Kwh 48V 106AH Lithium Battery
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
The SVOLT 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval Motor Group which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
The SVOLT 48V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets - Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
- Energy:5.09kWh
- Installation Type: Wall Mounted
- Battery type-Chemistry: LiFePO4
- Nominal Voltage:48V
- Nominal Capacity :106Ah
- Energy Density:5427 KWh
- Dimensions(LxWxH) :688 x 447 x 211mm
- Weight (Approx.):49.5KGS
- Terminal Type: M6
- Terminal Torque:8.5NM
- Case Material: SPCC
- BMS build-in: Yes
- Internal Resistance:<30mO
- Efficiency - round trip:99%
- Self Discharge per Month:<3%
- Max parallel connectors:16Pcs
- Series connections:Not Allowed
- Cycle life (0.2C, 25C@80% DOD) Discharge Temperature:6000 Cycles
- Charge Temperature :20 C to 65
- Storage Temperature :0C to 50 C
- Bluetooth(App) :Optional
- LCD Screen: Optional
- Heating Function: Optional
- Voltage Window: Optional
- Recommend Charge Voltage:43.2V-58.4V
- Max Charge Voltage:57.60.20V
- Recommend Charge current:58.40.20V
- Max Discharging Voltage:43.20.20V
- Max Continuous Discharge Current :100A
- Peak Discharge Current:150A
Size:
- 688 x 447 x 211 mm
- 49.5 Kg
What's In the Box:
- 1 x SVOLT 48V 106Ah A-Grade Lithium Battery
- 1 x Red (Positive) Battery Cable
- 1 x Black (Negative) Battery Cable
- 1 x Ethernet cable
- 1 x Manual
- 1x Wall Mount Bracket
- 1x Warranty Card
5 Years Warranty
