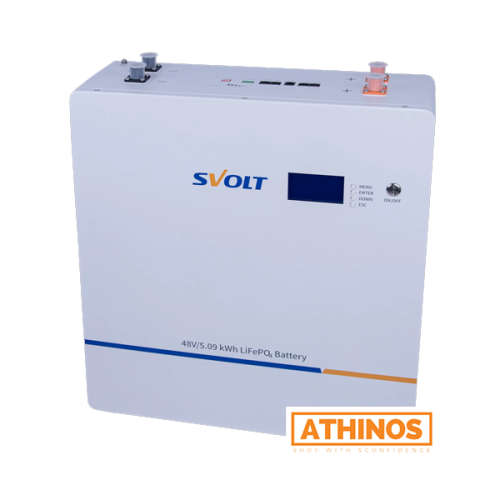

SVOLT 5.09Kwh 48V 106AH Lithium Battery

The SVOLT 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval Motor Group which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.

The SVOLT 48V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets - Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.

• Energy:5.09kWh
• Installation Type: Wall Mounted
• Battery type-Chemistry: LiFePO4
• Nominal Voltage:48V
• Nominal Capacity :106Ah
• Energy Density:5427 KWh
• Dimensions(LxWxH) :688 x 447 x 211mm
• Weight (Approx.):49.5KGS
• Terminal Type: M6
• Terminal Torque:8.5NM
• Case Material: SPCC
• BMS build-in: Yes
• Internal Resistance:<30mO
• Efficiency - round trip:99%
• Self Discharge per Month:<3%
• Max parallel connectors:16Pcs
• Series connections:Not Allowed
• Cycle life (0.2C, 25C@80% DOD) Discharge Temperature:6000 Cycles
• Charge Temperature :20 C to 65
• Storage Temperature :0C to 50 C
• Bluetooth(App) :Optional
• LCD Screen: Optional
• Heating Function: Optional
• Voltage Window: Optional
• Recommend Charge Voltage:43.2V-58.4V
• Max Charge Voltage:57.60.20V
• Recommend Charge current:58.40.20V
• Max Discharging Voltage:43.20.20V
• Max Continuous Discharge Current :100A
• Peak Discharge Current:150A

Size:

• 688 x 447 x 211 mm
• 49.5 Kg

What's In the Box:

• 1 x SVOLT 48V 106Ah A-Grade Lithium Battery
• 1 x Red (Positive) Battery Cable
• 1 x Black (Negative) Battery Cable
• 1 x Ethernet cable
• 1 x Manual
• 1x Wall Mount Bracket
• 1x Warranty Card

5 Years Warranty
