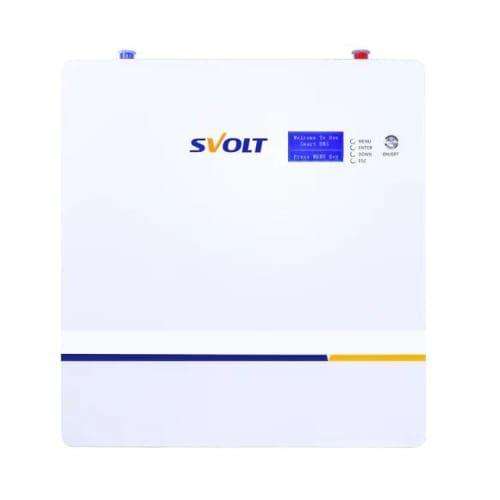

The SVolt 51.2V 106Ah 5.4kw A-Grade Lithium Battery is manufactured by a world-leading manufacturer Svolt which is joined with the Haval groups which we all know are extremely recognized for their vehicles, using A-Grade Battery cells.
Specifications:
Energy: 5.43kWh
Installation Type: Wall Mounted
Battery type-Chemistry: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity : 106Ah
Weight (Approx.): 44KGS
Terminal Type: M6
Terminal Torque: 8.5NM
Case Material: SPCC
BMS build-in: Yes
Internal Resistance:<25mO
Efficiency round trip:97%
Self Discharge per Month:<3%
Max parallel connectors: 16Pcs
Series connections: Not Allowed
Cycle life (0.2C, 25C@80% DOD) Discharge Temperature:6000 Cycles
Charge Temperature :20 C to 65
Storage Temperature :0C to 50 C
LCD Screen: Yes
Voltage Window: Optional
Recommend Charge Voltage: 56.0V
Max Charge Voltage: 58.4V
Recommend Charge current: 50Amp
Max Discharging Voltage: 43.2V
Max Continuous Discharge Current :100A
Peak Discharge Current: 150A
C-Rating: 1C
Whats in the Box?
1 x SVOLT 51.2V 106Ah A-Grade Lithium Battery
1 x Red (Positive) Battery Cable
1 x Black (Negative) Battery Cable
1 x Ethernet cable
1 x Manual
Installation and Warranty Compliance Requirements:
All inverters and batteries must be installed by a qualified electrical wireman or Master Electrician who holds a valid registration with the Department of Labour. Upon completion of the installation, a valid Certificate of Compliance (CoC) must be issued, specifically covering the backup or solar system installation.
All installations must fully comply with the requirements of SANS 10142, including all applicable parts of the standard.
Please note: Warranty claims submitted without the following documentation will be considered invalid and may be rejected:
