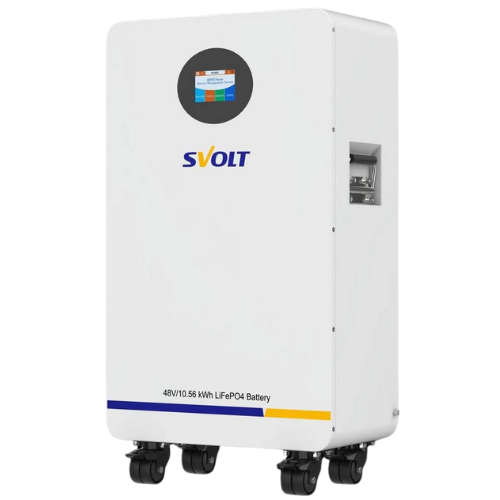

SVolt 48V 220AH 10.56KWH Lithium Battery SCN48220
The SVOLT A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
Product Features
- A-Grade Cell Technology
- Maintenance-free
- Environmental Friendly
- Wide Variety of Markets
- Renewable Energy
- Built-in Battery Management System
- 5-year Warranty
Specifications:
- Energy: 9.6kWh
- Battery Type-Chemistry: LiFePO4
- Nominal Voltage: 48V
- Nominal Capacity: 200Ah
- Rated Energy: 9.6kWh
- Terminal Type: SCREW
- Case Material: SPCC
- BMS Built-in: Yes
- LCD Screen
- Internal Resistance: <25m
- Efficiency Round Trip: >95%
- Self Discharge per Month: <3%
- Max Parallel Connectors: 16Pcs
- Series Connections: Not Allowed
- Cycle Life: >6000 Cycles
- Discharge Temperature: -20°C to 60°C
- Charge Temperature: 0°C to 55°C
- Storage Temperature: -10°C to 30°C
- Voltage Window: 40.5V 54.75V
- Recommended Charge Voltage: 52.5 ±0.20V
- Max Charge Voltage: 54.75 ±0.20V
- Recommended Charge Current: 50A
- Max Continuous Charge Current: 200A
- Recommended Discharge Voltage: 42 ±0.20V
- Max Discharging Voltage: 40.05 ±0.20V
- Max Continuous Discharge Current: 200A
- Peak Discharge Current: 250A
- Dimensions: L 794 x W 499 x H420 mm
- Weight: 101.8Kg
- 5 Years Warranty
