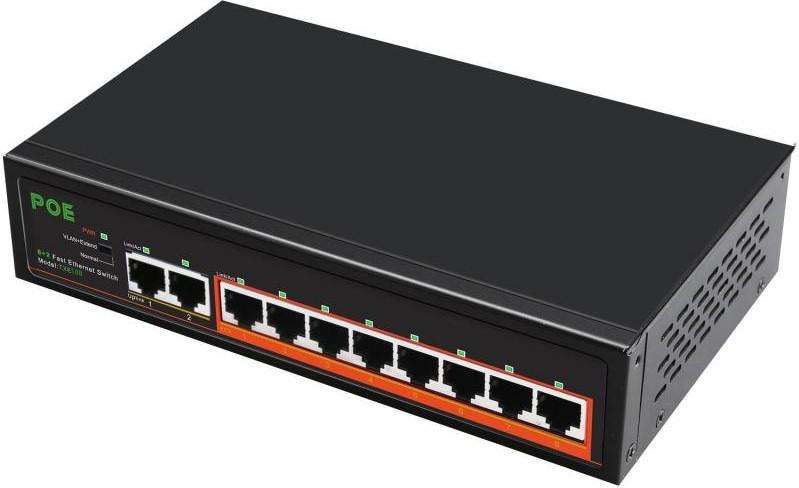

Switch 10 Port - 8 PORT 10/100 PoE + 2 Ports - Unmanaged - TXE188
8-Ports 10/100Mbps PoE + 2-Ports 10/100Mbps
Unmanaged Ethernet Switch
Description
TXE188 is a 10-port 10/100Mbps Desktop PoE Switch provides the seamless network connection
These PoE ports can automatically detect and supply power with those IEEE 802.3at compliant Powered Devices (PDs)
In this situation, the electrical power is transmitted along with data in one single Cable
Allowing you to expand your network where there are no power lines or outlets
here you wish to fix devices such as Aps
IP Cameras or IP Phones, etc
VLAN isolation to meet security monitoring requirements Support extension technology
Data transmission and Power Supply up to 250m
Independent Uplink Port can ensure that the Port can easily cope with sudden high traffic
And ensure that the upstream channel is unobstructed.
TXE188 is easy to install and use. It requires no configuration and installation
With desktop design, outstanding performance and quality
The 10-Port 10/100Mbps Desktop PoE switch is a great selection for expanding your home or office network
Features
Comply with IEEE802.3, IEEE802.3i,IEEE 802.3u,IEEE802.3x,IEEE802.3az,IEEE802.1q Ethernet standards;
Supports IEEE802.3af, IEEE802.3at PoE standards
Supports PoE power up to 30W for each PoE port, all power up to 117W
VLAN isolation to meet security monitoring requirements
Support 10 x10/100Mbps Auto-negotiation RJ45 ports with 8 port PoE function (POE1-8);
Support extension technology, up to 250m transmission distance
Independent Uplink Port can ensure that the Port can easily cope with sudden high traffic
And ensure that the upstream channel is unobstructed
Supports IEEE802.3x flow control for Full Half-duplex Mode and backpressure for Half-duplex Mode
LED indicators for monitoring Port Link / Activity
Internal power supply, exquisite design, suitable for desktop use
Model Name: TXE188
Chipset: IP175G+IP178G+IP808
Standards and Protocols: IEEE802.3,IEEE802.3i, IEEE 802.3u,IEEE802.3x,IEEE802.3az, IEEE802.1q,IEEE802.3af, IEEE802.3at
Interface: 10 x 10/100Mbps Auto-Negotiation Ports
Network Media:
10Base-T: UTP category 3, 4, 5 Cable (maximum 100m)
100Base-Tx: UTP category 5, 5e Cable (maximum 100m)
Transfer Method: Store-and-Forward
PoE Ports(RJ45): 8 x PoE Ports
Power Pin Assignment: 1/2(+),3/6(-)
PoE Budget: 117W
Indicators
Per Device: Power
Per Port: Link/Activity
Power Supply: AC:100-240V/50-60Hz
Dimensions ( W x D x H ): 200 x 117 x 43mm
Environment:
Operating Temperature: 0?-40?
Storage Temperature: -40?-70?
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing
