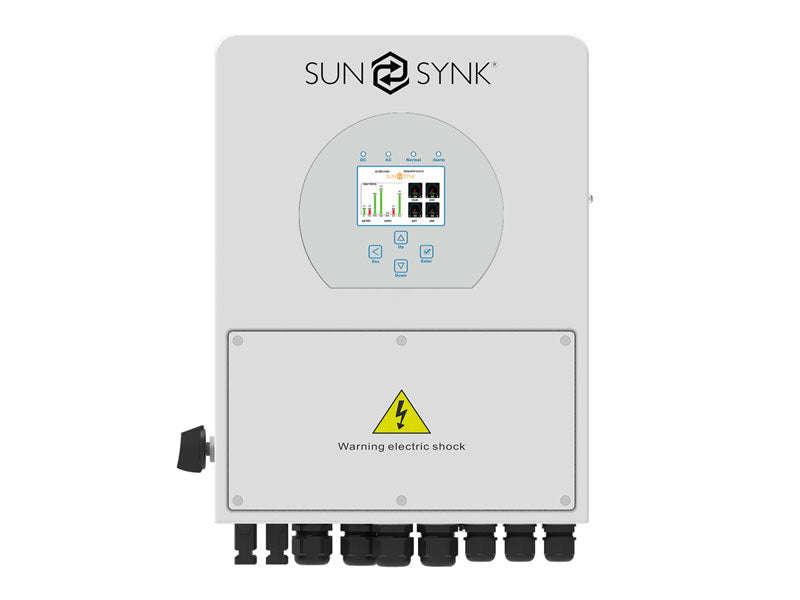

Sunsynk 3.6kW Hybrid Inverter
Reduce your electricity costs by managing power from various energy sources, including solar panels, batteries, the national electricity grid, a generator, or even a wind turbine — all with a Sunsynk Hybrid Inverter. It's ideal for home and business and scalable so that you can expand it as required.
The Sunsynk Single-Phase Hybrid Inverter is a highly efficient power management tool that allows the user to hit those 'parity' targets by managing power-flow from multiple sources such as solar, mains power (grid), and generators, and then effectively storing and releasing power as and when utilities require.
Start with UPS backup power (with batteries and inverter only) and add panels later.
• Start with Grid-tied (with panels and inverter only) and add batteries later.
• Install a complete Hybrid system including batteries and solar panels which can be expanded, or…
• Go totally off the grid with a completely independent system
Ideal for powering TVs, decoders, computer equipment, and appliances that consume more energy such as fridges, microwaves, washing machines, dishwashers, kettles, and toasters.
Sunsynk 3.6kW Hybrid Inverter specifications
Inputs:
PV solar
AC grid power
Batteries
Generator
Output voltage — 220/230/240Vac
Continuous power — 3600W
Backup power — 3600W
DC — 48V
Battery charger — 90A
Transfer time <= 10ms
Battery charger — adjustable for battery bank size and type
Can charge Lead Acid and Li-ion batteries
Li-ion battery charging self-adapts to BMS
Solar Input
Max power input — 4680W
Max V DC input — 370V (100V~500V)
Max current input — 2 x 11A
MPPTs — 1
MPPT Range — 125~425V
Multi-core processor design and advanced MPPT control
High reliability and response speed
Programmable export
Works parallel on or off-grid
Single-phase operation
Multiple operating modes:
Grid-tie only
Hybrid
Off-grid
Battery only
Sunsynk 3.6kW Hybrid Inverter Features
INTERACTIVE
— Easy and simple to understand display
— Supporting Wi-Fi or GSM monitoring
— Visual power flow screen
— Smart settable 3-stage MPPT charging for optimized battery performance
— Auxiliary load function
— Parallel / multi-invert function grid-tied and off-grid
COMPATIBLE
— Compatible with main electrical grid voltages or power generators
— Compatible with wind turbines
— 220V single phase, pure sinewave inverter
— Self-consumption and feed-in to the grid
— Auto restart while AC is recovering
— Auto earth bond feature (Via a relay)
CONFIGURABLE
— Fully programmable controller
— Programmable supply priority for battery or grid
— Programmable multiple operation modes: on-grid/off-grid & UPS
— Configurable battery charging — current/voltage based on applications by LCD setting
— Configurable AC / solar / generator charger priority by LCD setting
SECURE
— Overload/over-temperature/short-circuit protection
— Smart battery charger design for optimized battery protection
— Limiting function installed to prevent excess power overflow to the grid
APPLICATIONS
— Marine (vessel power management)
— Power shedding (home/office/factory)
— UPS (fuel-saving systems)
— Remote locations with solar and wind generators
— Building sites
— Military locations
— Telecommunication
