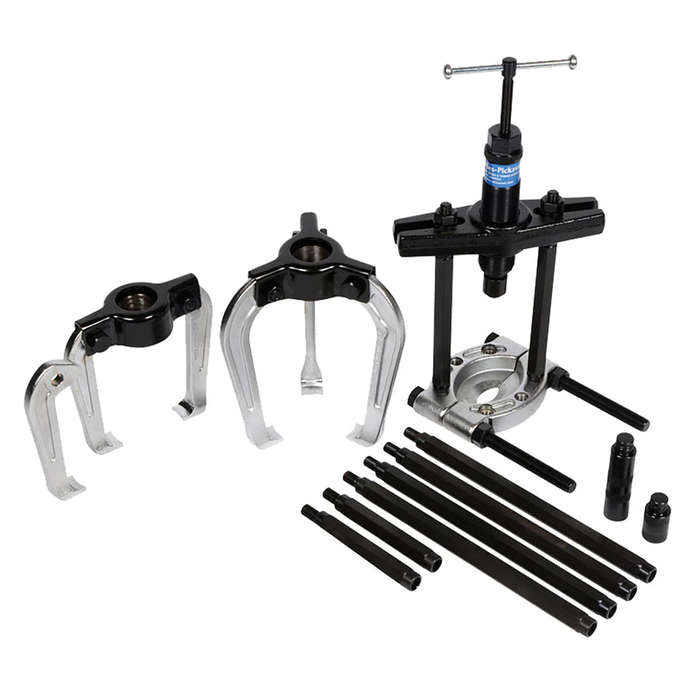

SYKES PULLER KIT STD 155200
Hydraulic 1500series
Removes gears, bearings, pulleys andsprockets
Wide range of automotive andindustrial applications
Powered by 1500 series hydraulicram
Safe and easy touse
8 tonnes of force with minimumeffort
Easy to adjust
Non-twisting for improvedstability
Supplied with nose piece for use oncentered shafts
Self centering and selflocking
Redesigned legs, improvingstrength
The separator is a versatile toolwhere a long reach is required to draw a bearing from ashaft
The tapered edges of the bearingseparator provide all round support and can fit behind bearings wherenormal puller legs cannot gain access
Makes 4 different twin/triple legpullers, plus bearing separator kit
Supplied in metalcase
Dimensions:
Puller Spread Min - Max:50-150mm
Puller Reach Max:150mm
External Spread Min - Max:20-105mm
External Reach Max:876mm
Contents:
1500 Series Hydraulic Ram With NosePiece
15241200 1 x TwinHead
15341300 1 x TripleHead
15242200 1 x Ram Extension -50mm
15262400 1 x Ram Extension -100mm
15242400 3 x Legs -100mm
15262600 3 x Legs -150mm
19311200 1 x TwinBeam
09510000 1 x Separator20-105mm
09311500 2 x MainRods
09311900 4 x ExtensionRods
09312300 2 x Extension Rods 5inch
CODE: SYK155200
BARCODE: 5012737796007
HEIGHT: 16.0cm
LENGTH: 49.0cm
WIDTH: 16.0cm
WEIGHT: 17.52kg
SPREAD MINIMUM TOMAXIMUM: 50 150mm
REACH MAXIMUM: 150mm
EXTERNAL SPREAD MIN TOMAX:20 - 105mm
EXTERNAL REACH: 876mm
