SYKES TESTER COOLING SYSTEM CAR 331900
319 Series - Universal Expansion PlugSystem
For use with hand pump or airlineadaptor
Also compatible with 318 Seriesthreaded caps and adaptors to extend applicationscoverage
Features a self-testing metal handpump and precision gauge, with specially designed pressure release valvefor safe depressurising of cooling systems
Designed to cover three types ofsystem test:- Leak Detection - Temperature Testing - Thermostat andThermo-Switch Operation
The special patented design of theExpansion Plugs, features a tapered rubber cone to fit a variety ofradiator and header tank neck diameters. With a range of just 5 plugsizes, it is possible to cover a very wide range of applications, fromsmall cars to commercial vehicles & heavy plant.
The Safety Retaining Clamp has beenspecially designed to provide added safety in certain applications, e.g.plastic expansion bottles, situations of extreme cold, or very highwater temperatures, and when it is not practical to fully clean thesurfaces of the aperture neck. The Safety Retaining Clamp greatlyreduces the risk of the expansion clamp slipping from its fixedposition, particularly under high pressure, and it is recommended to beused for all applications.
Blanking caps are also provided withthe 319Series System Testers, in order to perform radiator sealing tests, offthe vehicle. Temperature testing can be carried out by using thethermometer in conjunction with the appropriate expansion plug and byobserving the change (or lack of change) in the fluid temperature and bymeasuring the rate of change of temperature.

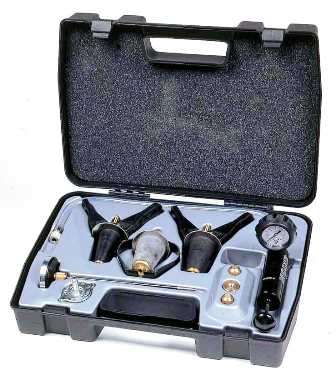

33190000 Contents:
Pump, gauge and hoseassembly
Universal expansion plugs x 3- applications range from 21 to 50mmapertures
Safety Retaining clamp -Thermometer
Small bayonet adaptor for Japanese /Korean models with bayonet cap fitting
Optional Extra:
- 03191500 - Stepped Expansion Plugfor Mercedes - apps range from 27 to 44mm
CODE: SYK331900
BARCODE: 5012737009824
HEIGHT: 12.5cm
LENGTH: 46.0cm
WIDTH: 32.5cm
WEIGHT: 3.49kg
