SYKES TESTER COOLING SYSTEM PLANT
319 Series - Universal Expansion PlugSystem
For use with hand pump or airlineadaptor - for HGV
Also compatible with '318 Seriesthreaded caps and adaptors to extend applicationscoverage
Features a self-testing metal handpump and precision gauge, with specially designed pressure release valvefor safe depressurising of cooling systems
Designed to cover three types ofsystem test:- Leak Detection - Temperature Testing - Thermostat andThermo-Switch Operation
The special patented design of theExpansion Plugs, features a tapered rubber cone to fit a variety ofradiator and header tank neck diameters. With a range of just 5 plugsizes, it is possible to cover a very wide range of applications, fromsmall cars to commercial vehicles and heavyplant.
The Safety Retaining Clamp has beenspecially designed to provide added safety in certain applications, e.g.plastic expansion bottles, situations of extreme cold, or very highwater temperatures, and when it is not practical to fully clean thesurfaces of the aperture neck
The Safety Retaining Clamp greatlyreduces the risk of the expansion clamp slipping from its fixedposition, particularly under high pressure, and it is recommended to beused for all applications
Blanking caps are also provided withthe 319 Series System Testers, in order to perform radiator sealingtests, off the vehicle
Temperature testing can be carriedout by using the thermometer in conjunction with the appropriateexpansion plug and by observing the change (or lack of change) in thefluid temperature and by measuring the rate of change oftemperature

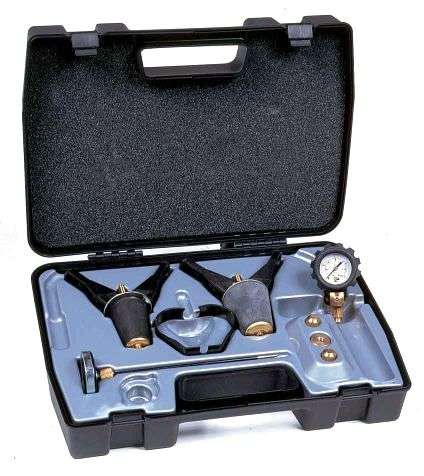

33190500 Contents
Airline adaptor and gauge assembly,for fast pressurising of large capacity systems on commercial vehiclesand plant equipment
Universal expansion plugs x 2 (appsrange from 33 to 65mm apertures)
Safety Retainingclamp
Thermometer
Optional Extra:
03191500 - Stepped Expansion Plug forMercedes - apps range from 27 to 44mm
CODE: SYK331905
BARCODE: 5012737009831
HEIGHT: 12.0cm
LENGTH: 46.0cm
WIDTH: 33.0cm
WEIGHT: 2.71kg
