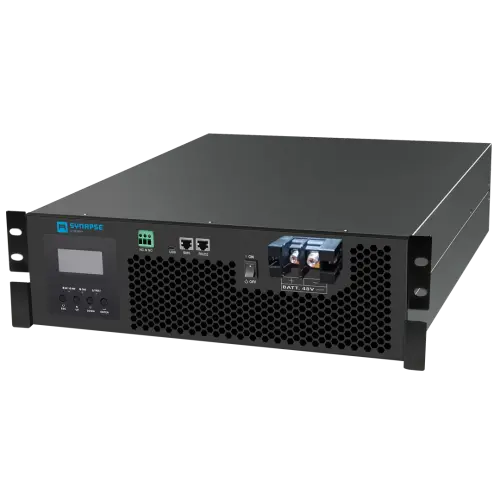

The Synapse Offgrid Inverter - 5kW 48V DC, 80A MPPT, Rack Mount comes equipped with a unique operating system and a built-in MPPT for solar applications. In addition, there is an optional AC input that will allow a battery bank to be charged by a grid or generator connection.
These units are not capable of feeding back into the grid. Perfect for a start-up system to reduce the effects of load shedding
FEATURES
Pure sine wave inverter
Battery equalization function
Optimizes battery performance
Assembled with an internal anti-dust kit for harsh environments
Rack mounted design for convenient mounting
SPECIFICATIONS
Brand Synapse
Technical Specifications
Rated Power 5000W
Voltage 230V Ac
Surge Power 5000Va
Efficiency 90-93%
Transfer Time 20Ms For Home Appliances
Waveform Pure Sine Wave
Battery
Battery Voltage 48V Dc
Floating Charge Voltage 54V Dc
Overcharge Protection 66V Dc
Solar Charger & Ac Charger
Max Pv Array Power 4000W
Max Pv Array Voc 145V Dc
Mppt Range @ Operating Voltage 60 115V Dc
Max Solar Charger Current 80A
Max Ac Charger 60A
Physical
Dimensions(D X W X H) 100 X 300 X 440Mm Rack Mounted
Weight 13.5Kgs
Communication Interface Usb / Rs232 / Rs485 / Bluetooth / Dry-Contact
Environment 5% To 95% Relative Humidity (Non-Condensing)
Operating Temperature -10C To 55C
Storage Temperature -15C To 60C
Current: 60A
Brand New in the Box
