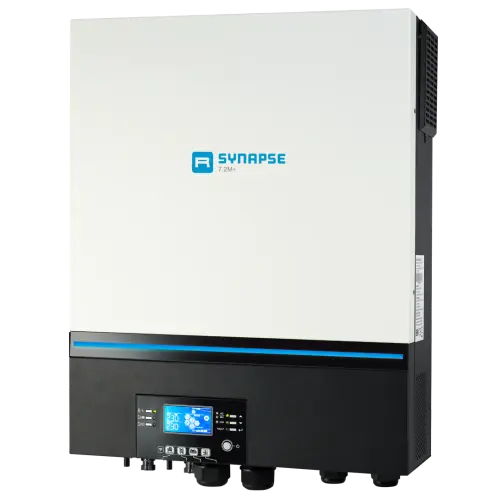

SYNAPSE 7.2M+ OFFGRID INVERTER, 8KW DUAL MPPT, 7.2KW, 48VDC

Parameters:

Rated Power: 7200W

Voltage: 230V AC

Surge Power: 15000VA

Efficiency: 90-93%

Transfer Time: 20ms for home appliances

Waveform: Pure sine wave

Battery:

Battery Voltage: 48V DC

Floating charge Voltage: 54V DC

Overcharge Protection: 66V DC

Important Note: When using this inverter with Lithium batteries, care should be taken to correctly size the bank, taking into account the maximum current which this inverter requires VS what the battery can deliver. Maximum continuous current per inverter = +-160A, max. peak current = +-320A (depending on battery SOC / terminal voltage).

Solar Charger & AC Charger:

Max PV Array Power: 2 x 4000W

Max PV Array VOC: 500V DC

MPPT Range @ Operating Voltage: 90 ~ 450V DC

Max Solar Charger Current: 80A

Max AC Charger: 80A

Max total Charge: 80A

General:

Parallel operation: Up to 6 units

Battery BMS compatibility: Pylontech, Soltaro, WECO

Physical:

Dimensions(D x W x H): 147.4 x 432.5 x 553.6mm

Weight: 18.4kgs

Communication Interface: USB / RS232 / RS485 / Wifi /  Dry-contact

Environment:

Relative Humidity: 5% to 95%  (Non-condensing)

Operating Temperature:-10°C to 50°C

Storage Temperature: -15°C to 60°C

Brand New in the Box
