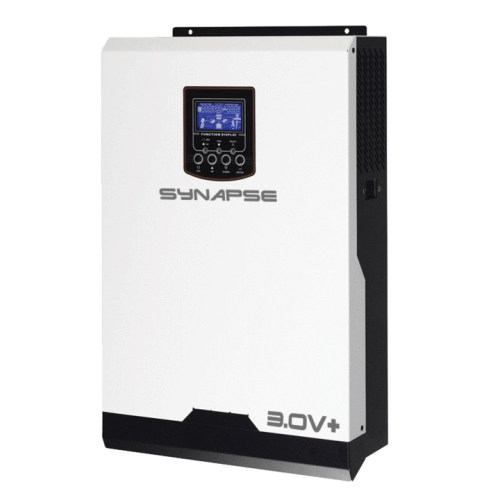

Synapse Offgrid Inverter 3kw 24V DC, 1000W MPPT
Synapse Offgrid Inverters:
Comes equipped with a unique operating system and a built-in MPPT for solar applications. In addition, there is an optional AC input that will allow a battery bank to be charged by a grid or generator connection.
These units are not capable of feeding back into the grid. Perfect for a start-up system to reduce the effects of load shedding.
-Pure Sine wave inverter
-Battery equalization function to optimize battery performance
-Assembled with an internal anti-dust kit for harsh environments
Technical Specifications:
Rated Power: 2400W
Voltage: 230VAC
Surge Power: 6000VA
Efficiency: 90-93%
Transfer Time: 20ms for home appliances
Waveform: Pure sine wave
Battery:
Battery Voltage: 24V DC
Floating charge Voltage: 27V DC
Overcharge Protection: 32V DC
Solar Charger & AC Charger:
Max PV Array Power: 1000W
Max PV Array VOC: 102V DC
MPPT Range@ Operating Voltage: 30 ~ 80V DC
Max Solar Charger Current: 40A
Max AC Charger: 25A
Physical:
Dimensions (Dx W x H): 88 x 225 x 320mm
Weight: 6kgs
Communication Interface: USB / RS232
Environment:
Humidity: 5% to 95%Relative Humidity (Non-condensing
Operating temperature: -10°C to 55°C
Storage Temperature: -15°C to 60°C
