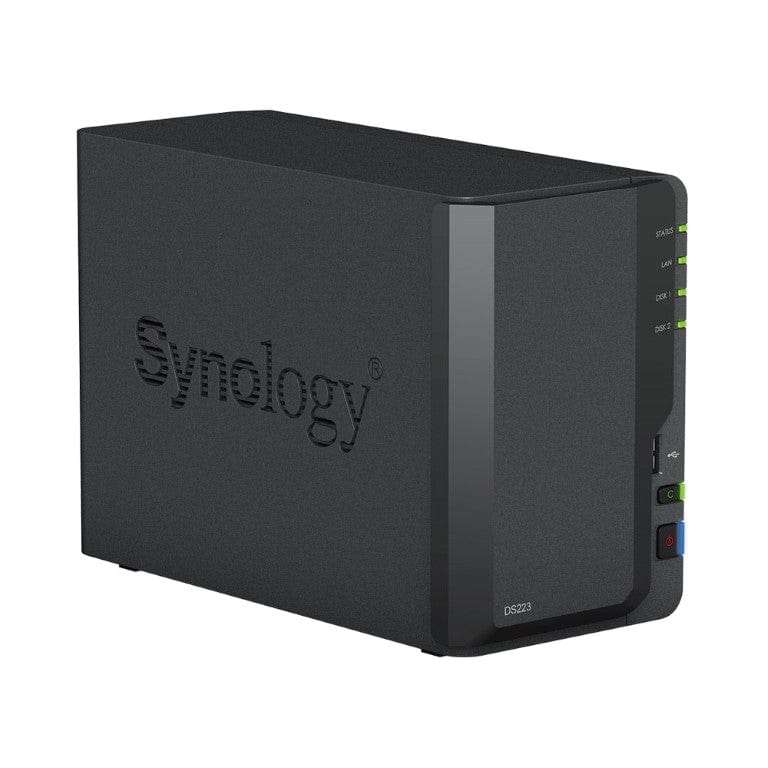

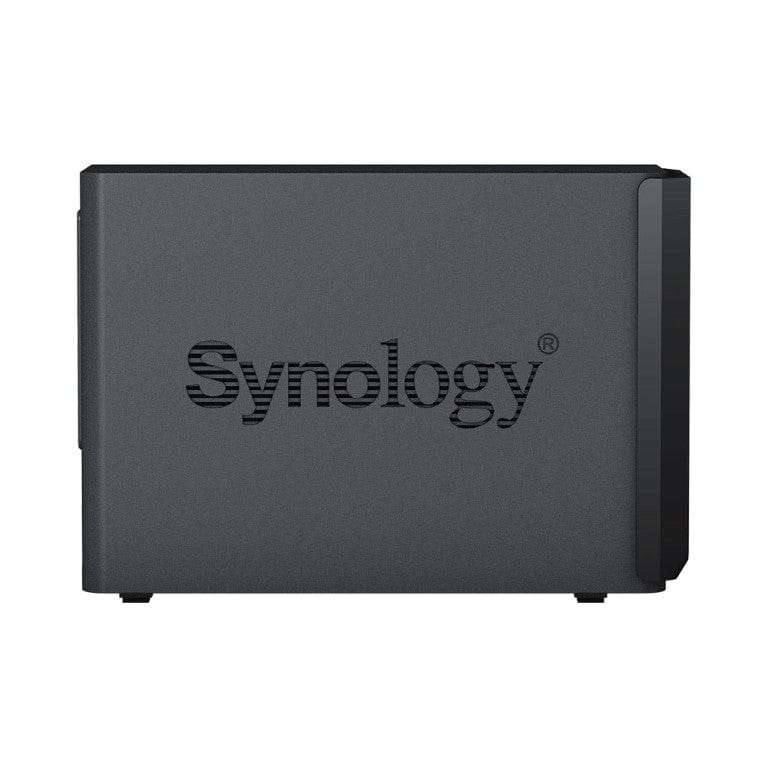

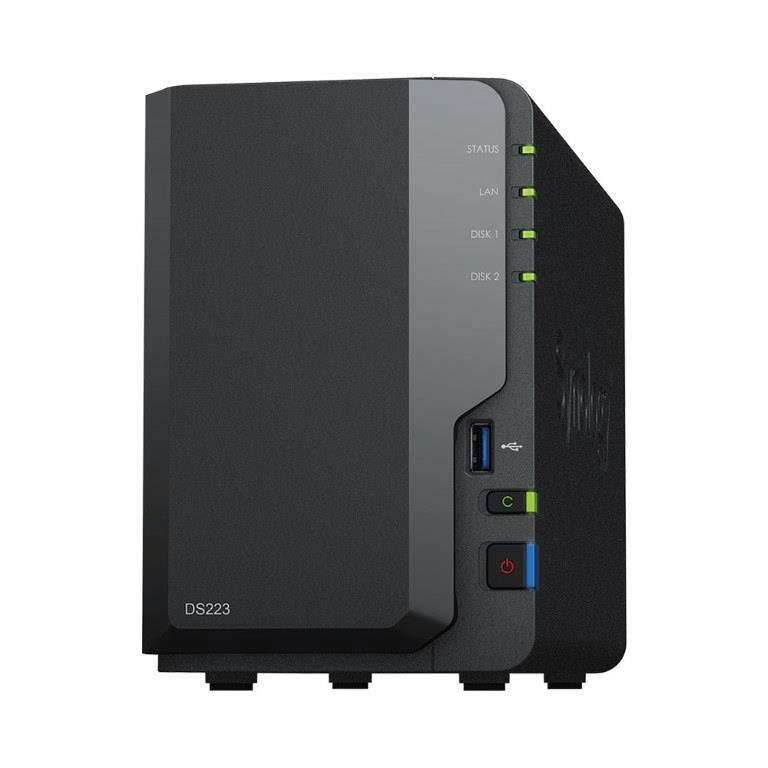

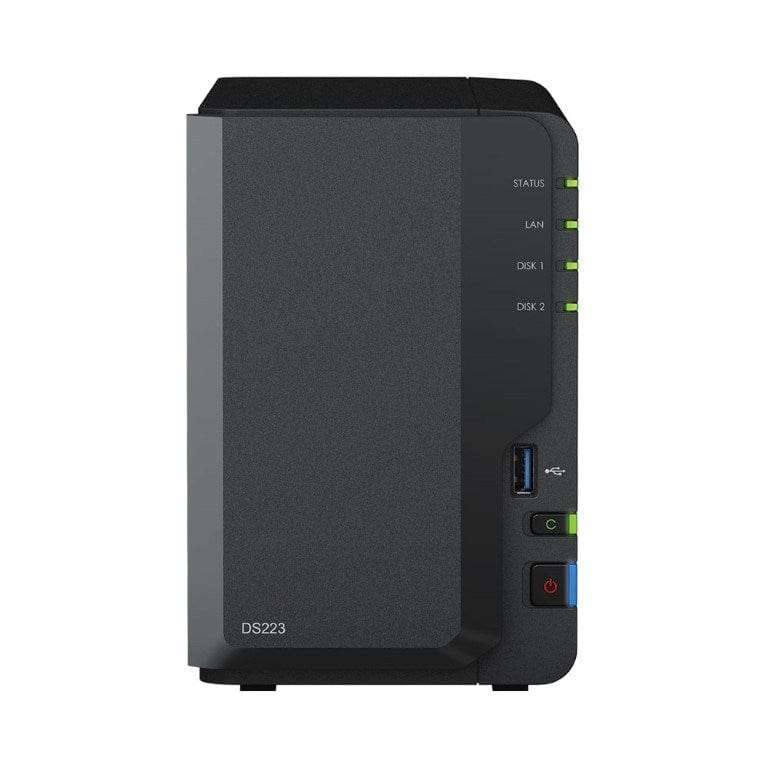

Synology DiskStation DS223 Realtek RTD1619B 2-bay Tower NAS

Synology DiskStation DS223 Realtek RTD1619B 2-bay Tower NAS

Get your data under control

Consolidate files from various sources into your own private cloud. The DS223 keeps the process simple and offers everything you need to keep your data safe and organized.

Private cloud made easy

Import data from PCs, Macs, and other external storage devices at a 14% faster rate and keep all your devices in sync for smoother file management.

Access from any device

Get to your files from PC, Mac, Linux, Chromebook, Android, iOS, or any device equipped with a browser. Keep your data private or easily share it using secure links.

Save storage space

Enable on-demand mode to download files onto your Windows PC or Mac only when you access them. Pin the most important ones or the ones you access more frequently for convenient offline accessibility.

Integrate with the cloud

Sync files between your private cloud and public cloud services, including Google Drive, Dropbox, and Microsoft OneDrive. Retain local copies of your cloud data for centralized management and data ownership.

Sync across locations

Say goodbye to long waits while downloading or uploading files. Continuously synchronize content between two Synology devices to enable fast local access at any location, no matter the amount of data.

Your data is in safe hands

Not all data storage is created equal. Synology DiskStation Manager (DSM), the operating system that powers the DS223, leverages the efficient Btrfs file system to protect your data against data corruption and roll back any accidental or malicious changes thanks to the snapshot technology.

Versatile NAS for the modern home

Configure your DS223 to best suit your needs thanks to a host of complete solutions designed for every scenario.

Photo management

Store and organize photos, albums, and other media with smart and intuitive features. Leverage privacy-focused options to share media securely with friends, family, or colleagues.

Works best with Synology drives

Engineered to handle intensive 24/7 workloads, Synology drives consistently deliver top-grade performance.

Specifications:

CPU

CPU ModelRealtek RTD1619B
CPU Quantity1
CPU Architecture64-bit
CPU Frequency4-core 1.7 GHz
Hardware Encryption Engine

Memory

System Memory2 GB DDR4 non-ECC
NotesSynology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays: 2
Hot Swappable Drive*: yes
Compatible Drive Type* (See all supported drives)

• 3.5" SATA HDD
• 2.5" SATA SSD

External Ports

• RJ-45 1GbE LAN Port: 1
• USB 3.2 Gen 1 Port*: 3
• USB Copy: yes

Internal Drives

• Btrfs
• EXT4

External Drives

• Btrfs
• EXT4
• EXT3
• FAT
• NTFS
• HFS+
• exFAT

Appearance

• Size (Height x Width x Depth): 165 mm x 108 mm x 232.7 mm
• Weight: 1.28 kg

Others

• System Fan: 92 mm x 92 mm x 1 pcs
• Brightness Adjustable Front LED Indicators: yes
• Noise Level: 14.6 dB(A)
• Scheduled Power On / Off
• Wake on LAN / WAN
• Power Supply Unit / Adapter: 60 W
• AC Input Power Voltage: 100V to 240V AC
• Power Frequency: 50/60 Hz, Single Phase
• Power Consumption: 17.343 W (Access)
• 4.08 W (HDD Hibernation)
• British Thermal Unit: 59.19 BTU/hr (Access)
• 13.92 BTU/hr (HDD Hibernation)

Fan Speed Mode

• Full-Speed Mode
• Cool Mode
• Quiet Mode
