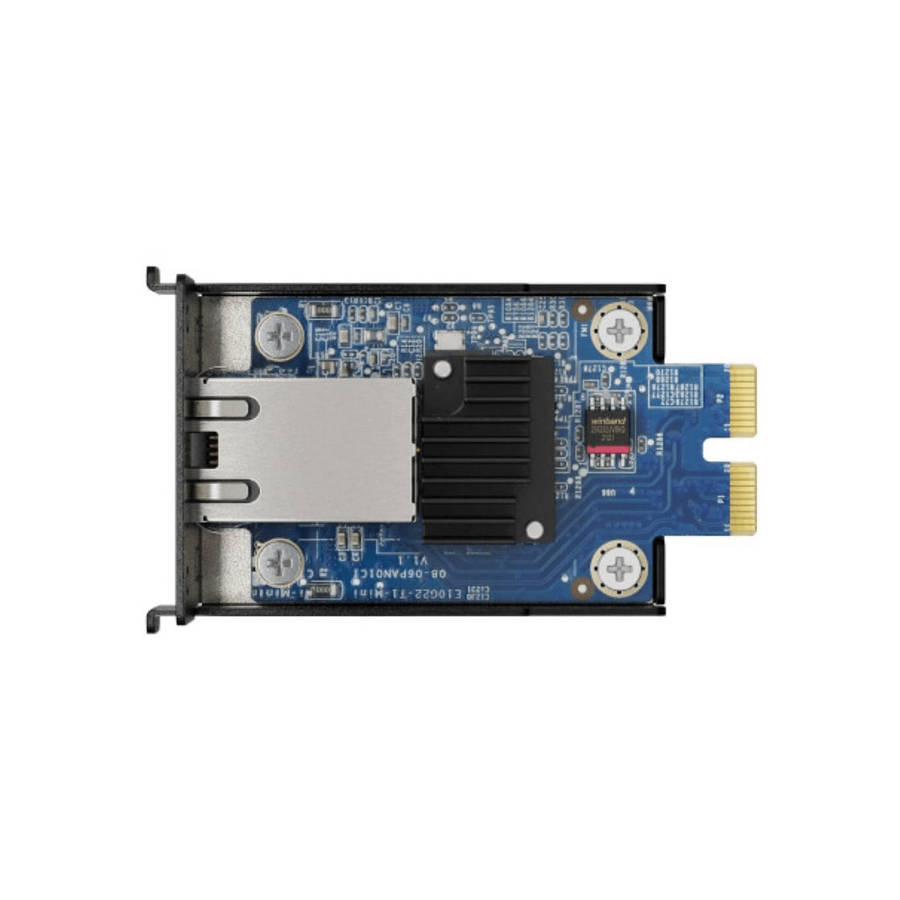

Synology E10G22-T1 Mini Internal Network Module

Maximize bandwidth to tackle heavy-duty applications

The Synology E10G22-T1-Mini Network Upgrade Module is designed to easily and quickly upgrade your Synology system with 10GbE connectivity.Simple installation, low implementation cost, and support for nearly any network environment makes it the ideal solution for small businesses and home users looking to maximize the performance potential of their deployments.

Simple installation

Install the E10G22-T1-Mini through the dedicated and easily-accessible network upgrade slot to instantly upgrade bandwidth availability in Synology servers featuring compact-size enclosures.

Multi-gig support

Integrate into any RJ-45 network environment with autonegotiation between 10, 5, 2.5, 1 Gbps, and 100 Mbps data rates based on actual network conditions.

Specifications:

• Host Bus Interface: PCIe 3.0 x2
• Size (Height x Width x Depth): 26.37 mm x 45.38 mm x 75.7 mm
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to 60°C (-5°F to 140°F)
• Relative Humidity: 5% to 95% RH

Network

Data Transfer Rates10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps

IEEE Specification Compliance

• IEEE 802.3x Flow Control
• IEEE 802.3u Fast Ethernet
• IEEE 802.3ab Gigabit Ethernet
• IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet
• IEEE 802.3an 10Gbps Ethernet

Supported Features

• 9 KB Jumbo Frame
• TCP/UDP/IP Checksum Offloading
• Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s
• TCP Segmentation Offload (TSO)
• Large Send Offload (LSO)
• Receive Side Scaling (RSS)
• Generic Receive Offload (GRO)
• Generic Segmentation Offload (GSO)
