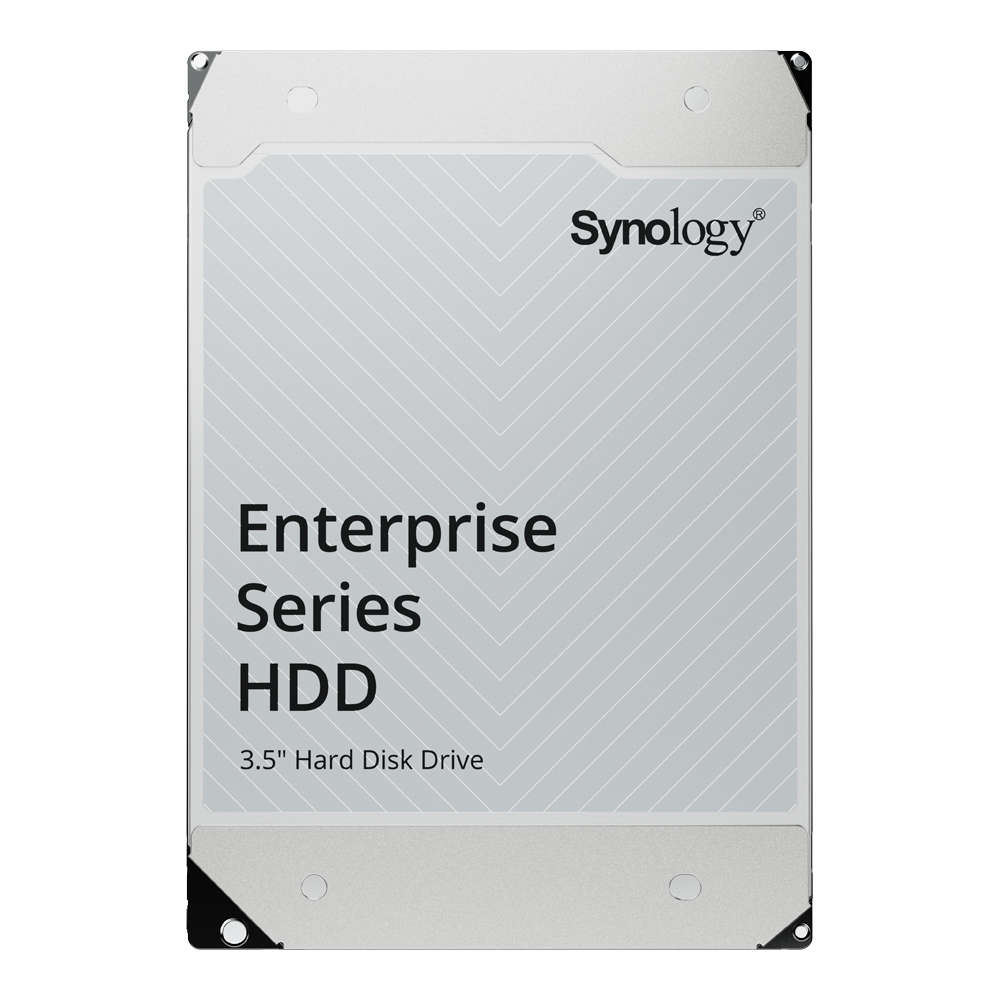

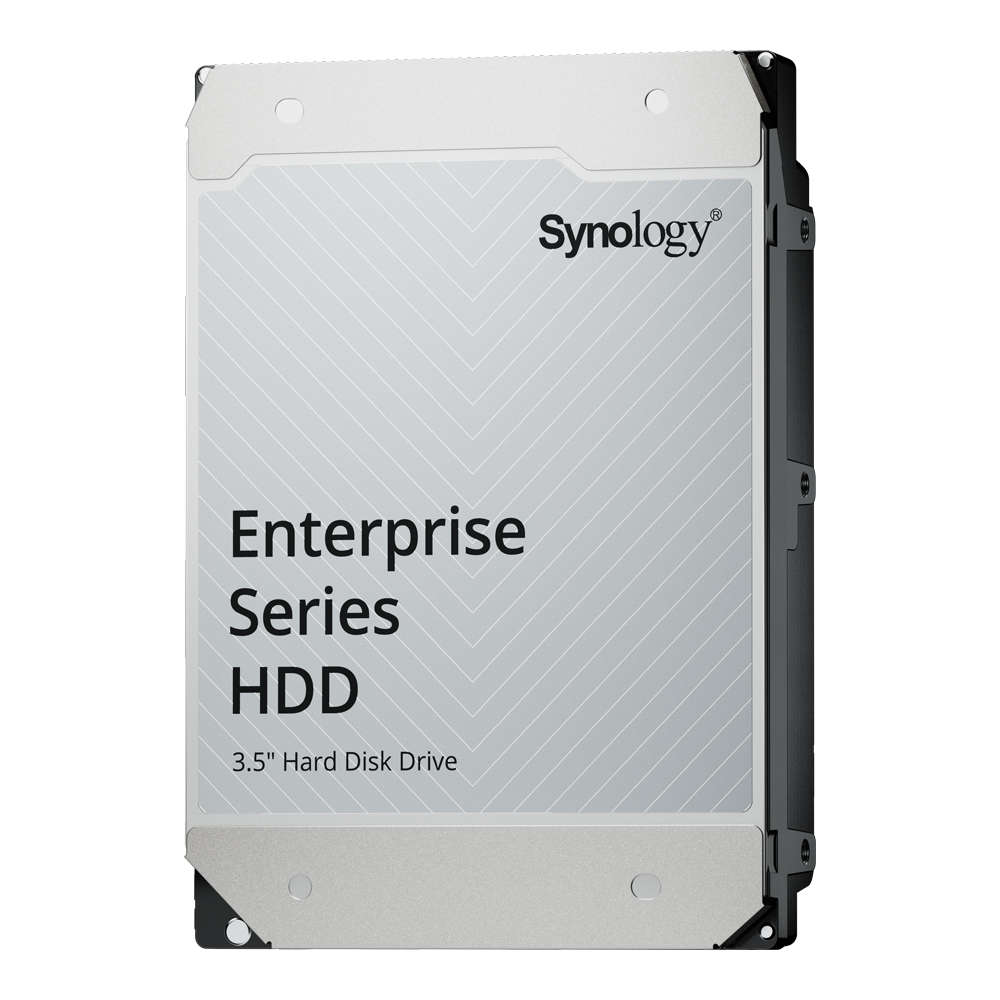

Synology HAT5310 20TB 3.5" Enterprise Series SATA Hard Drive for Synology Systems

Built for Demanding Workloads and High-Capacity Arrays

Synology HAT5300 Series HDDs are engineered for demanding, high-volume workloads, delivering up to 35% greater multi-client sequential read performance compared to third-party drives. Built for unwavering reliability, these CMR-based drives have undergone over 500,000 hours of rigorous validation and are backed by a 5-year Synology limited warranty.

FEATURES

Enterprise Reliability and Durability - For demanding 24/7 environments, rated for up to 2.5 million hours MTTF and up to 550TB per year workloads
Persistent Write Cache Technology - Minimises the chance of data corruption in the event of sudden power loss
Better Together - Firmware and DiskStation Manager (DSM) optimisations improve multi-client sequential read performance by up to 35%
One-Stop Update - Get automatic firmware updates together through DSM updates, reducing the need for additional maintenance sessions
For Synology, by Synology - Stringent validation and up to 500,000 hours of tests ensures maximum reliability in Synology systems

SPECIFICATIONS

Capacity: 20TB
Form Factor: 3.5"
Interface: SATA
Sector Size: 512e
Drive Design: Helium-Sealed
Rotational Speed: 7,200rpm
Interface Speed: up to 6.0Gb/s
Cache: 512MB
Maximum Sustained Data Transfer Speed: Up to 281MB/s
Mean Time Between Failures (MTBF): 2,500,000 hours
Workload Rating: 550TB/year
Supply Voltage: 12V ±10% / 5V +10/-7%
Idle Power (Average): 4.38W
Average Operating Power: 8.11W
Operating Temperature: 5~60°C (No Condensation)
Non-Operating Temperature: -40~70°C
Operating Humidity: 5~90% RH (No Condensation)
Non-Operating Humidity: 5~95% RH (No Condensation)
Dimensions (H × W × D): 26.1 × 101.85 × 147mm
Weight: 720g
Certifications: CE, RCM, BSMI, KC, UL, TUV, ICES, UKCA, RoHS, Morocco Mark
