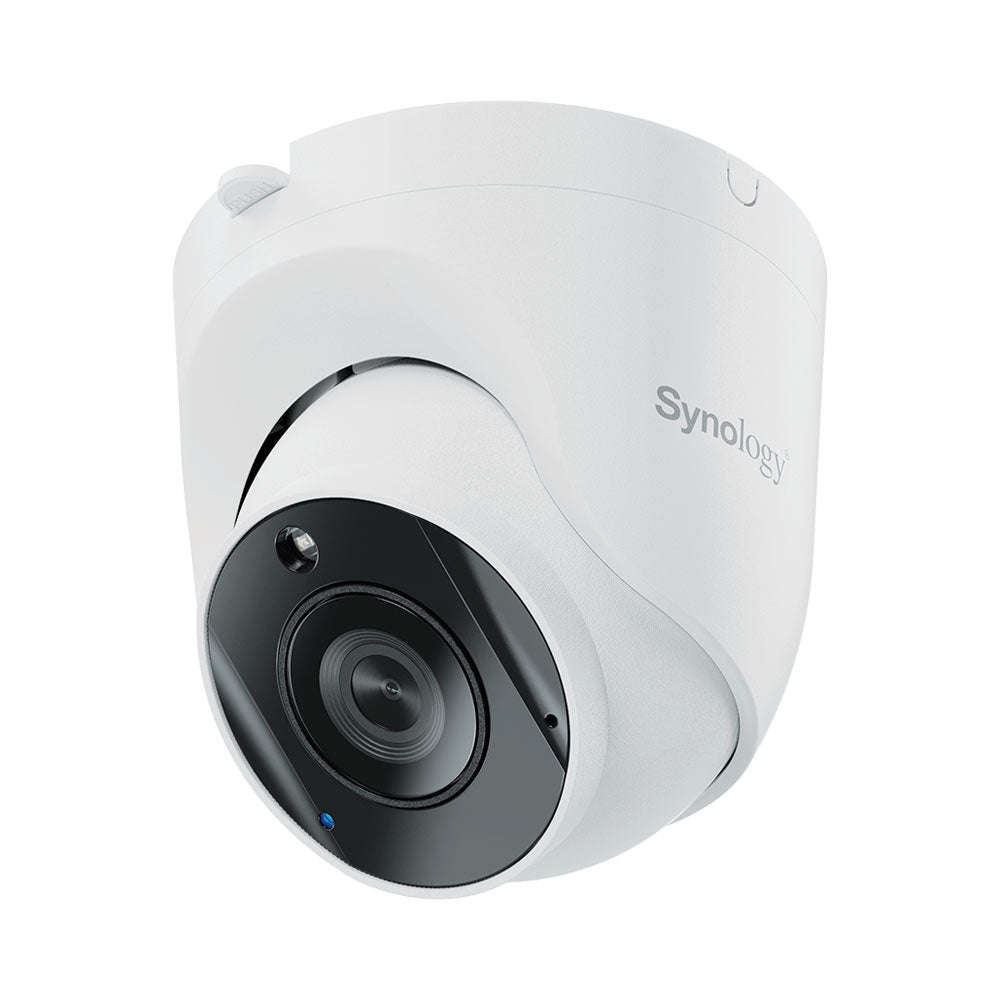

FEATURES
Crisp Video, Night and Day - 5MP sensor with wide-angle lens, recording @30FPS, and high-power IR LED for 30m of night vision
Edge AI Detection and Search - On-camera AI powers people and vehicle detection, intrusion detection and instant search
No Device License Required - Camera requires no Surveillance Station Device License or activation
Failover Edge Recording - Supports failover recording onto microSD, in case of network failure
Security and Compliance - Suitable for sensitive applications thanks to HTTPS/SRTP support and US NDAA/TAA compliance
SPECIFICATIONS
Hardware SPECIFICATIONS
Optical
Image Sensor: 1/2.7"
IR LED Wavelength: 850nm
Max. IR Distance: 30m (0.001 lux)
Shutter Speed: 1/16000 s to 1/30 s
Day & Night: Automatically Removable Infrared-Cut Filter
Lens
Lens TypeF: ixed Focal
Focal Length: 2.8mm
Field of View: 110° H, 56° V, 132° D (LDC ON)
DORI: D: 60m, O: 24m, R: 12m, I: 6m
Aperture: F1.8
Video
Max. Video Resolution: 2880×1620 @30FPS
Multi-Exposure HDR: Yes
DNR: 3DNR, 2DNR
Audio
Microphone: Yes
I/O
Ethernet: 1× RJ45 10M/100M Ethernet Port
Reset: Yes
On-Board Storage: 1× MicroSD Card Slot, Support Micro SDHC/SDXC Card up to 128GB
Supported File Format: exFAT
Note: SD card is not included
Power Supply
IEEE 802.3af Type 1 Class 3 or 12V DC
Note: Compatible DC power adapter: 12V/1A (Ø2.1mm)
The product does not include a PoE switch or a 12V DC power adapter. Please purchase separately.
General
Form Factor: Turret
Dimensions: Ø97×88mm
Weight: 387g
Temperature
Operating Condition: Starting Temperature: -30°C to 50°C
Operating Temperature: -30°C to 50°C (IR Off)
Operating Temperature: -30°C to 40 °C (IR On)
Operating Humidity: 5%~95% (Non-Condensing)
Storage Condition: Storage Temperature: -40°C to 60°C
Storage Humidity: 5%~95% (Non-Condensing)
Certifications
FCC, CB, IC, CE, UKCA, BSMI, VCCI, RCM, KC, JATE
Environment: REACH Compliant, WEEE Compliant, ROHS Compliant
Waterproof: IP67
Vandal: IK10
NDAA Compliant: Yes
TAA Compliant: Yes
Warranty: 3-Years
Software SPECIFICATIONS
Video & Audio
Main Stream: 2880 × 1620 @30FPS; 2560 × 1440 @30FPS; 2304 × 1296 @30FPS; 1920 × 1080 @30FPS; 1280 × 720 @30FPS
Sub Stream: 1920 × 1080 @15FPS; 1280 × 720 @30FPS
Video Format: H.264, H.265
Bitrate Control: VBR, MBR
Audio Compression: G.711
Audio Denoise: Yes
Image Adjustment: Brightness, Contrast, Sharpness, Saturation, White Balance, Exposure Control, High Dynamic Range (HDR), 3D/2D Noise Reduction, 50/60 Hz Flicker Reduction, Day/Night Mode, Overlay
Day/Night Mode: Auto, Day, Night, Schedule
Video Orientation: Mirror, Flip, Rotation (0°, 90°, 180°, 270°)
Privacy Mask: Removeable/Unremovable Mode, up to 5 zones
Max RTSP Connections: 4
Analytics
Event Analytics: Audio Detection, Tampering Detection, Motion Detection
People & Vehicle: People Detection, Vehicle Detection, Crowd Detection, Loitering Detection
Intrusion: One-Way or Two-Way
Instant Search: Motion, Vehicle, People
Security
IP Filter: Auto Block, Allow/Block list
Connection Management: Yes
Firmware Update: Automatically Update to the Important Version, Automatically Update to the Latest Version, Manual Upload
Signed Firmware: Yes
HTTPS: Yes
SRTP: Yes
Storage Management
Storage: SD Card & Synology NAS
SD Card Recording Mode: Event Analytics, Disconnected with NAS
Note: SD Card capacity under 128GB is tested by Synology
Camera Web Interface
Liveview: Yes
Network: Auto Block, Allow/Block List, Connection Management, Fixed IP/DHCP
System: Reset, Restart, Manual Firmware Upgrade, DST, Time Zone, NTP Server
Camera Log Export: Yes
Supported Browsers: Google Chrome
Supported Language: English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, , Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, , , , ,
Software Requirement
Surveillance Station: Surveillance Station 9.1 or Higher
Surveillance Station Client: Surveillance Station Client Version 2.1.0 or Higher
DS Cam: Android DS cam 3.7.0 or Higher, iOS DS cam 5.6.0 or Higher
Camera Tool: 1.0.0
Note: Built-in Surveillance Device License
