Brand New & Sealed with Manufacturer Warranty

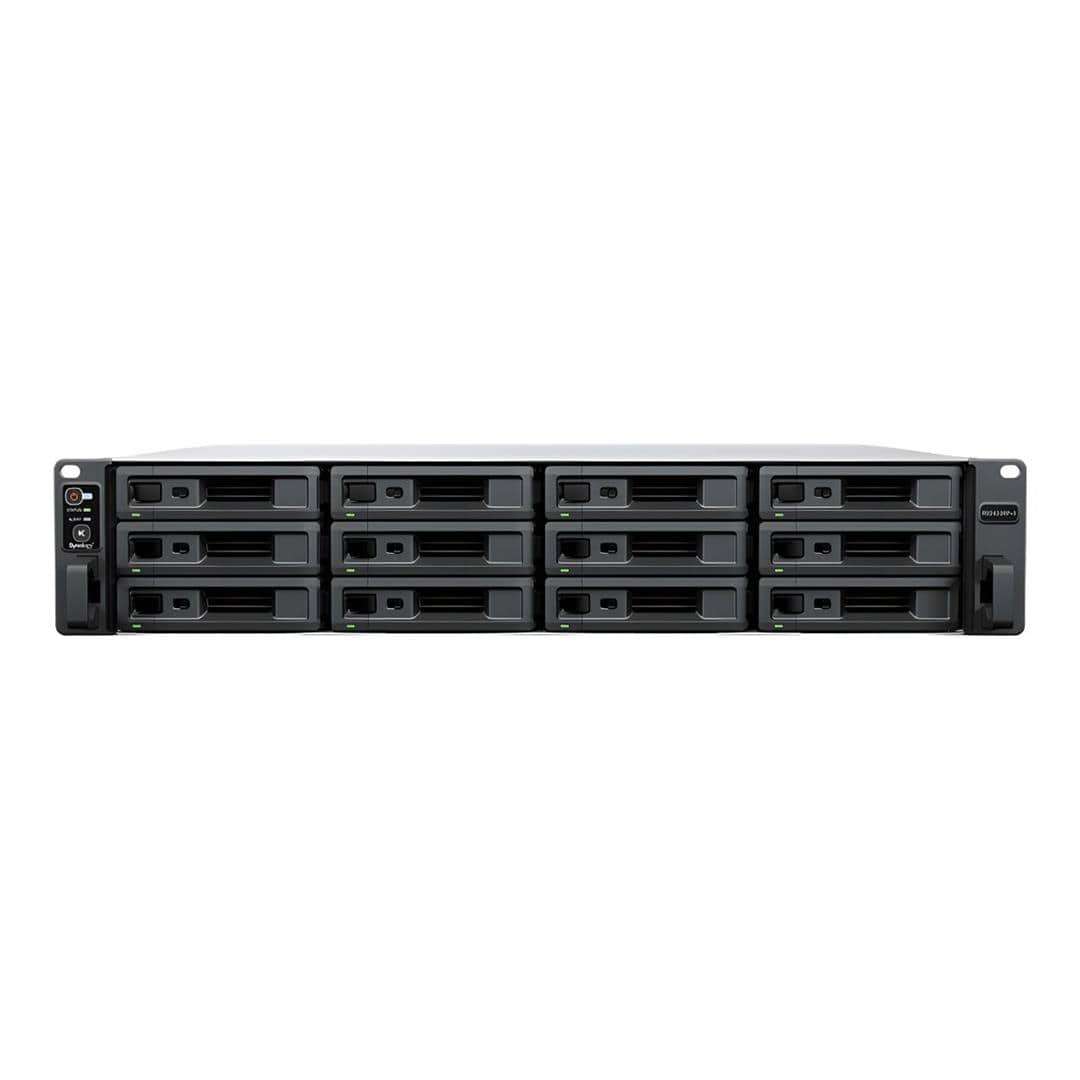

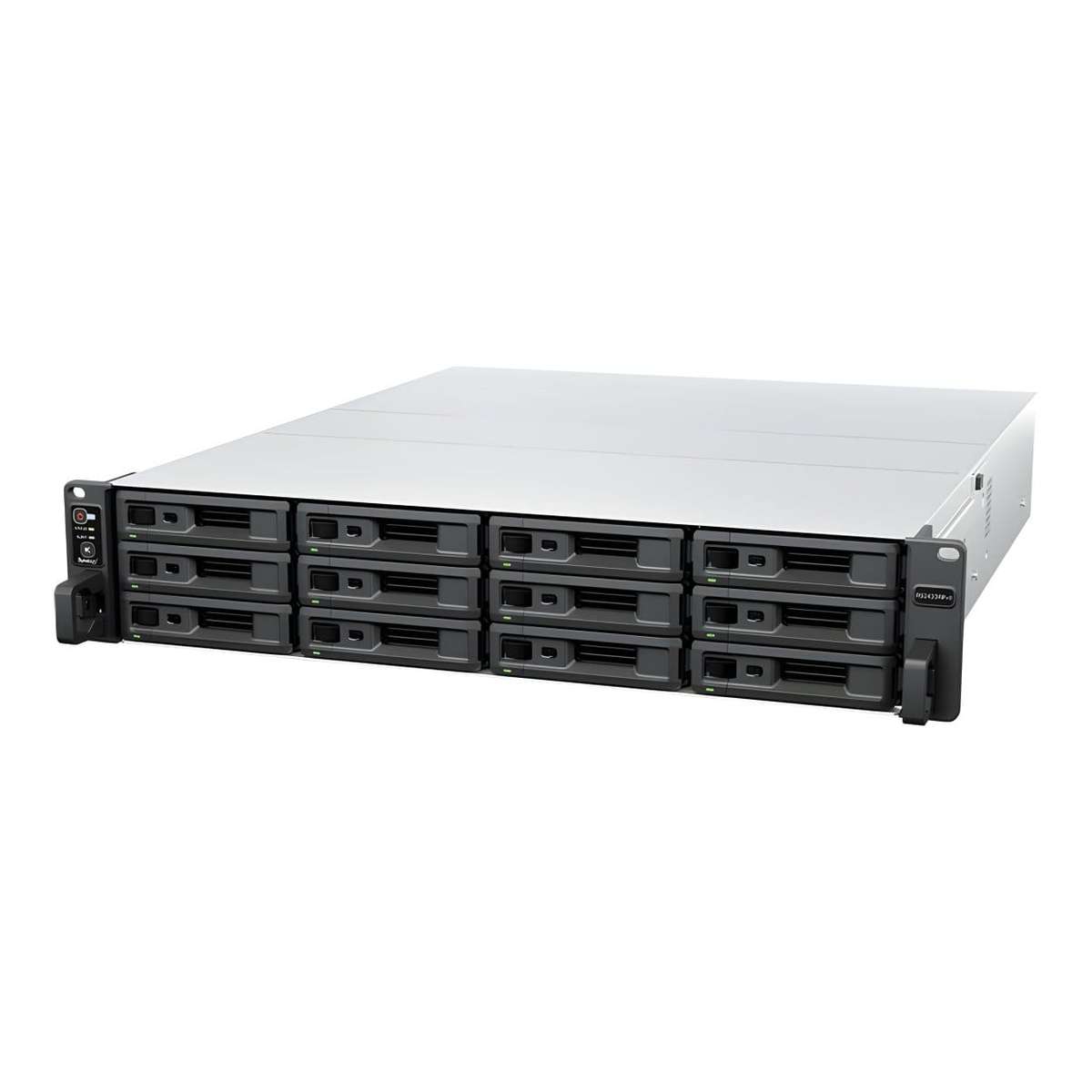

Synology RackStation RS2423RP+II 12-Bay NAS Enclosure
Faster and more responsive
The RS2423RP+II offers exceptional performance with over 155K/79K random read/write IOPS and up to 3,500/1,700 MB/s sequential read/write throughput.2 They are the perfect cost-effective file management and sharing solution for SMBs and come equipped with advanced backup capabilities designed for businesses with expanding data needs.
Features:
Business-ready
Over 3,500/1,700 MB/s seq. read/write, built-in 10GbE, and up to 240 TB raw storage before expansion.
Flexible configuration
Add 12 extra drive bays, 1/10/25GbE ports, and SSD cache volumes whenever needed.
Versatile applications
Back up 300 endpoints, manage 75 IP cameras, or safely sync and share files between devices and sites.
Designed for reliability

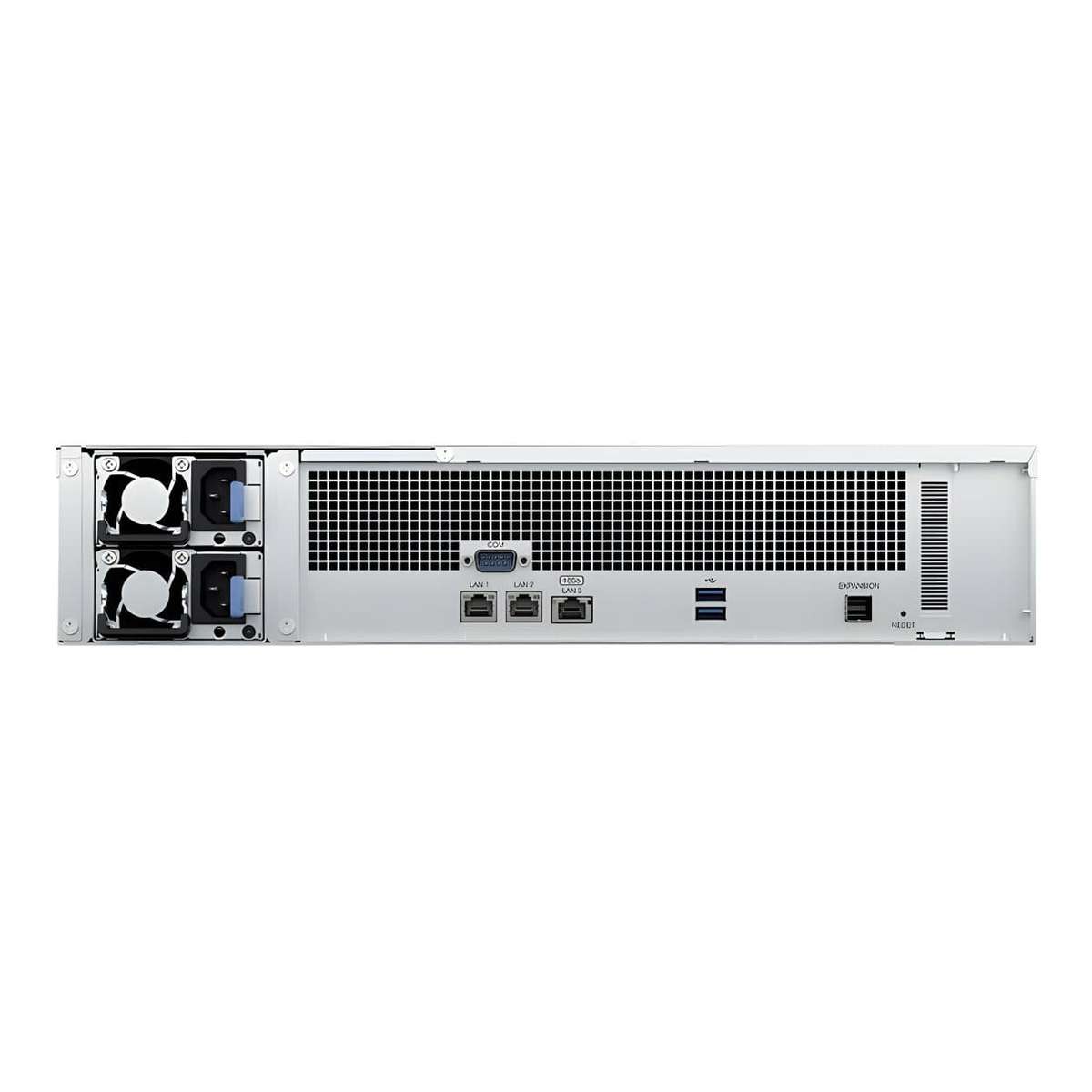

The RS2423RP+II comes with one 10GbE RJ-45 port and two Gigabit RJ-45 ports, which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Two RS2423RP+II units can be paired using Synology High Availability to form a reliable active-passive server cluster, maximizing service uptime.
The RS2423RP+II also features redundant and hot-swappable power supply units to protect service continuity in case there are issues with one power source.
Room for expansion
Easily adjust the 2U 12-bay RS2423RP+II to match the usage of your environment, whether it needs performance, faster networking, or higher storage capacity.
Versatile storage for businesses
The RS2423RP+II is ideal for small to medium-sized businesses and branch offices seeking a high-performing, reliable, and cost-efficient storage solution for file management, data backup, and surveillance.
Intuitive storage for on-site and remote teams
Provide secure and convenient cross-platform file access, sharing, and synchronization across multiple locations.
Smart and scalable surveillance
Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.
Simple-to-deploy local surveillance
Wide device compatibility
Connect up to 75 IP cameras from a selection of over 8,600 validated models thanks to Synology Surveillance Station's wide camera compatibility.
Multi-platform convenience
Monitor live streams or watch recordings from web browsers, desktop clients, or the DS cam mobile app.
Secure and private storage
Footage is stored locally for easier compliance with data protection regulations and further protected from unauthorized access with industry-standard AES-256 encryption.
Flexible monitoring of multiple locations
Assisted camera deployment
Automatically locate new cameras within a set IP range, and configure units in batch via spreadsheet import or replicating settings to new cameras.
Centralized management and monitoring
Stay on top of your deployment by previewing triggered events directly on multi-floor or multi-location maps, with online map integration for Google Maps and OpenStreetMap.
Time-saving video analytics
Take advantage of intelligent monitoring features such as motion detection, no-idle zones, foreign object detection, and anomaly detection that cater to common surveillance scenarios.
Technical Specifications:
Processor
CPU Model
AMD Ryzen V1780B
CPU Quantity
1
CPU Cores
4
CPU Threads
8
CPU Architecture
64-Bit
CPU Frequency
3.35 GHz (Base) / 3.6 GHz (Turbo)
Hardware Encryption Engine
Supported
Memory
Installed Memory
8 GB DDR4 ECC UDIMM
Pre-Installed Memory Configuration
8 GB (1 × 8 GB)
Memory Slots
2
Maximum Memory Capacity
32 GB (2 × 16 GB)
Storage
Drive Bays
12
Maximum Drive Bays With Expansion Unit
24 (RX1223RP × 1)
Supported Drive Types
Hot-Swappable Drives
Supported
External Ports
LAN Ports
USB Ports
2 × USB 3.2 Gen 1
Expansion Ports
1
Expansion Port Type
Mini-SAS HD
PCIe Expansion
PCIe Slot
1 × PCIe Gen3 ×8 Slot (×4 Link)
System And Cooling
System Fans
3 × 60 mm × 60 mm
Fan Speed Modes
Easy Replacement System Fan
Supported
Power Recovery
Supported
Scheduled Power On / Off
Supported
Wake On LAN / WAN
Supported
Noise Level
56.2 dB(A)
Power
Power Supply
550 W
Redundant Power Supply
Supported
AC Input Voltage
100 V To 240 V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
Heat Dissipation
Physical Specifications
Form Factor
2U Rackmount
Dimensions (H × W × D)
88 × 482 × 578 mm
Weight
11.9 kg
Rack Installation Support
4-Post 19" Rack (Rail Kit Sold Separately)
Environmental
Operating Temperature
0 °C To 35 °C (32 °F To 95 °F)
Storage Temperature
-20 °C To 60 °C (-5 °F To 140 °F)
Operating Humidity
8% To 80% RH
Storage Hum...
