Description :

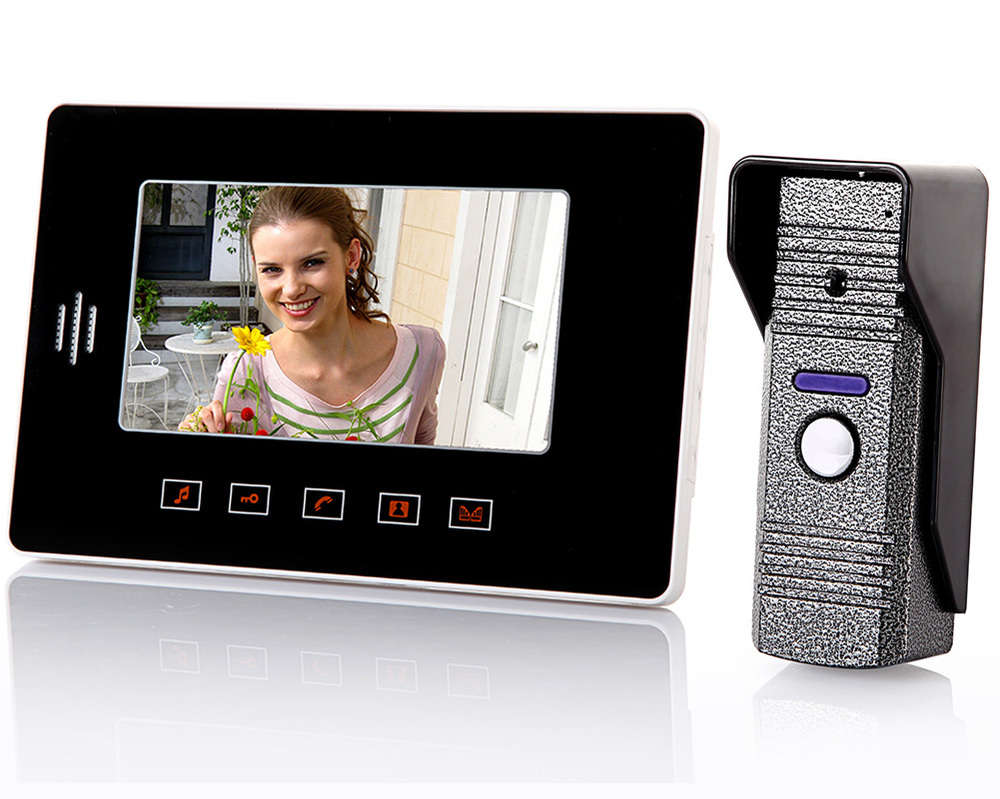

SYSD 7inch Video Door Phone Home Intercom Doorbell SY807MJ11
It is the latest popular, fashional, goodlooking and convenient door phone kit. Which has a large7inchscreen and provides a beautiful vision and safe feeling with a very simple installation and usage.
It adopts advanced technology and the latest computer chips which highly improves the stability and durability of the system.
The design of ultrathin wall mounting will also make this product light and convenient.
As to the applications, it can be widely used in apartments, villas, hotels and offices etc.
The funtions mainly include hands-free monitor, two-way intercom, high-definition visibility, lock control, infrared night-vision outdoor station, adjustable intercom volume and screen color of the product. More details are shown as follow.
Features :
7 inch color TFT LCD with sensitivity touch panel. No radiation, low power consumption. Resolution 960*480
Infared LEDs for night vision, more convenient.
Rainproof cover design, antioxidative Outdoor Unit with piano bakes lacquer panel.
16 kinds of rings for selection
The Volume, brightness and contrast can be adjusted
Piano bakes lacquer panel design on indoor unit, more fashionable and luxury
Hands free intercom, one-button touch makes perfect experience.
Support maximum 1 outdoor unit with 4 indoor units and 2 outdoor units with 4 indoor units.
4CH video in 1 CH video out.
IP56 waterproof outdoor unit.
Easy to install, and it doesn't have any disturb function.
Specification :

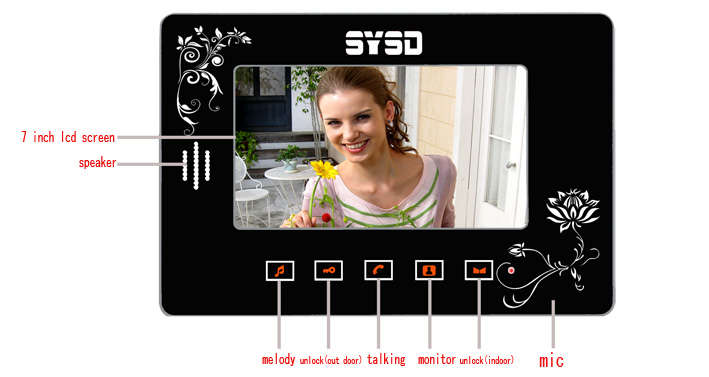

Indoor unit specifications
INDOOR UNIT : 7 Inch
MATERIAL : Plastic body + Metal panel

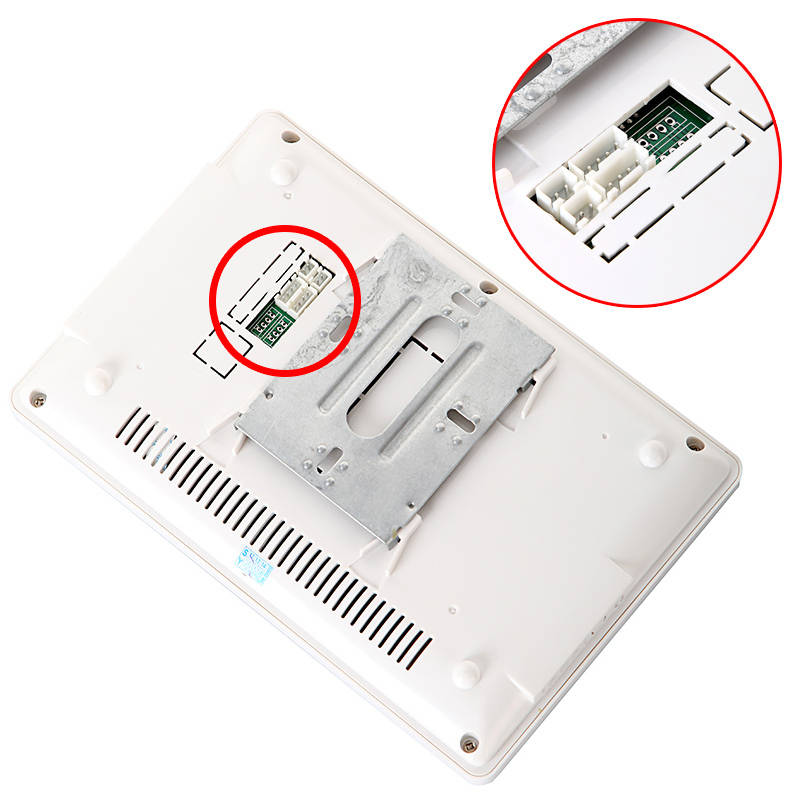

INSTALLATION METHODS : Hanging Installation
SYSTEM PAL/NTSC (OPTIONAL)
VIEWING ANGLE : 65/65/40/65
BRIGHTNESS(cd/m2) : 250
INDOOR UNIT DIMENSION(mm) : 240 × 160 × 26 MM
NET WEIGHT(g) : 540g
POWER CONSUMPTION : 8W
DELAY CALLING TIME(S) : 120S
DELAY MONITORING TIME(S) : 60S
VALID DISTANCE : 50M (4 x 0.65 MM)
Transmitting distance of the Image can reach 200M.
WORKING TEMPERATURE : -10~+50
STORAGE TEMPERATURE : -20~+60

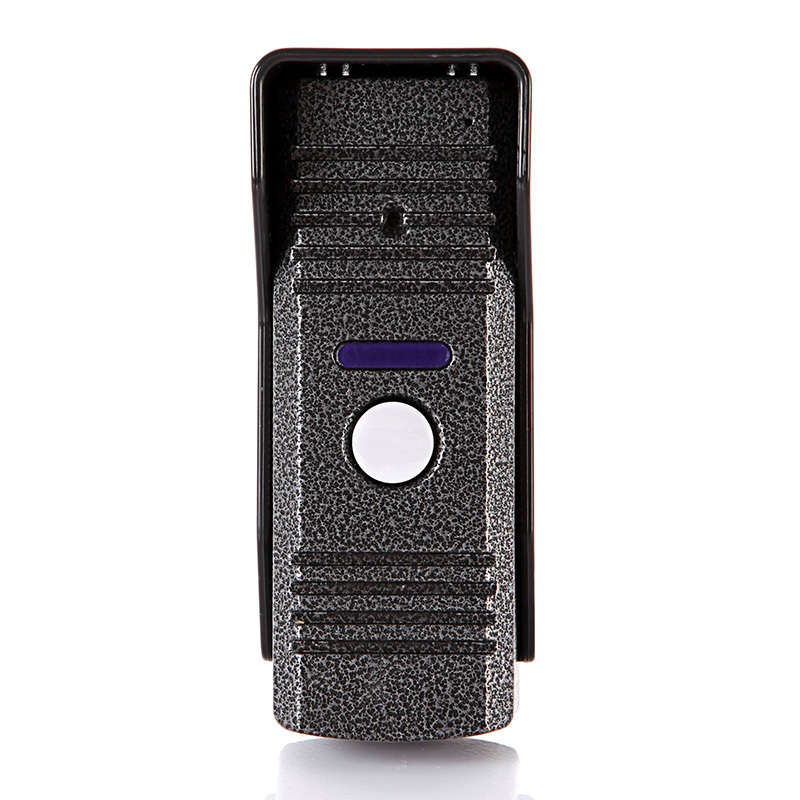

Outdoor unit specifications
OUTDOOR STYLE : MJ
OUTDOOR UNIT DIMENSION(mm) : 182 x 101 x 56 mm
MATERIAL : Plastic Covers
INSTALLATION METHODS : Hanging Installation
NET WEIGHT(g) : 190g
PIXELS PAL : 628x582 NTSC : 510 x 492
POWER CONSUMPTION(W) : 4W
SYSTEM PAL/NTSC (OPTIONAL)
FOCUS(mm) : 3.6mm
VIEWING ANGL : 92
WORKING TEMPERATURE -10~+50
STORAGE TEMPERATURE -20~+60

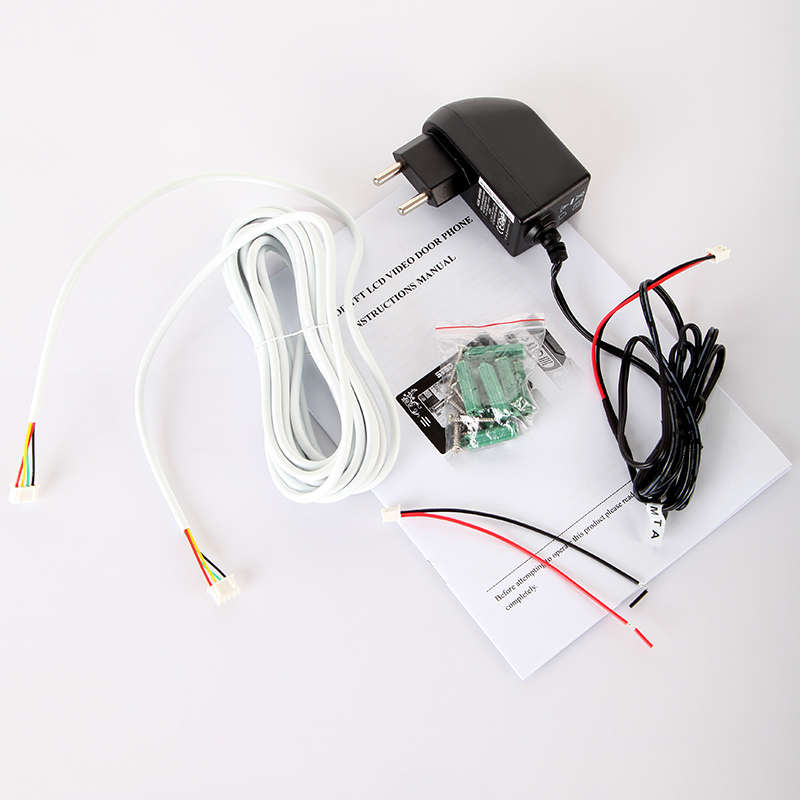

Package Included : →
1 x 7 inch TFT LCD monitor
1 x 420TV Line outdoor camera
1 x DC 15V Switch adapter
1 x Mounting plate
1 x 5M Cable line
1 x Screw kit
1 x Manual
