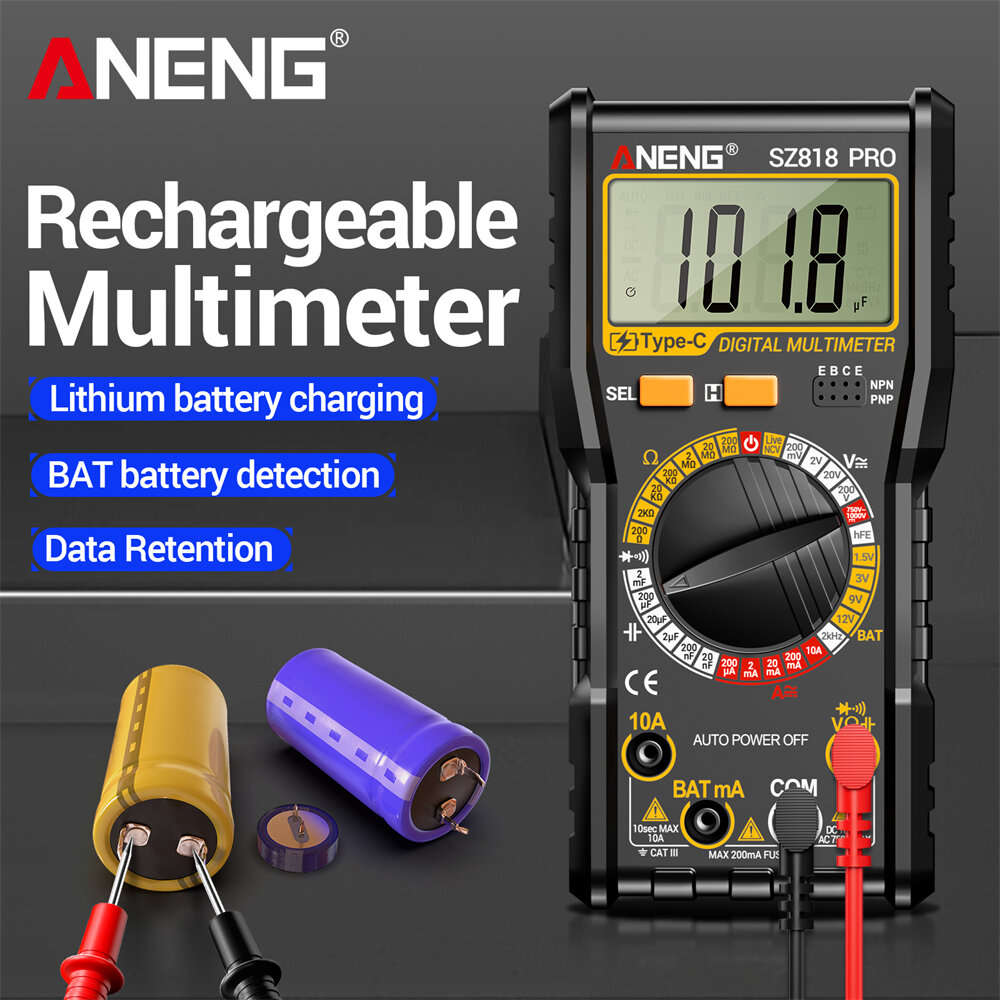

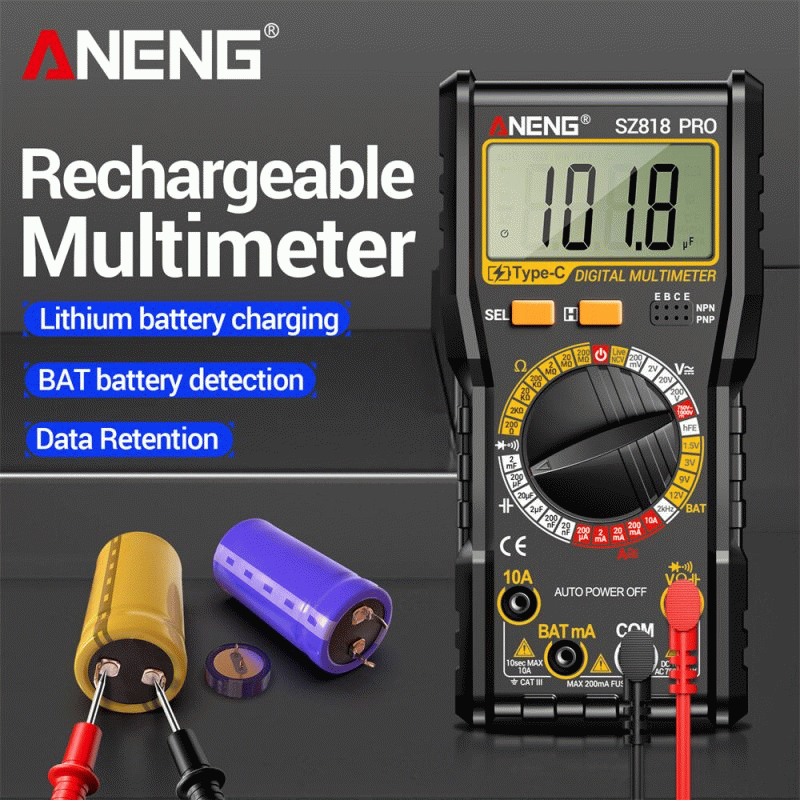

SZ818 PRO - ANENG SZ818 SZ818PRO Digital Multimeter True RMS 1000V Voltage 10A Current Measurement R

Specifications:

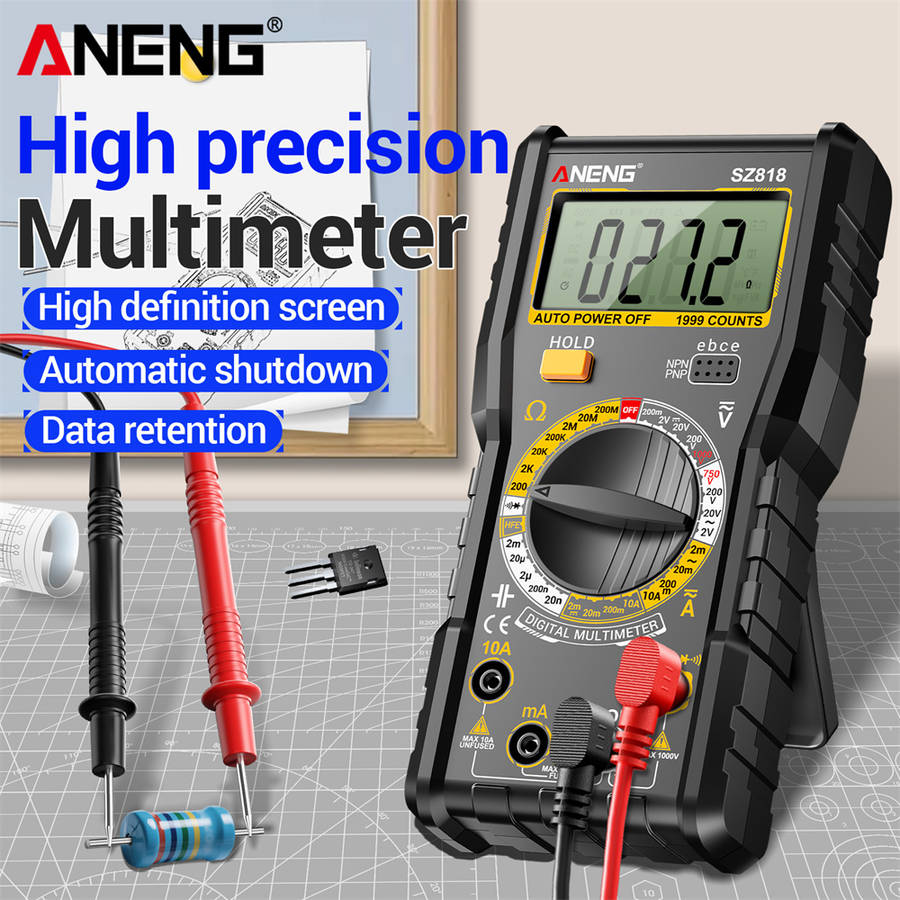

Model: SZ818
Material: ABS
Weight: Approx. 172g
Battery Type: (2) 1.5V AAA Batteries
Display: High-definition digital screen (1999 Counts)
Measurement Functions:
DC Voltage: 0mV—1000V (Resolution: 0.1mV—1V | Accuracy: ±(1.5%+5))
AC Voltage: 0V—750V (Resolution: 1mV—1V | Accuracy: ±(1.8%+8))
DC Current: 0mA—10A (Resolution: 1A—10mA | Accuracy: ±(2.0%+10))
AC Current: 0mA—10mA (Resolution: 1A—10mA | Accuracy: ±(2.5%+10))
Resistance: 0—200M (Resolution: 0.1—100k | Accuracy: ±(5.0%+10))
Capacitance: 0nF—2mF (Resolution: 0.01nF—1F | Accuracy: ±(5.0%+20))
Additional Functions: Diode, Buzzer, hFE Triode, HOLD Data Retention, Low Power Prompt, Back Support Frame, Pen Slot Storage

Model: SZ818 Pro
DC Voltage: 0mV~1000V (Resolution: 0.1mV~1V, Accuracy: ±1.5% reading + 5 words)
AC Voltage: 0mV~750V (Resolution: 0.1mV~1V, Accuracy: ±1.5% reading + 10 words)
DC Current: 0A~10.00A (Resolution: 0.1A~10mA, Accuracy: ±2.0% reading + 10 words)
AC Current: 0A~10.00A (Resolution: 0.1A~10mA, Accuracy: ±2.5% reading + 10 words)
Resistance: 0~200M (Resolution: 0.1~100K, Accuracy: ±5.0% reading + 10 words)
Capacitance: 0nF~2mF (Resolution: 0.01nF~1F, Accuracy: ±5.0% reading + 20 words)
Frequency Measurement: 2kHz (Resolution: 1Hz, Accuracy: ±1.5% reading + 8 words)
Battery Detection: 1.5V/3V/9V/12V
Power Supply: 3.7V 14500 rechargeable lithium battery
Auto Power Off: Shutdown after 15 minutes of inactivity
Maximum Display Count: 1999
Material: ABS
Weight: 191g

Features:
1.Rechargeable Design
Equipped with a Type-C port, the multimeter features convenient lithium battery charging, eliminating the need for disposable batteries.
2.Versatile Measurements
Effortlessly measure DC/AC voltage, current, resistance, capacitance, and frequency, covering a wide range of electronic tasks and troubleshooting needs.
3.Battery Detection Functionality
Supports accurate detection for various battery types including 1.5V, 3V, 9V, and 12V batteries, enhancing usability for testing common household and industrial batteries.
4.Clear Interface and Auto Power-Off
The high-contrast LCD display ensures easy readability, while the auto shut-off feature conserves energy, turning off the device after 15 minutes of inactivity.

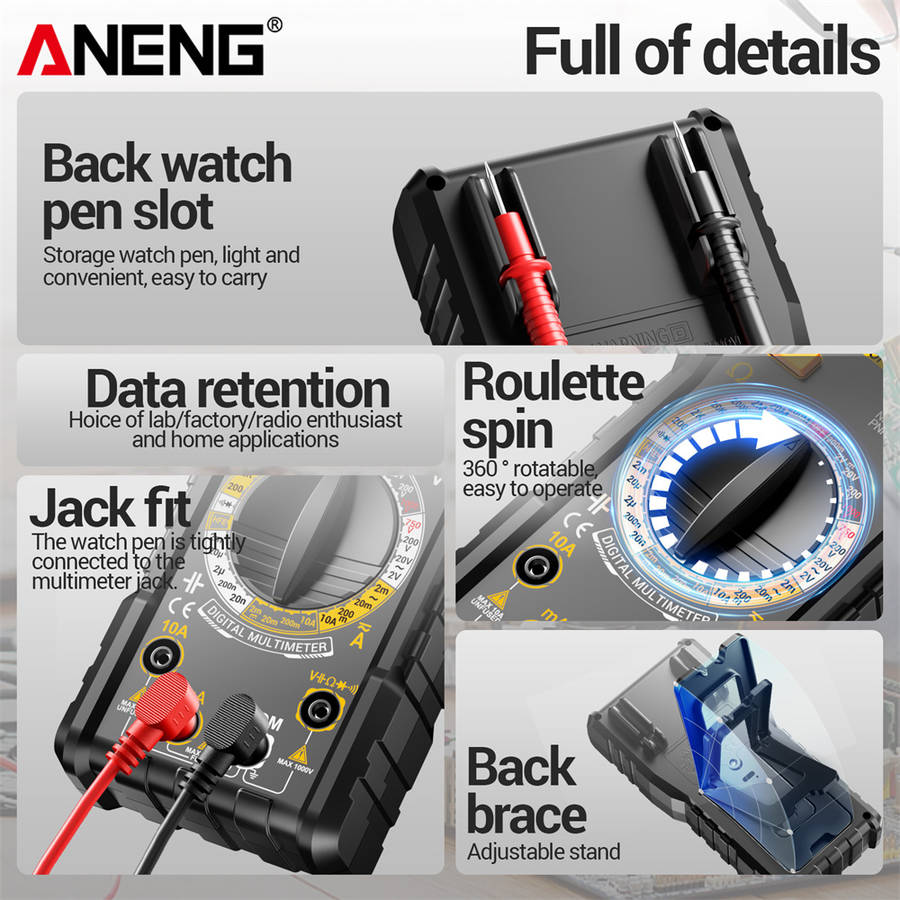

5.Compact and Practical Design
Designed with a back clip for effortless portability and storage, this multimeter is lightweight at just 191g and compact for on-the-go measurements.


Package Included:
SZ818:
1 x Digital Multimeter
1 x Test Pen Line
1 x User Manual
1 x Packing Box

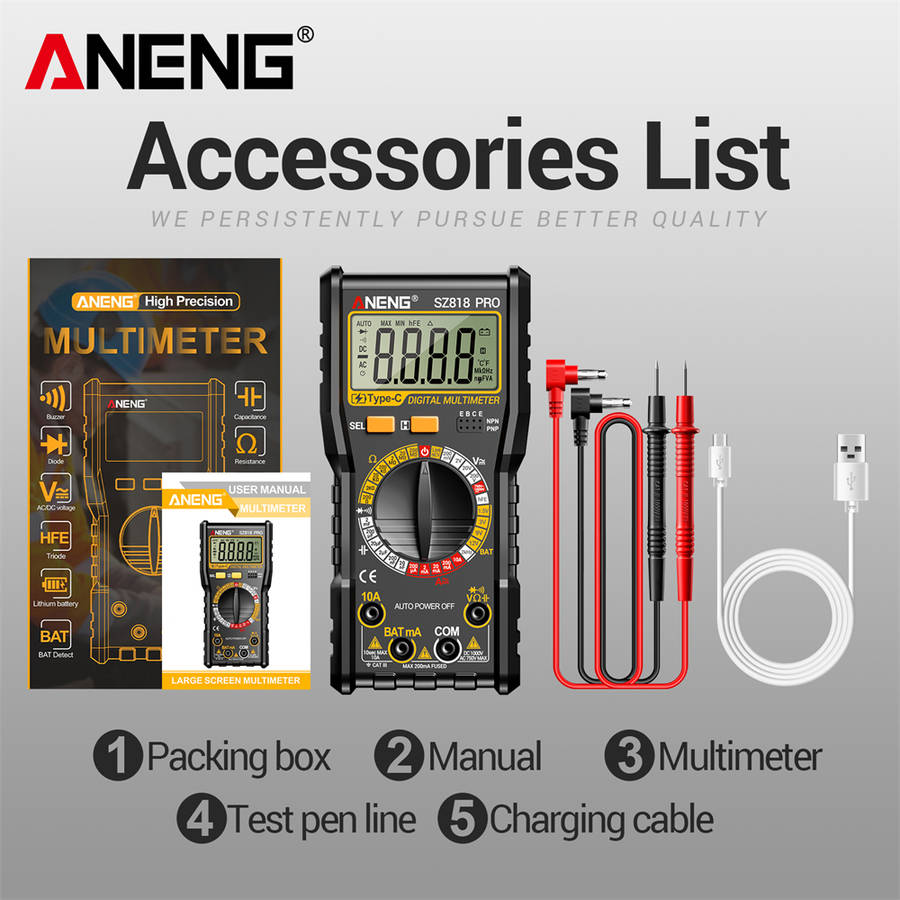

SZ818 Pro:
1 x Digital Multimeter
1 x Test Pen Line
1 x User Manual
1 x Packing Box
1 x Type-C Charging Cable
