Features:
*Non-isolated DC power supply module *Designed according to CE/RoHS *100% full power, high stability output *100%Imported components
*Imported high-quality thermal silica gel potting, waterproof, dustproof and shockproof * Die-cast aluminum alloy shell, small size, simple installation *Internal protection functions such as over current, low voltage, over temperature, short circuit, Input reverse polarity protection, etc. *Wide voltage input, high conversion efficiency of 92%-96% *Long service life of more than 100,000 hours.
Specification:
Brand: SZWENGAO Model:WG-1224S0505 Output current: 5A Input voltage: 12V/24V DC Input voltage range: 8V~40V DC Output voltage: 5V Output power: 25W Peak output power: 130% Voltage adjustment rate: <1% Load regulation rate: <2% No-load current: <20mA

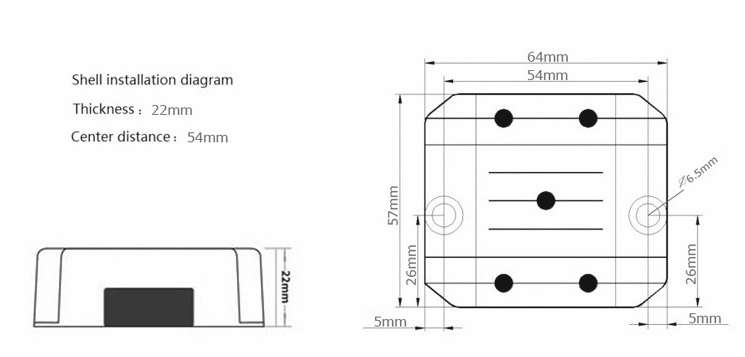

Ripple: <40mV Working temperature: -35ᆪC ~+80ᆪC Size: 64*57.5*22.5mm Package size: 99*83*34mm
Efficiency: >94%
Waterproof rating: IP68 Net weight: 125g Gross weight: 140g Input wiring: red + black - Output wiring: white/yellow + black -
Package included:

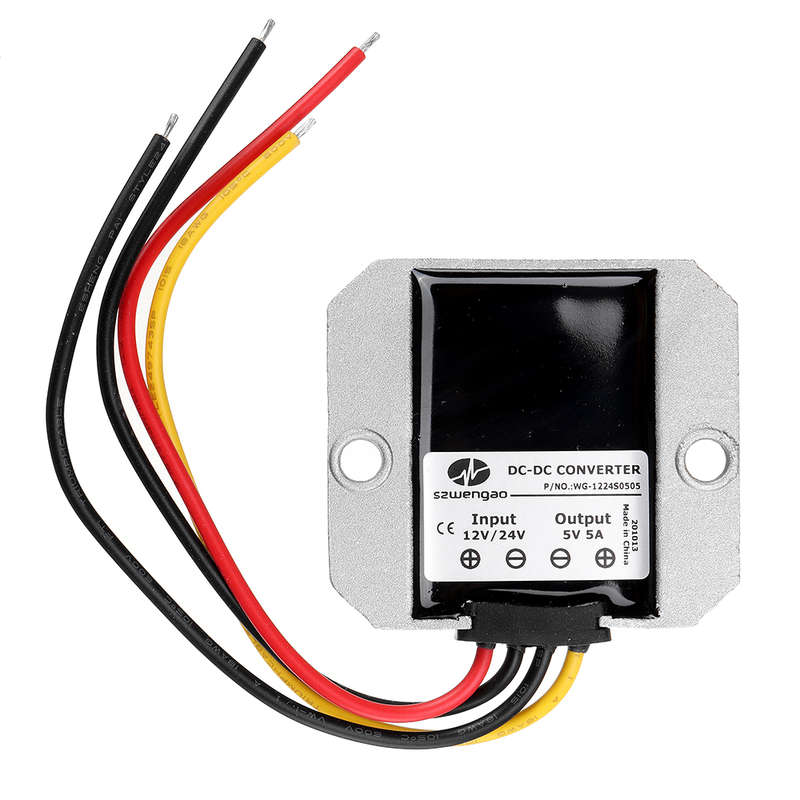

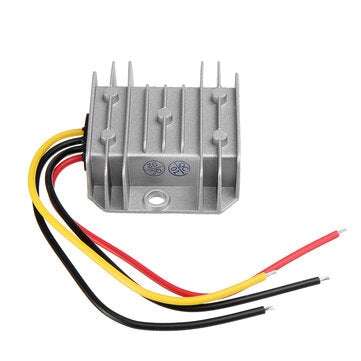

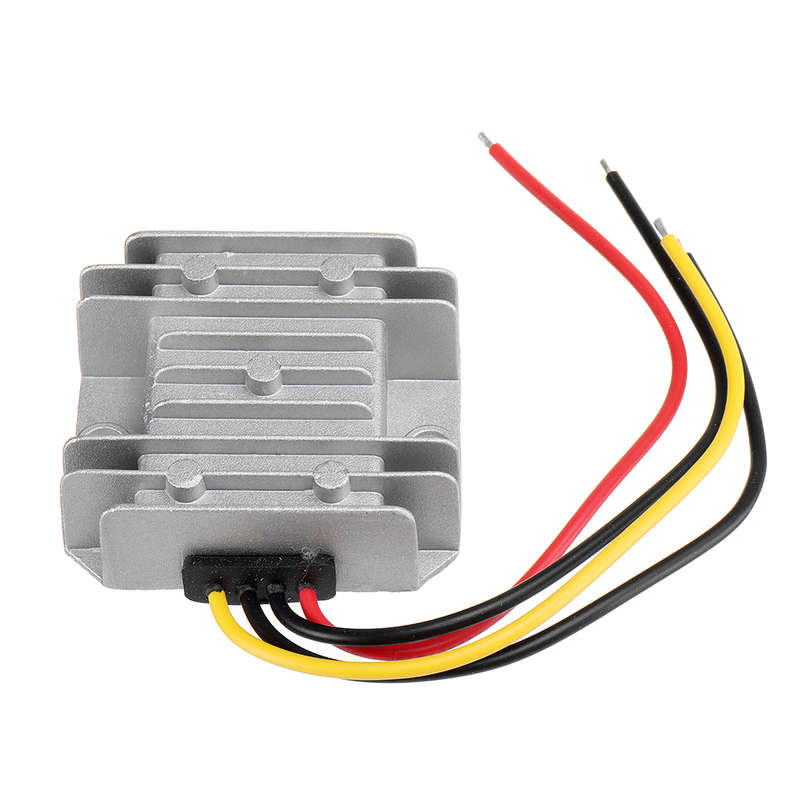

1 x Car Step-down Power Module
