T-80S Test Panel LED Tester Tool for TV/Computer/Laptop Built-in Inverter Repai

Description:

1. Easy and convenient to operate, there is a construction procedure with55 kinds of lvds screen resolutions.

2. With digital number display indicator, you can choose corresponding resolution by swifting button.

3. Make the screen cable in the proper position and prevent the driver board from damage with the LCD power supply short circuit protection function. The digital number display indicator will show 000000 flicker and buzzer will sound if the screen cable is short-circuited. The digital number display indicator will return to normal after short circuit removal (more than 10 minutes short circuit is not allowed).

4. More convenient, durable, convenient, high efficiency and practical.

5. There are a variety of built-in, powerful and applicable standardized test charts.

6. The screen will show the external VGA input signal when the external VGA cable is plugged.

7. Support for testing lcd and led screen with lvds interface from 7 inches to 84 inches.

8. Suitable for lvds interface lcd screen testing with 55 kinds of resolutions.

Features:

1. Each of the 80 real screen parameters has been tested, instead of copying one kind of resolution, three kinds of four kinds of screen parameters and making up 55 or 60 or more kinds of resolution.

2. The minimum resolution is 640x480, the maximum resolution is 3840x2160, which is more than any screen measuring instrument on the market (the maximum resolution of ordinary screen measuring instrument is 1920x1200), (4K screen needs protocol conversion circuit board - purchased separately).

3. LCD screen tester has 14 kinds of professional test pictures, while there are only 8 kinds of 12 kinds of test pictures on the market.

4. The resolution adjustment code of 2021 new LCD screen tester is one bit and ten bit respectively, while the current screen tester on the market is adjusted from small to large, for example, 56. The new version only needs to adjust one bit to 5 and ten bit to 6, while the current screen tester on the market needs to adjust from 1.2.3 to 56 and 56 times.

5. LCD screen tester comes with LED boost board, which is constant current board. The maximum output voltage is 30V and the current is 120mA. However, the current LCD screen tester does not come with constant current board, which is boost board.

6. LCD screen tester LVDS screen line interface professional protection card slot, can be multiple plug, prevent bending needle, and the current market screen tester is not, only double row 30 needle.

7. LCD screen tester adopts full interface circuit short-circuit protection, which opens a new era of LCD screen protection. Not only screen line short-circuit protection, but also interface short-circuit protection of high-voltage board and booster board. Different short-circuit prompts different codes in different places, which fully opens the era of protection. At present, the screen tester on the market only has screen line protection, which can't really avoid screen burning.

8. LCD screen tester has the function of quick setting of resolution code and automatically saving memory. If you turn off the power and turn it on, the screen parameters of the last code will be automatically restored. However, the screen testers on the market do not have this function.

9. LCD screen tester supports our developed LVDS to 4K adapter board and LVDS to EDP adapter board.

10. LCD screen tester PCB circuit board adopts military grade circuit board design, capacitor adopts solid-state capacitor closed inductor.

11. LCD screen tester can directly adjust the resolution code in the power on state, and the signal source chip will reset automatically. For another code on the market, you have to press the power switch, turn it on and off again, and reset manually to display the test scree.

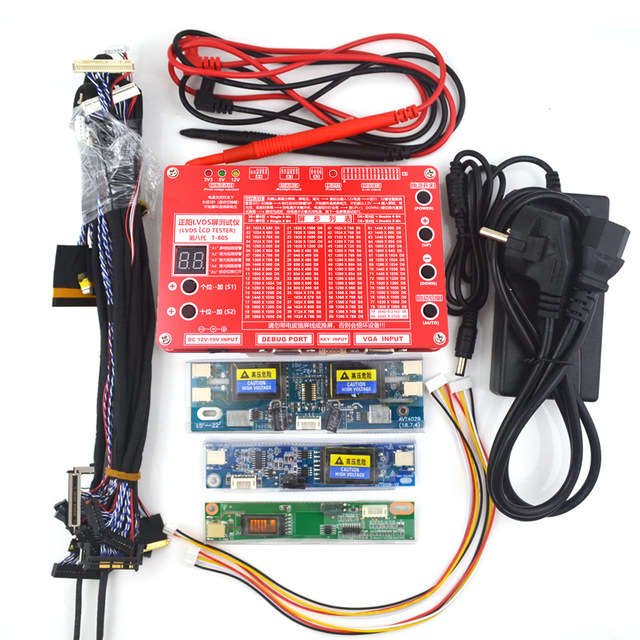

Package Included:

Suit one:

1 X T-80s liquid crystal tester

14 X Test line

1 X 12V4A adapter

3 X high pressure plate

Suit two:

1 X t-80s liquid crystal tester

14 X Test line

1 X 12V4A adapter

2 X high pressure plate

Note:

1. Please do not plug in the device, plug it in first and then plug it in. Otherwise, it may burn your device or screen. Burning the device will charge a certain cost. The screen voltage interface is fully protected, but if the screen voltage is set incorrectly, to burn the screen, that is, if it is a 3.3v or 5v screen, the screen voltage is set to 12v, the screen will be Directly burned, please don't forget to pay attention to this friend, There is one more special reminder please use 12v-19v 4a or 5a power supply to power supply. Do not exceed 19v. Otherwise, the screen will be burned.
