T-Energy ESP32 With 18650 Battery Power Supply Holder | Electronics Component

New 5 available
Only 5 left – grab it before it’s gone!
R239.96
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
CB04
Bob Shop ID
647556989

Description

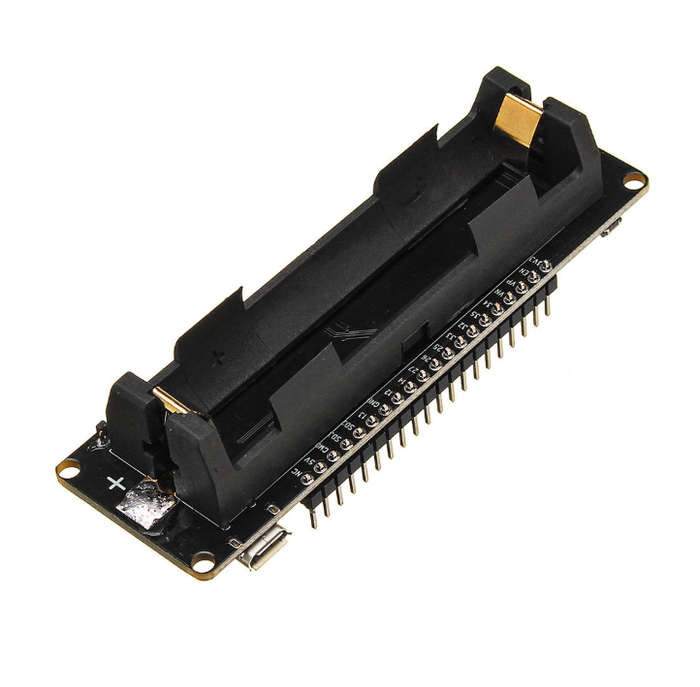

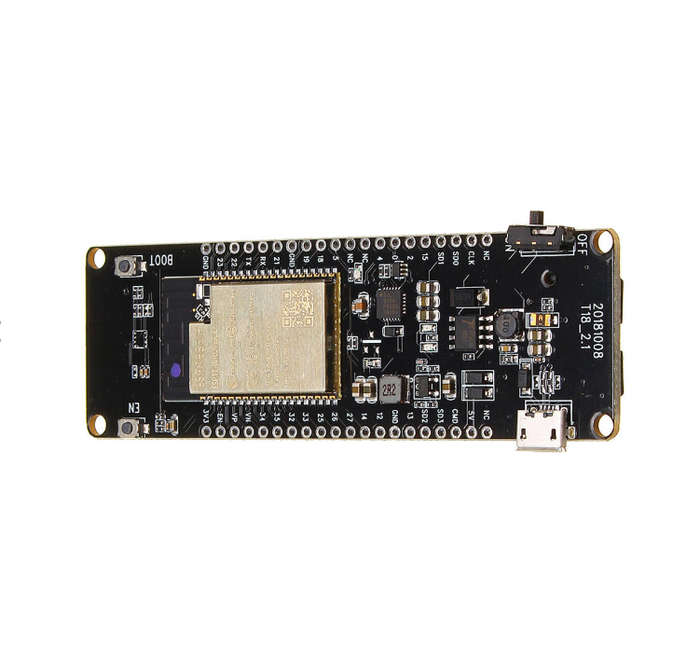

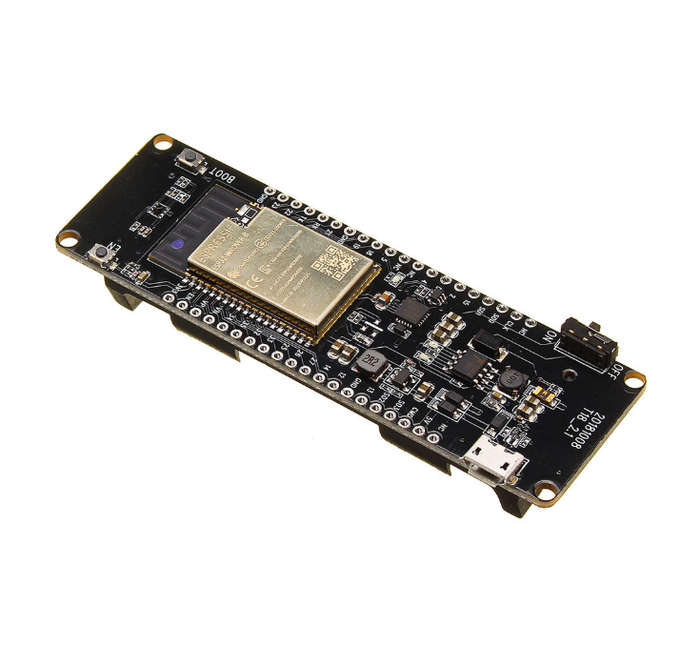

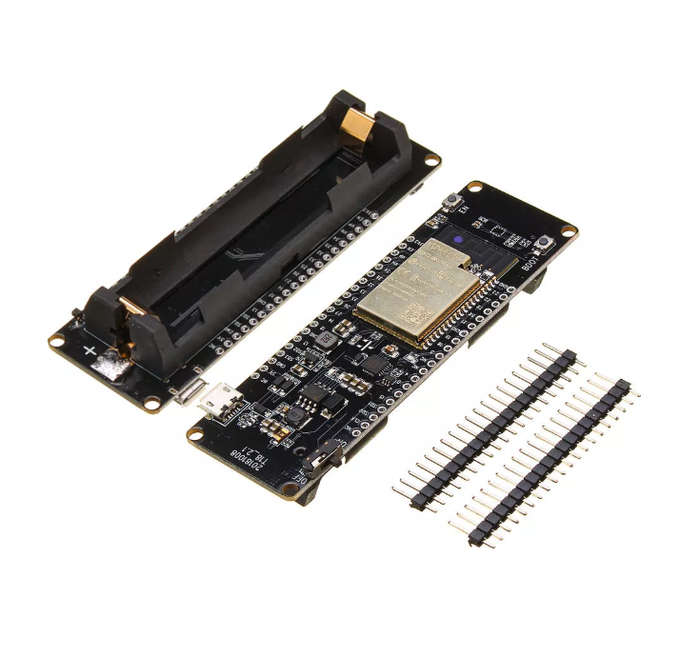

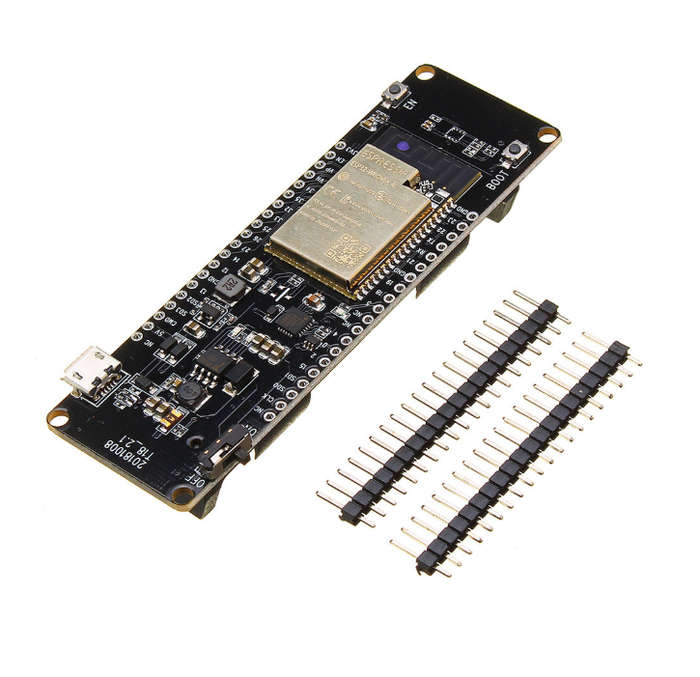

ESP32 (8Mbyte version) with a 18650 battery holder, get going with that low power WiFi or BLE development you've been dreaming about.

Specifications

Github: https://github.com/LilyGO/LILYGO-T-Energy

Schematics

T-Energy Pin out

HardwareSpecifications
ChipsetESPRESSIF-ESP32-WROVER 240MHz Xtensa® dual-core 32-bit LX6 microprocessor
FLASHQSPI 4MB  Flash / 8MB  PSRAM
SRAM 520 kB SRAM
KEYReset, BOOT
SwitchBAT switch
Power indicator lampRed
USB to TTLCP2104
Modular  interfaceSD card, UART, SPI, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, capacitor
touch sensor, ADC, DACLNA  pre-amplifier
On-board clock40MHz crystal oscillator
Working voltage2.3V-3.6V
Working currentabout 40mA
Sleep current1mA
Working temperature range-40? ~ +85?
Size91.10mm*32.75mm*19.90mm
Power SupplySpecifications
Power SupplyUSB 5V/1A
Charging current1000mA
Battery3.7V lithium battery
Wi-FiDescription
StandardFCC/CE/TELEC/KCC/SRRC/NCC
protocol802.11 b/g/n/e/i (802.11n, speed up to150Mbps)A-MPDU and A-MSDU polymerizationsupport 0.4?S Protection interval
Frequency range2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power22dBm
Communication distance300m
bluetoothDescription
ProtocolMeet bluetooth v4.2BR/EDR and BLE standard
Radio frequencyWith -98dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequencyCVSD&SBC audio frequency
Software specificationDescription
Wifi ModeStation/SoftAP/SoftAP+Station/P2P
Security mechanismWPA/WPA2/WPA2-Enterprise/WPS
Encryption Type AES/RSA/ECC/SHA
Firmware upgradeUART download/OTA(Through network/host to download and write firmware)
Software DevelopmentSupport cloud server development /SDK for user firmware development
Networking protocolIPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
User ConfigurationAT + Instruction set, cloud server, android/iOSapp
OSFreeRTOS
Add to cart
