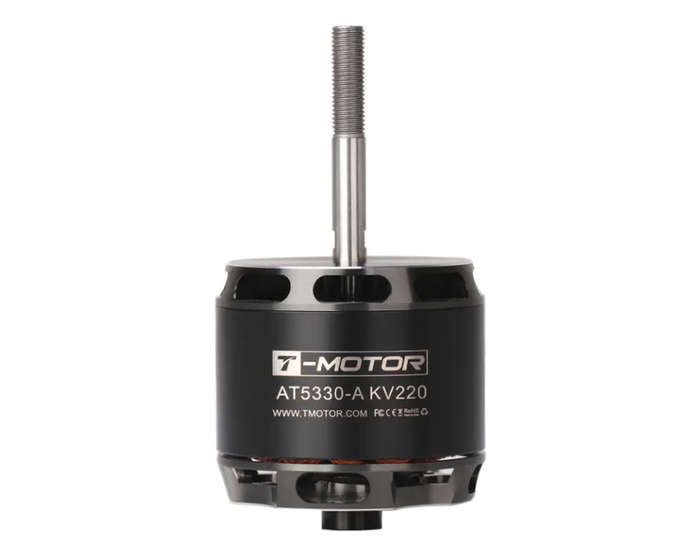

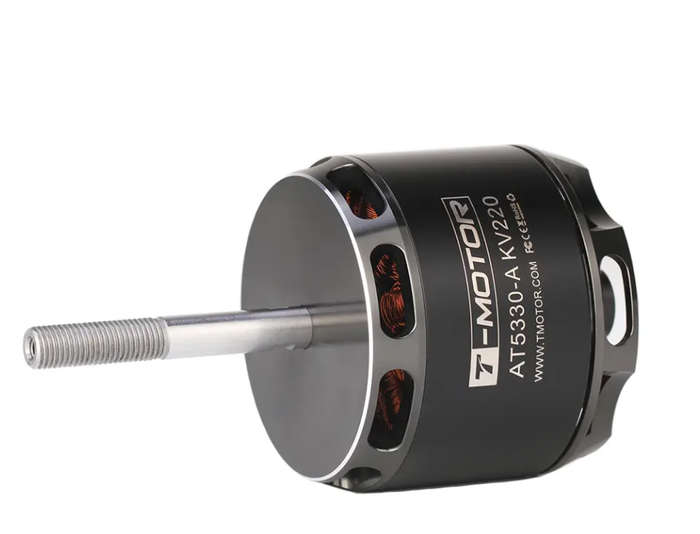

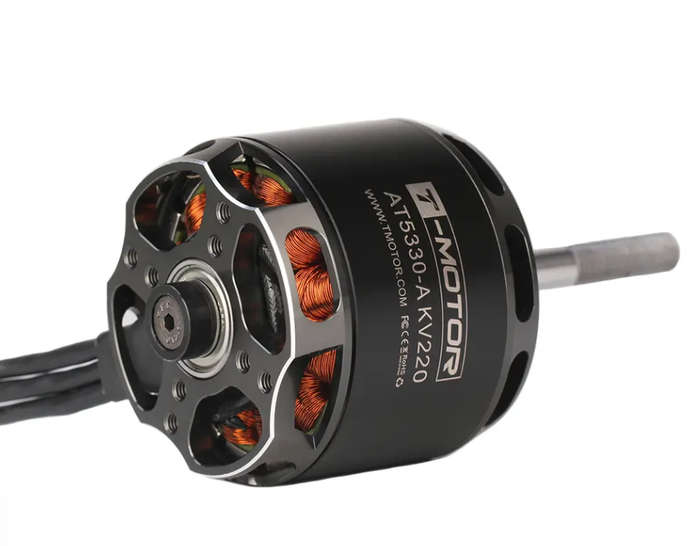

Name: T-Motor AT5330A 25-30CC VTOL Fixed Wing Aircraft Shaft Motor KV220
SKU: TMO197
Price: 7211.25 ZAR
Availability: InStock

T-Motor AT5330A 25-30CC VTOL Fixed Wing Aircraft Shaft Motor KV220

New

2 available

Only 2 left – grab it before it’s gone!

R7,211.25

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

FlyingRobot440

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

TMO197

Bob Shop ID

651854738

About T-MOTOR AT5330A 25-30CC VTOL Fixed Wing Aircraft Shaft Motor

T-Motor AT5330A is a hi-end motor suitable for VTOL UAV fixed wing larger airplanes of the Outdoor category.

features with excellent heat dissipation structure which ensures the powerful flight. 3500W maximum power which give strong power for 30CC RC airplane.

It is support 6-12s lipos with T-Motor AT115A.

AT5330A Highlights:

1 Thanks to the solid structure and high-quality materials, the AT53 series engines provide unparalleled reliability and durability, allowing you to fly with confidence.

2.AT53 series engines use imported high-quality bearings and are designed with structural strength to be durable and reliable. Ensuring optimal engine performance and sustainable service life.

3.The steel shaft is divided into front-out shaft and rear-out shaft to adapt to various installation methods and meet the needs of different application scenarios.

Packing List Includes:

1x T-MOTOR AT5330A Motor

1x Hardware pack

Matching Guide:

AT 115A ESC

Technical Drawing

.jpg

Specification

Model No./ Kv	AT5330 KV220	Magnet Temperature Resistance Grade	150
Motor Size (mm)	63*117.3	Lead (mm)	Enameled Wire 100
Stator Technology	Anti-rust treatment; 180°C high temperature-resisting coatings	Enamelled Wires Temperature Resistance Grade	Class C 220
Configuration	12N14P	Coil Withdraw Voltage	1000V/5s
Shaft Diameter (mm)	IN:10 OUT:8	Rotor Dynamic Balance Standard	5mg
Bearing	Imported 6800/6900ZZ	IP	IP35

KV Value	KV220	Battery (lipo)/Voltage Recommendation	12S(4.2V/Sl)/42-52V
Idle Current (18V)	3.0A	ESC Recommendation	AT115A (6-12S)
Peak Current (A)	75A/Continuous180s	Propeller Recommendation	18-20
Max. Power (W)	3600W/Continuous 180s	Motor Weight (g)	Weight (incl. cables) 685g
In ternal Resistance (m)	24	Package Weight (g)	900g

Sternthrustmotor	AT5330 KV220	VTOL Motor	V605 KV210
Sternthrustpropeller recommendation	18-20	VTOL Prop	V22*7.4
SternthrustESC recommendation	AT115A(6-12S)	VTOL ESC	FLAME 80A HV
Sternthrustbattery(Lipo)/voltage recommendation	12S(4.2V/Sl)/42-52V	VTOL Battery (Lipo)/ Voltage	12S(4.2V/Sl)/42-52V
Sternthrustpullrecommendation(kg)	4-6	VTOL Thrust per Motor	4.5-6
MTOW (Quad) (kg)	18-24

Test Data

Item No.	Prop	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Inputpower (W)	Efficiency (g/W)	Operating Temperature ()
AT5330 KV220	18*10	40%	44.20	1665	0.41	5.44	3555	240.50	6.92	77
		45%	44.17	2066	0.51	7.04	3949	310.84	6.65
		50%	44.11	2568	0.62	9.44	4390	416.30	6.17
		55%	44.03	3202	0.78	13.06	4885	574.96	5.57
		60%	43.98	3754	0.93	16.21	5277	712.74	5.27
		65%	43.92	4285	1.07	19.45	5642	854.21	5.02
		70%	43.82	4763	1.29	24.48	6040	1072.85	4.44
		75%	43.73	5409	1.49	29.84	6448	1304.90	4.15
		80%	43.62	6067	1.68	35.33	6803	1540.79	3.94
		90%	43.40	7404	2.08	47.89	7488	2078.38	3.56
		100%	43.07	8276	2.61	65.34	8075	2814.25	2.94
	19*10	40%	44.18	1936	0.48	6.20	3509	273.70	7.08	91
		45%	44.13	2403	0.59	8.01	3899	353.38	6.80
		50%	44.04	2967	0.73	10.86	4324	478.30	6.20
		55%	43.74	3702	0.92	15.10	4807	660.32	5.61
		60%	43.65	4324	1.07	18.49	5185	806.94	5.36
		65%	43.61	4958	1.22	21.93	5538	956.50	5.18
		70%	43.52	5729	1.41	27.05	5934	1177.09	4.87
		75%	43.43	6581	1.63	32.99	6340	1433.07	4.59
		80%	43.31	7329	1.82	38.51	6664	1668.08	4.39
		90%	43.06	8964	2.25	52.12	7313	2244.06	3.99
		100%	42.76	10518	2.73	68.92	7898	2947.27	3.57
	20*10	40%	44.06	2201	0.54	6.71	3471	295.50	7.45	102
