Name: T-Motor V605 KV210 12S Vtol Brushless Drone Motor
SKU: TMO196
Price: 6048.75 ZAR
Availability: InStock

T-Motor V605 KV210 12S Vtol Brushless Drone Motor

New

8 available

R6,048.75

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

FlyingRobot440

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

TMO196

Bob Shop ID

651854734

Technical Drawing

.jpg

Specification

Model No./ Kv	V605 KV210	Magnet Temperature Resistance Grade	Class E 150
Motor Size(mm)	68.8*39.9	Lead(mm)	14AWG*600
Stator Technology	Anti-rust treatment;180°C high temperature-resisting coatings	Enamelled Wires Temperature Resistance Grade	Class C 220
Configuration	24N28P	Coil Withdraw Voltage	500V/5s
Shaft Diameter(mm)	IN:6 OUT:6	Rotor Dynamic Balance Standard	5mg
Bearing	Imported 626ZZ	IP	IP45

KV Value	KV210	Battery (lipo)/Voltage Recommendation	12S(4.2V/Sl)/42-52V
Idle Current(18V)	1.6A	ESC Recommendation	FLAME 80A 12S V2.0
Peak Current(A)	70A/Continuous 180s	Propeller Recommendation	V22*7.4
Max. Power(W)	3200W/Continuous 180s	Motor Weight(g)	340g (385g Weight (incl.cables))
Internal Resistance(m)	48	Package Weight(g)	550g

Test Data

Item No.	Prop	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Inputpower (W)	Efficiency (g/W)	Operating Temperature )
V605 KV210	T-MOTOR V22*7.4	40%	47.90	2898	0.73	7.21	3444	345.38	8.39	98 (Ambient Temperature: 22)
		42%	47.88	3200	0.80	8.20	3592	392.66	8.15
		44%	47.86	3464	0.86	9.09	3762	435.10	7.96
		46%	47.83	3722	0.93	10.29	3908	492.24	7.56
		48%	47.80	4059	1.02	11.56	4063	552.31	7.35
		50%	47.77	4385	1.09	12.94	4226	618.17	7.09
		52%	47.75	4663	1.16	14.12	4352	674.42	6.91
		54%	47.72	4995	1.24	15.46	4488	737.53	6.77
		56%	47.70	5266	1.31	16.76	4618	799.58	6.59
		58%	47.67	5525	1.36	18.00	4734	858.07	6.44
		60%	47.63	5788	1.44	19.46	4859	927.06	6.24
		62%	47.60	6153	1.52	21.06	4980	1002.58	6.14
		64%	47.58	6455	1.60	22.61	5107	1075.70	6.00
		66%	47.53	6771	1.68	24.51	5241	1164.96	5.81
		68%	47.49	7049	1.75	26.19	5363	1243.96	5.67
		70%	47.45	7383	1.84	28.11	5487	1334.04	5.53
		80%	47.23	9108	2.28	38.69	6025	1827.49	4.98
		90%	46.95	10917	2.80	52.16	6561	2448.72	4.46

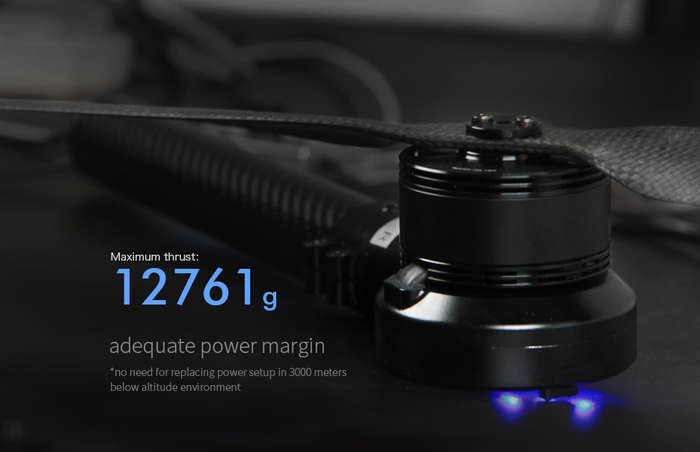

		100%	46.60	12761	3.26	68.30	7036	3182.62	4.01
Notes：Motor temperature is the motor surface temperature aftering running at 80% for 10 mins. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation. )

Packing List

.jpg
