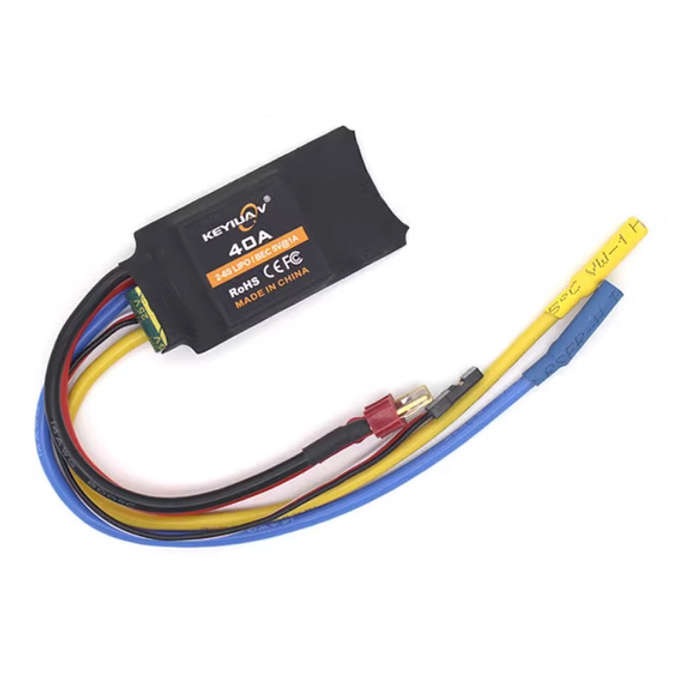

T Plug - Brushed Double Way 40A 2-6S 6.-25V Esc 4.0mm Banana Plug For Rc Car Boat Vehicle Models Hig

Description:

Suitable for high current motors such as 380, 390, 540, 550, 775, 795, 895 series. This product has a feature: silent, which can eliminate the buzzing sound of the motor during low-speed control as much as possible! parameter:

Motherboard size: length 59mm * width 30mmO weight: 30g

Voltage: 6-25V, current 40A (maximum 6S, over 6S will burn)

The signal of the remote controller (PWM1500us/±50us at the middle point), the minimum travel range of 800-1100 and the maximum of 1900-2200 are automatically adapted, beyond the ESC lock.

With BEC5V1A (for example, when using 4S power supply, it is recommended that the receiver use an external UBEC module) with runaway protection (the value of the corresponding joystick channel's runaway protection should be in the middle position)

There is a power-on prompt (you will hear the motor 'beep' to prompt power-on).
