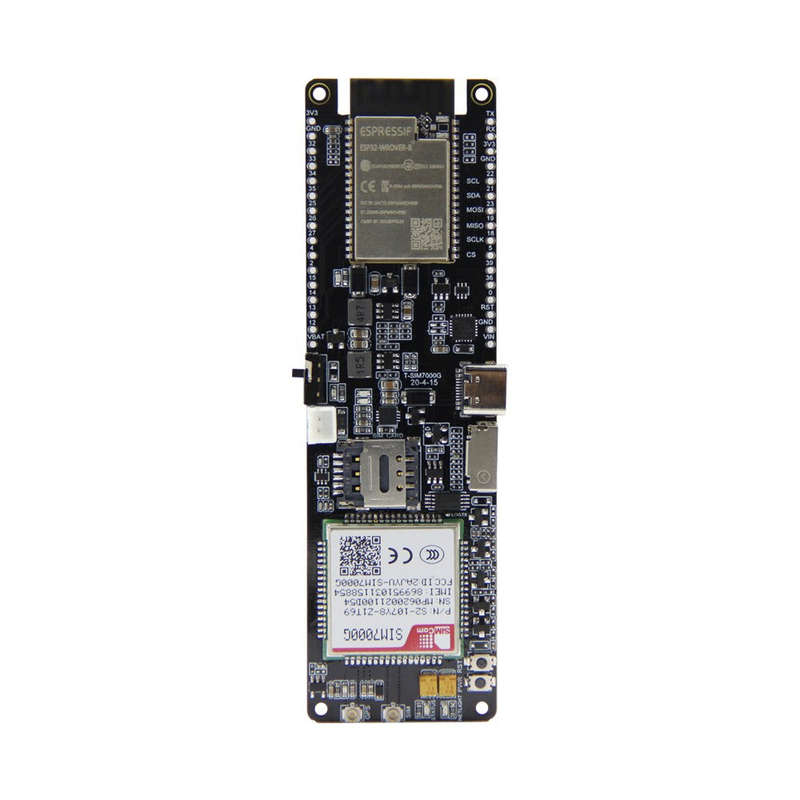

T-SIM7000G SIM Development Board ESP32 Wireless Module.

The LILYGO T-SIM7000G is an ESP32 development board with a SIM7000G chip. This adds LTE (4G), GPS, and GPRS to your board. This means that with this board you can send SMS, get location and time using GPS, and connect it to the internet using a SIM card data plan. This board doesn't support phone calls

T-SIM7000G SIM Development Board ESP32 Wireless Module Software Specification:

Wi-Fi Mode

Station/SoftAP/SoftAP+Station/P2P

Security Mechanism

WPA/WPA2/WPA2-Enterprise/WPS

Encryption Type

AES/RSA/ECC/SHA

Firmware Upgrade

UART download/OTA (Through network/host to download and write firmware

Software Development

Support cloud server development /SDK for user firmware development

Networking Protocol

IPv4IPv6SSLTCP/UDP/HTTP/FTP/MQTT

User Configuration

AT + Instruction set, cloud server, android/ios app

OS

FreeRTOS

T-SIM7000G SIM Development Board ESP32 Wireless Module Hardware Specification:

Main chip

ESP32

Module

ESP32-WROVER-B, SIM7000G

Interface

USB, SD Card, Solar Input interface

Flash Memory

4M Flash / 8M PSRAM

Button

Reset, Power switch

USB to TTL

CP2104

Car Clock

40MHz

SIM Card Size

Nano

Antenna types

SIM Card SIM Antenna

GPS Antenna

Operating Temperature Range

-40-85 degrees

Product Size

111mm * 37mm * 20mm

Product Weight

50g

T-SIM7000G SIM Development Board ESP32 Wireless Module Power Specification:

Working Voltage

5v input

Solar input voltage range

4.4-6v

Working Current

About 200mA

Charging Current

780mA

Battery Model

18650

Battery Holder Model

18650 battery holder

JST Connector

2pin 2mm

USB

TYPE-C 3.0

T-SIM7000G SIM Development Board ESP32 Wireless Module Wi-Fi

Standard

FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC

Protocol

802.11 b/g/n(802.11n, speed up to150Mbps)A-MPDU and A-MSDU polymerization, support 0.4S

Frequency

range 2.4GHz~2.5GHz(2400M~2483.5M)

Transmit Power

22dBm

Communication distance

300m

T-SIM7000G SIM Development Board ESP32 Wireless Module Bluetooth:

Protocol meets Bluetooth

v4.2BR/EDR and BLE standard

Radio Frequency

with -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH

Audio Frequency

CVSD&SBC audio frequency
