T100 WIFI Aluminum Smart Tank Chassis Robot Car DIY Kit (COLOR.: SILVER)

20 available / new

R1,427.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3512

93.42 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643389758

SELECTED OPTION:
COLOR.: SILVER

- ForNodeMcu Lua + WiFi Motor shield, please go to

Some useful download links:
1. MotorDataSheetforTank/CarChassis: 2. Chassis Installation: 3. Software manumal: 4. Android App: 5. iOS App: 6. FirmWare: 7. Motor shield: 8. NodeMCU:
Features:

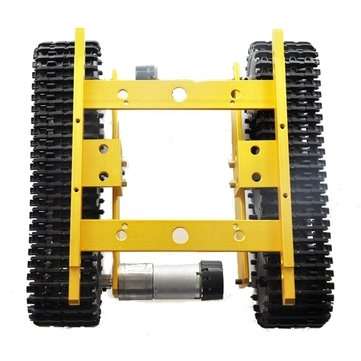

Name: T100 smart tank chassis
Material: Aluminum
Oxidation: Yes
Color: Gold or silver (optional)
Track: Plastic
Size: about 200 x 190 x 80 (L x W x H)
Operating voltage: 9V-12V

Motor parameters:

Name: 25mm brushless DC motor (with Hall sensors code disk)
Output rate: 150 &pm; 10% rpm
Load current: 200mA (Max)
Stall current: 4500mA (max)
Stall Torque: 9.5kgNaN
Load speed: 100 &pm; 10% rpm
Load moment: 3000gNaN
Load current: 1200mA (Max)
Load noise: 56dB
Operating voltage: 9V
Shaft extension Dimensions: 14.5mm
Axial clearance: 0.05-0.50mm
Screw size: M3.0
Shaft: phi4mm, D3.5
Code disk parameters: two pulses / revolution

Package included:

1 x Chassis bracket
1 x Track (pair)
2 x Driving wheels
4 x Wheel drive
1 x Motor (pair) (with encoder)
