T8 Lead screw With Nut 500mm Horizontal

T8 Lead screw With Nut 500mm Horizontal

5 available / new
Only 5 left – grab it before it’s gone!
R450.64
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
3DP-0135
Bob Shop ID
643440105
These are 4 start 8mm pitch leadscrews with a 200 steps per revolution motor and the 16x micro stepping on most common 3D printers. This adds up to 400 steps per mm 3200 steps/ 8mm per rev = 400 steps /mm the same as most 3d Printer lead screws use.

Specifications:

Lead screw:

  • Material: stainless steel
  • Diameter: 8mm
  • Lead: 2mm
  • Total Length: 500mm

Screw nut:

  • Material: brass
  • Diameter: 8mm

Mounted ball bearing:

  • Material: zinc alloy
  • Bore diameter: 5mm
  • Hole diameter: 8mm
  • Total length: 55mm
  • Height: 29mm

Shaft coupling:

  • Material: aluminum
  • Shaft: 6.35mm to 8mm
  • Length: 24mm
  • Diameter: 18mm

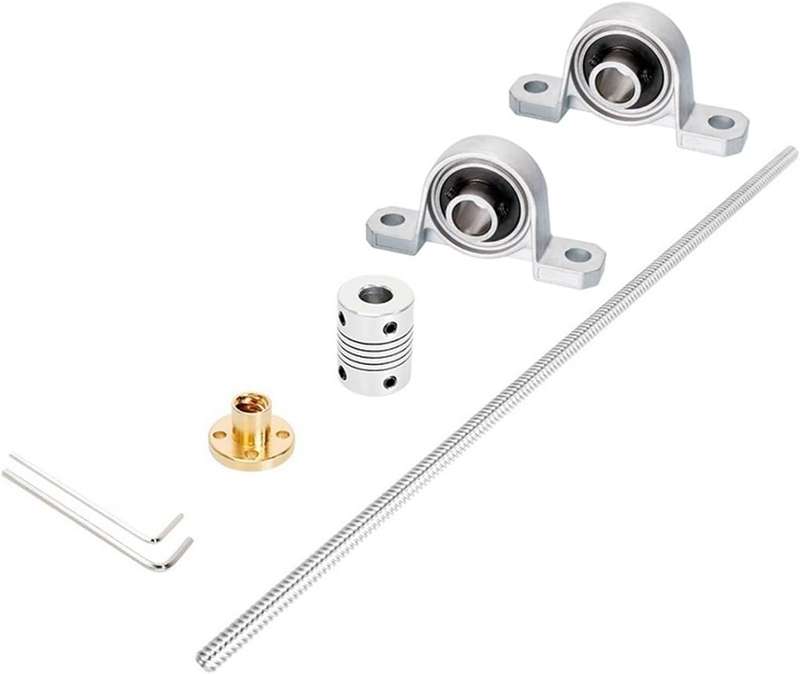

  • Quantity: 1 set (1 screw 1 Screw nut 2 Mounted ball bearing 1 shaft coupling)

Features

  • Screw mainly used in stepper motors, machine tools, and other CNC equipment.
  • Screw directly connected to bearing.
  • Suitable for Industrial automation equipment, stepper motor rails, 3D printers, engraving machines, XYZ modules, slider, lifts etc.

How to install:

  • Put screw nut onto the Lead screw.
  • Then the 2 Mounted ball bearing separately, install at both ends of the Lead screw.
  • According to the size of you need to adjust the distance between the nut and Mounted ball bearing.
  • Put shaft coupling into the Lead screw beside the Mounted ball bearing.
