Table or Floor Plate 120 x 120 | 3 Slot Blank | HTECH

Wall Plate Dual 120 x 120 with 6 Blank Slots for Keystone Inserts

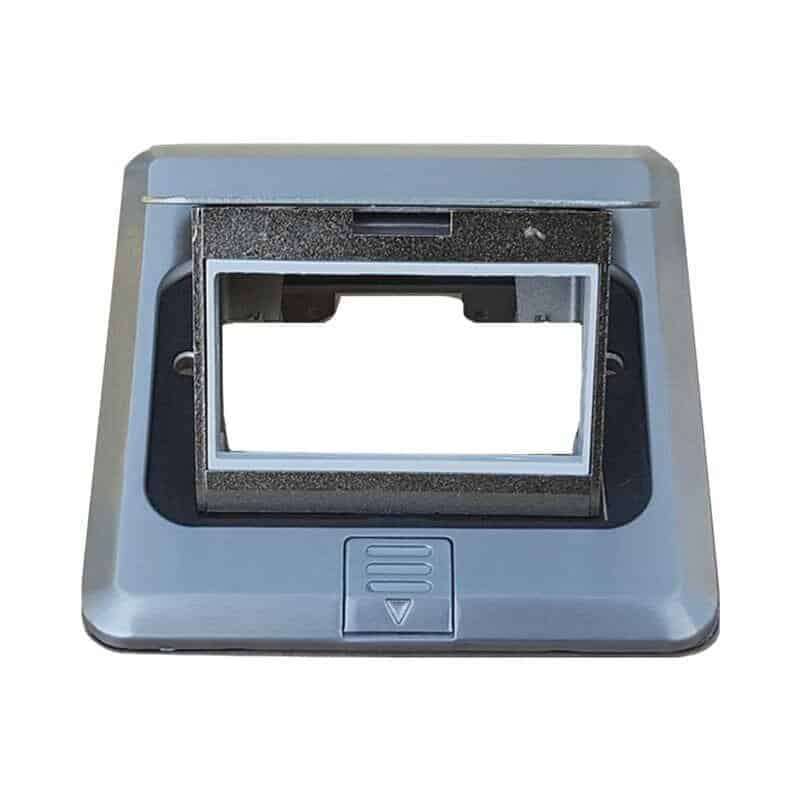

Note: this popup Floor or Table top plate is empty and does not contain any inserts. Fits SA standard wall plug

Specifications (this product)

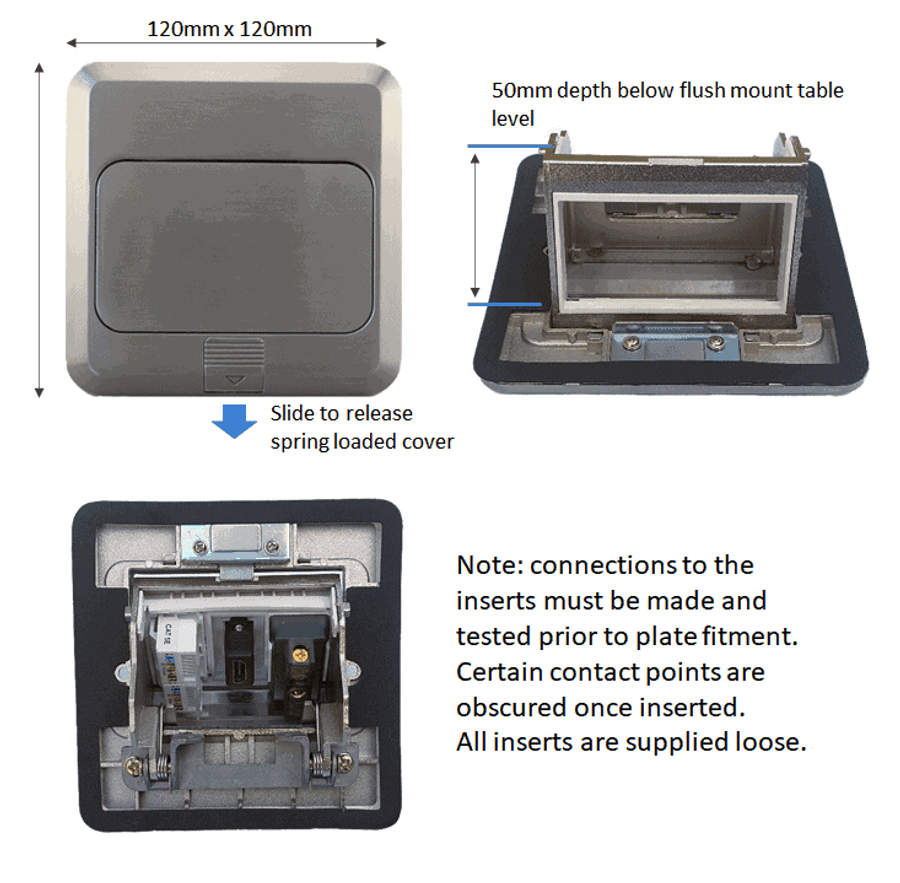

• Size:                           120 x 120 x 60 (HxWxD) in mm
• No of Insert Slots:  3 (shop inserts[click here])
• Colour:                     White. (Images have been deliberately darkened)
• Material:                  Stainless Steel, Brushed finish / Flame Retardant PVC
• Purpose:                   Fits a standard SA Double 4x4 floor or table housing. Conference rooms etc.

Available Options in our range of HTECH Base Plates & Inserts

Step 1| HTECH Base Plate Options. (Depth is keystone insert dependent)

1. Trunking Wall Plates: 86 x 86mm, 1, 2 & 3 slot
2. Wall Plates: 2 x 4, 120 x 70 mm, 1, 2 & 3 slot
3. Wall Plate: 4 x 4, 120 x 120mm, 6 slot
4. Extended Plate, 195 x 70mm, 6 slot
5. Floor / table Top Plate: 120 x 120mm , 3 slot. Depth 60mm (this product is Floor Plate + 3 Slots)

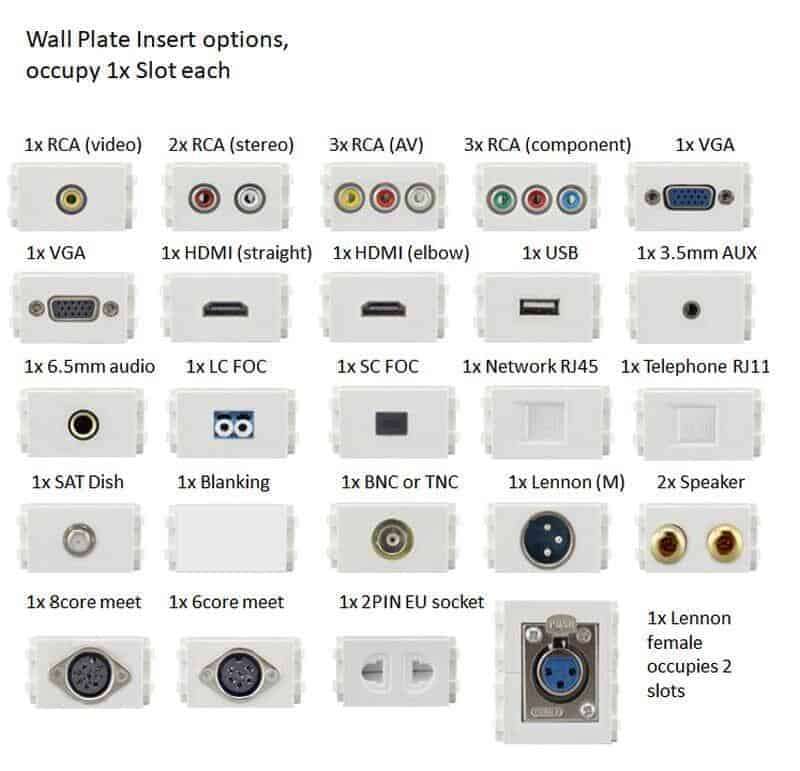

Step 2| HTECH Keystone Insert Options for Trunking, Wall & Floor Plates

1. HDMI — female to female barrel. a. Straight or b. elbow 90° (for limited space)
2. RCA — a.Digital audio_yellow , b. Stereo_red + white, c. Component_green+red+blue, d. AV_yellow+red+white,
3. VGA - female to female barrel, straight
4. 5mm aux or headphone, 3pin terminal block
5. 5mm headphone guitar, 3pin terminal block
6. Meeting 6 core, 6pin solder terminals
7. Meeting 8 core, 8pin solder terminals
8. Audio Speaker Banana connections, 2pin solder connections
9. XLR / Lennon Male and Female, 4pin solder connections
10. Speakon Female, 4pin spade or solder connections
11. RJ11 telephone, quick snap connector
12. RJ45 single + dust cover Ethernet LAN, Networking, Data, Internet etc. quick snap connector
13. RJ45 2x dual, Ethernet LAN, Networking, Data, Internet etc. quick snap connector
14. USB 3.0 for data, female to female barrel
15. USB 2x dual for Charging only, 4 pin solder connections
16. F type for satellite dish connections DSTV etc. 2pin solder connections
17. TV for terrestrial antenna, 2pin solder connections
18. SC for Fiber Optic connections, female to female barrel
19. LC for Fiber Optic connections, female to female barrel
20. Power for 2pin EU round connections to 230V AC, 3pin terminal block

Step 3 | Fill any inserts shortfalls with Blanking Inserts

1. Blanking Inserts to fill the gaps
2. Make anything not listed using blank plates for example fuse holders and Led indications
