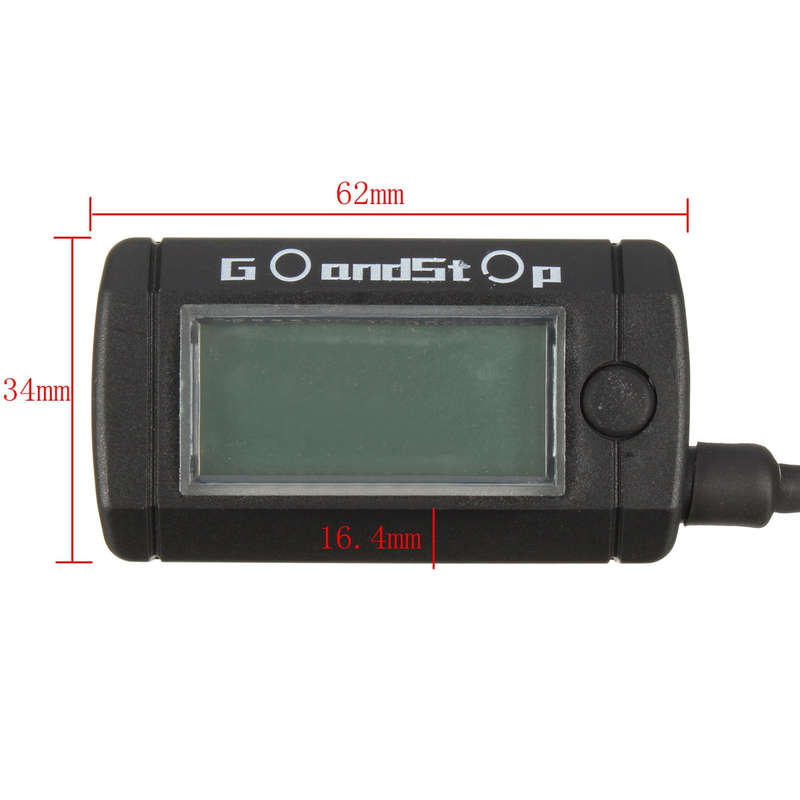

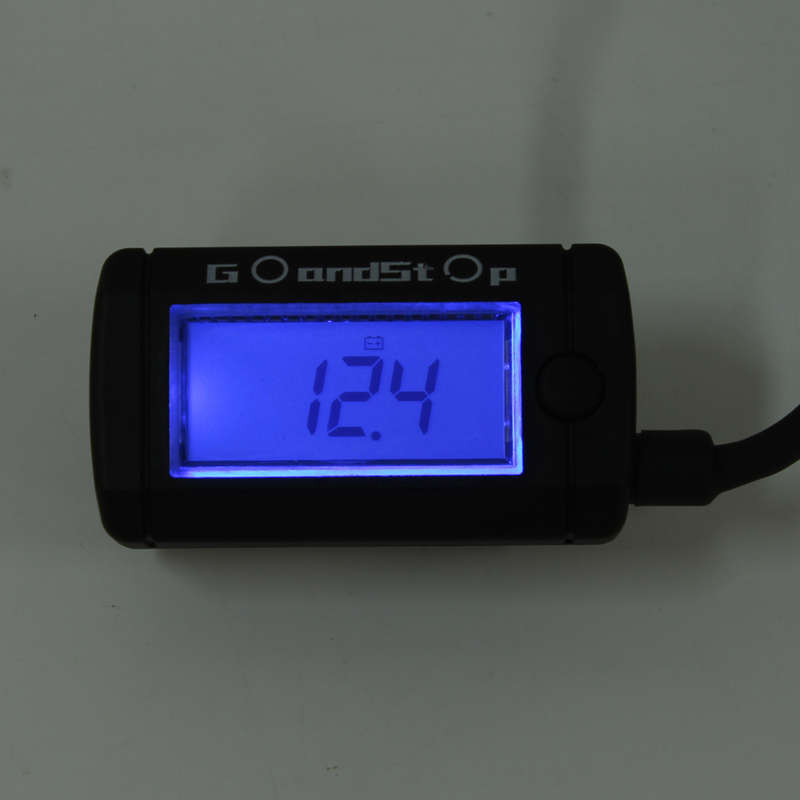

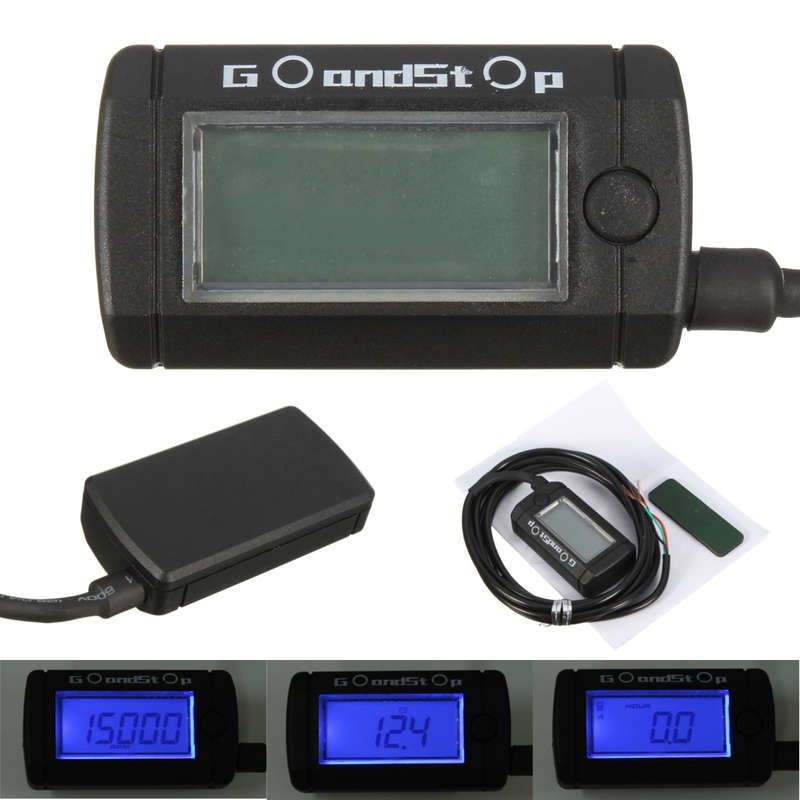

Base Function: Digital Tachometer: Display range: 0-15,000RPM Display internal: <0.5 MAX RPM Record: Display range: 0-15,000RPM RPM Input Pulse: Display range: 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6 Total engine Hour Meter: Display Range: 0-99999H Display Unit: 1H Hour Meter A/B: Display Range: 000.0-999.9H Effective Temperature Range: -10a - +60a Meter Size: 62x34x16.4mm (LxWxH) Cable Length: approx. 195cm Voltage Display Range: 0-24V

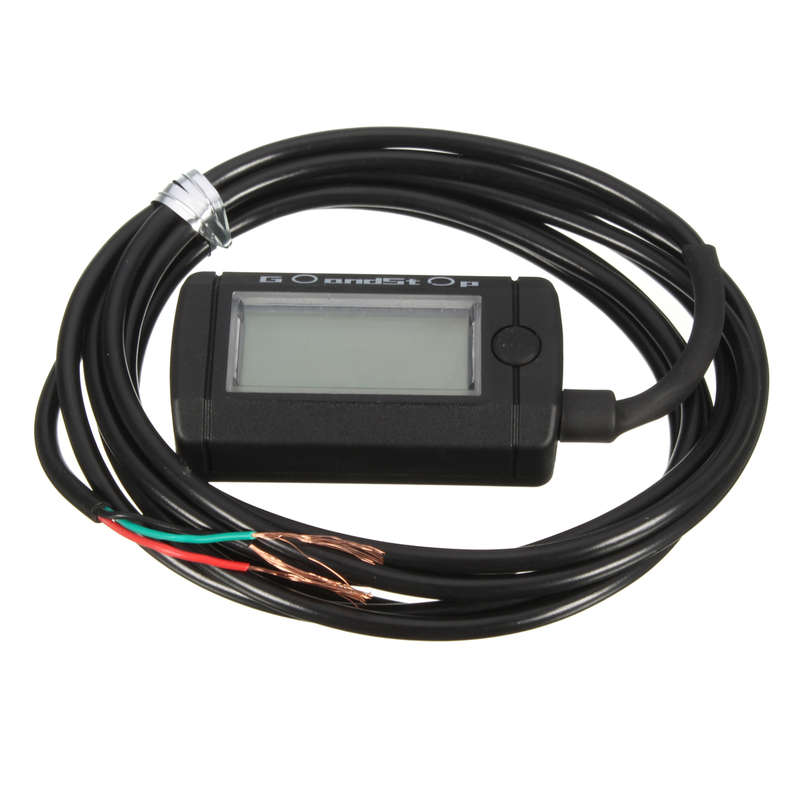

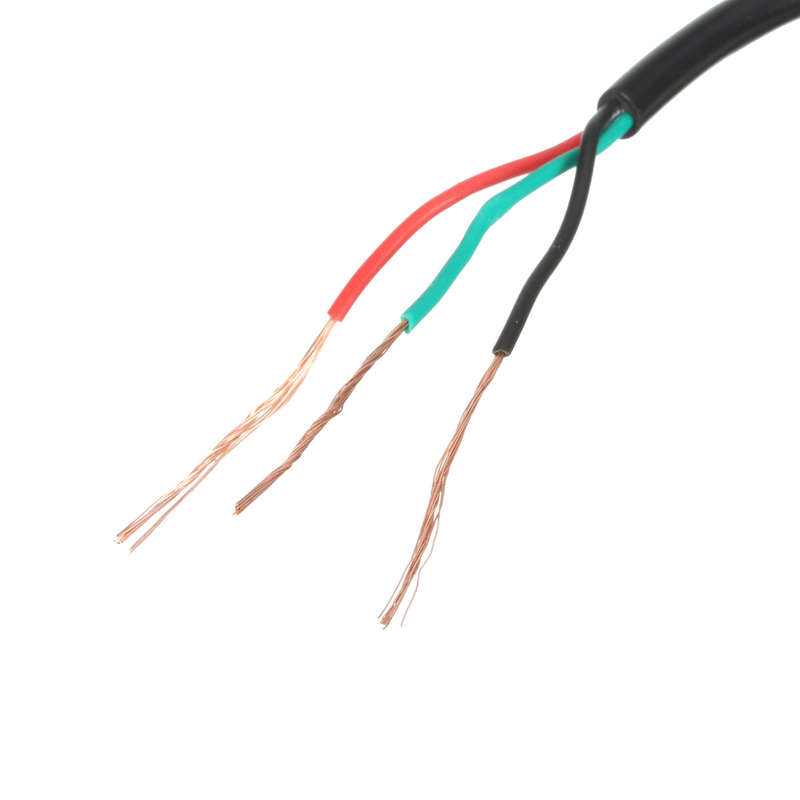

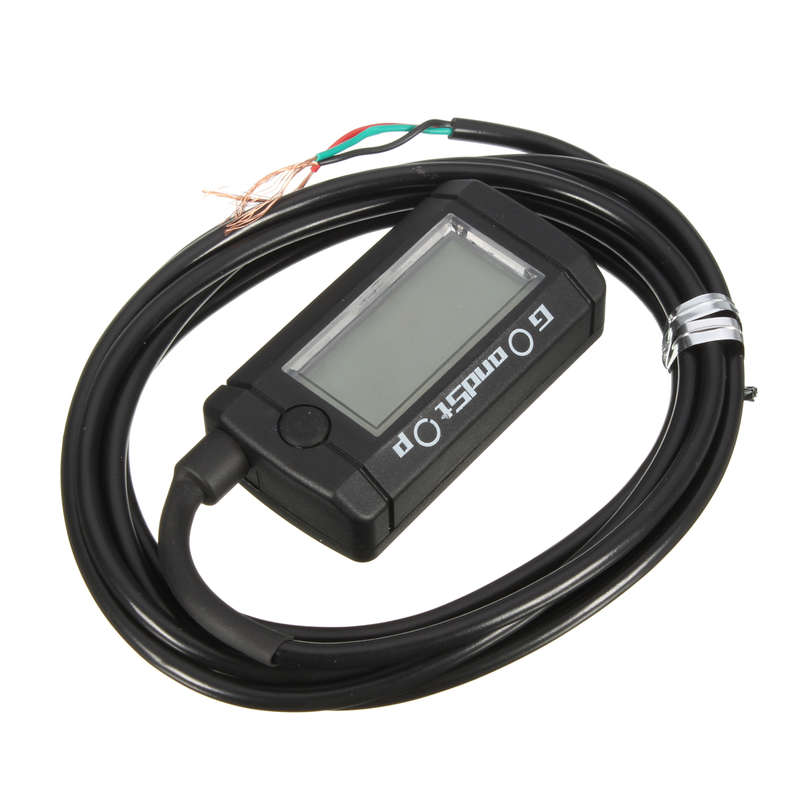

Wiring Installation Instruction: Red: connect to positive of power Black: Ground wire, connect to the switch key of motorbike Green: connect to the RPM signal
Function Switch Instruction: The meter will turn on when you connect the red and black cable. The meter will turn off if you turn off your bike key which connect to power switch.
MAX.Record Screen Set: Press the button one time to the Max.Record screen. In Max.Record screen, press the button one time to turn to the main screen. Press the button for 3 seconds to reset the Max.Record.
The Button Function Instruction: Press the button one time to the Max.RPM record. Press the button one time to change from the Max.RPM record to the total engine hour meter. Press down the button for 3 seconds to reset the Max.RPM record. Press the button one time to change from the total engine hour meter to the hour meter A. (Note: When the hour meter will start to count time, the RPM symbol will flash every 0.5 second) Press the button one time to change from the hour meter A to the hour meter B. (Note: When the hour meter will start to count the time, the RPM symbol will flash every 0.5 second) Press down the button for 3 seconds to reset the hour meter A. Press the button one time to change from the hour meter B to the main screen. Press down the button for 3 seconds to reset the hour meter B.
RPM Pulse Setting: In main screen, press down the button for 3 seconds to enter the RPM pulse setting. EX. You want to change the current setting pulse from 1 to 2. In main screen,
press the button one time to enter the RPM pulse setting. EX. The original setting is 0.5(4C-1P). The piston type can be set is: 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6 EX. The ignition angle setting is changed from 1 to 2 Press down the button for 3 seconds to back the main screen.
Note: Most of the 4-stroke bikes with one single piston are igniting every 360 degree once,
so the setting should be the same as the bikes with 2-stroke and one piston engine. 1.Instruction is not included,professional installation is highly recommended. 2. Please check the size measurement chart carefully before making payment. 3. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm) 4. The color of the actual items may slightly different from the listing images due to different computer screen=

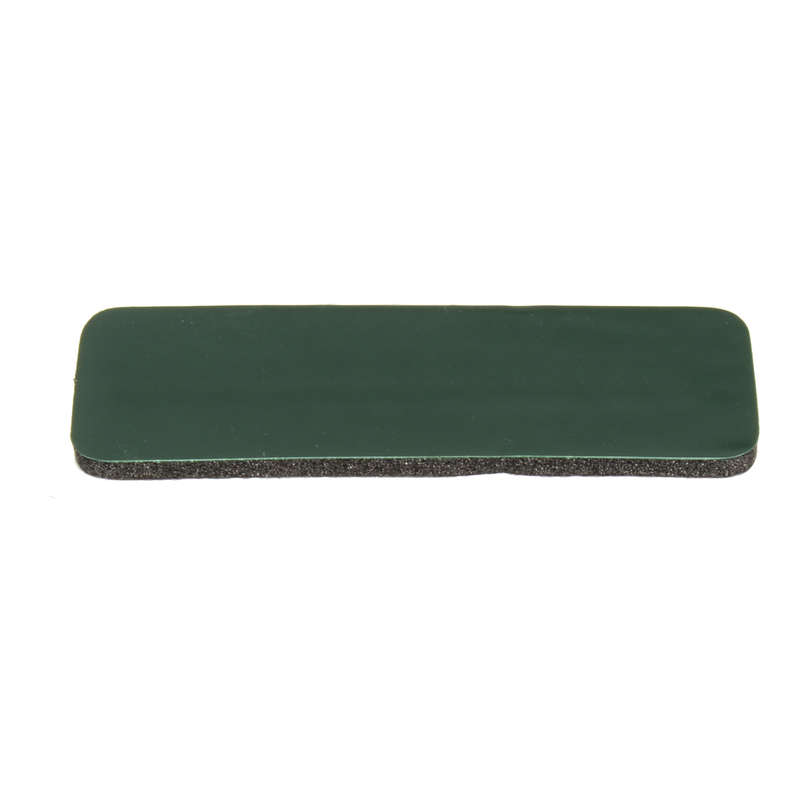

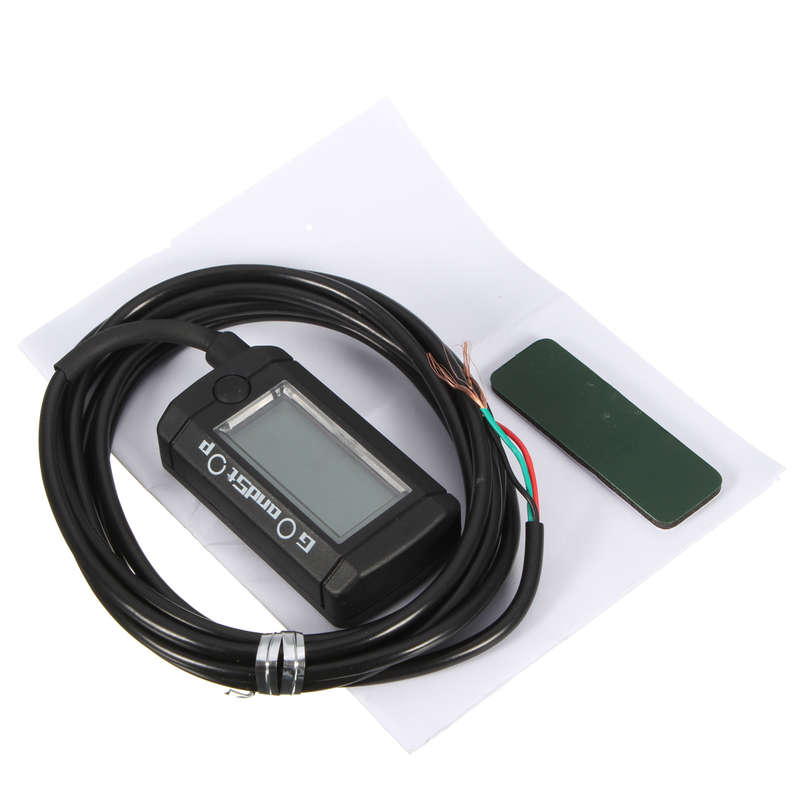

Package Included: 1 X LCD Meter 1 X Sticker 1 X User Manual(English)
